RM3660EC _V1 General _080956 MAINTENANCE _0392879 FRONT WIPER RUBBER A

MAINTENANCE FRONT WIPER RUBBER INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:: Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 85214B 1.INSTALL WIPER RUBBER (for Type A)

0,0 0,0 false

Install in this Direction

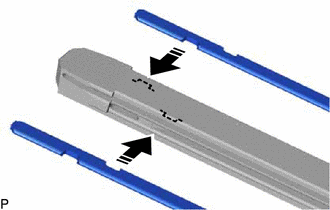

Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.

NOTICE:: ·

Align the protrusions on the wiper rubber and the notches of the backing plates.

·

Align the curves of the backing plates and the windshield glass.

0,0 0,0 false

Install in this Direction

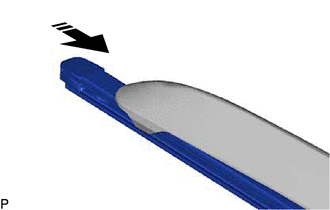

Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

NOTICE:: Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

Hide Display 85214B 2.INSTALL WIPER RUBBER (for Type B)

0,0 0,0 false

Install in this Direction

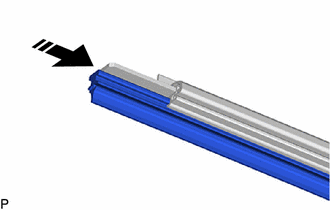

Install the wiper rubber to the front wiper blade as shown in the illustration.

0,0 0,0 false

Install in this Direction

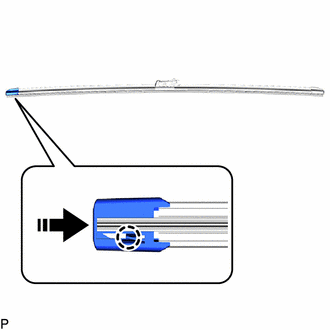

Engage the claw to install the clip as shown in the illustration.

Hide Display 85222A 3.INSTALL FRONT WIPER BLADE (for Type A)

0,0 0,0 false

Install in this Direction

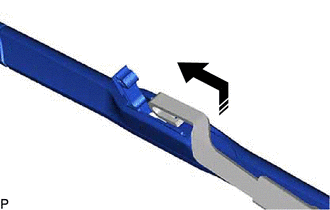

Install the front wiper blade to the front wiper arm as shown in the illustration.

1.5,1 2.25,1.333 true 1.667,2.583 2.417,2.917 true 2.458,2.854 2.771,3.052 0.313,0.198 10 false *a 2.271,1.271 2.583,1.469 0.313,0.198 10 false *a

*a	Holder
	Install in this Direction

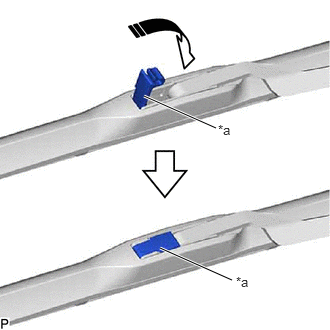

Rotate the holder of the front wiper blade as shown in the illustration.

Turn the ignition switch (for Gasoline Model) to ON (IG) or power switch (for HV Model) On (IG).

Operate the windshield wiper switch assembly to return the front wiper arm and blade assemblies to their original position.

Turn the ignition switch (for Gasoline Model) or power switch (for HV Model) off.

Hide Display 85222A 4.INSTALL FRONT WIPER BLADE (for Type B)

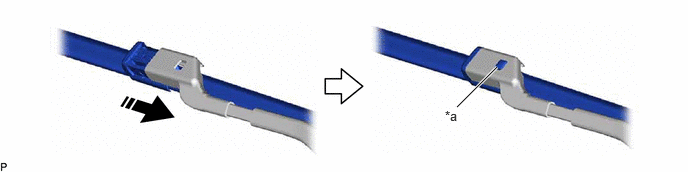

Slide the front wiper blade as shown in the illustration until the lock button locks to install the front wiper blade.

NOTICE:: Make sure that the lock button locks so that it is installed securely.

4.76,1.115 5.177,0.698 true 4.635,1.125 4.948,1.323 0.313,0.198 10 false *a

*a	Lock Button	-	-
	Install in this Direction	-	-
