MAINTENANCE FRONT WIPER RUBBER REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 85222A 1.REMOVE FRONT WIPER BLADE (for Type A)

1.667,1 2.167,1.417 true 1.5,2.5 2,2.917 true 2.188,1.385 2.5,1.583 0.313,0.198 10 false *a 2.021,2.885 2.333,3.083 0.313,0.198 10 false *a

*a	Holder
	Remove in this Direction

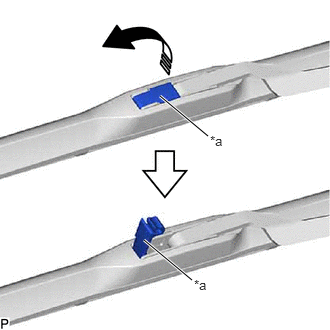

Pull up the holder of the front wiper blade as shown in the illustration.

0,0 0,0 false

Remove in this Direction

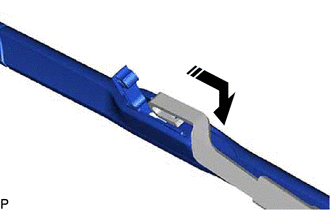

Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:: Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.

Hide Display 85222A 2.REMOVE FRONT WIPER BLADE (for Type B)

1.552,1.521 1.813,1.01 true 1.469,1.5 1.781,1.698 0.313,0.198 10 false *a

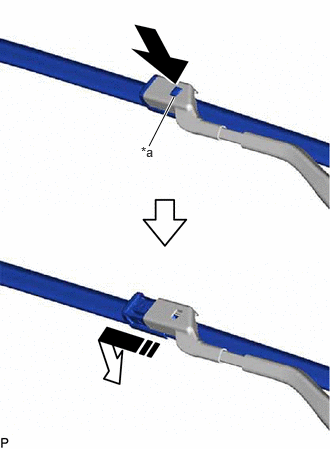

Push the lock button of the front wiper blade to release the lock.

Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:: Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.

Hide Display 85214B 3.REMOVE WIPER RUBBER (for Type A)

0,0 0,0 false

Remove in this Direction

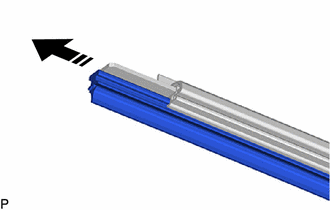

Remove the wiper rubber with the front wiper rubber backing plates from the front wiper blade as shown in the illustration.

0,0 0,0 false

Remove in this Direction

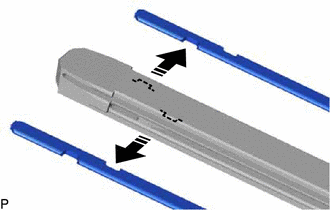

Remove the 2 front wiper rubber backing plates from the wiper rubber as shown in the illustration.

Hide Display 85214B 4.REMOVE WIPER RUBBER (for Type B)

0,0 0,0 false

Remove in this Direction

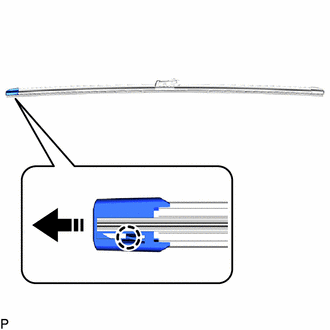

Disengage the claw to remove the clip as shown in the illustration.

0,0 0,0 false

Remove in this Direction

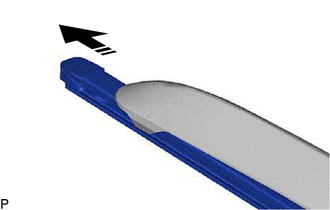

Remove the wiper rubber from the front wiper blade as shown in the illustration.
