RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392549 REAR BUMPER(for GTMC Made) A

EXTERIOR PANELS / TRIM  REAR BUMPER(for GTMC Made)  INSTALLATION


PROCEDURE

Hide 1.INSTALL REAR BUMPER ASSEMBLY

a.
B536263C01
0,0 0,0 false
V113147

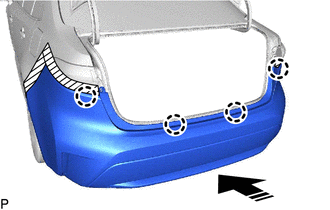

Install in this Direction


Engage the 4 claws as shown in the illustration.


b.
B536264C01
0,0 0,0 false
V113147

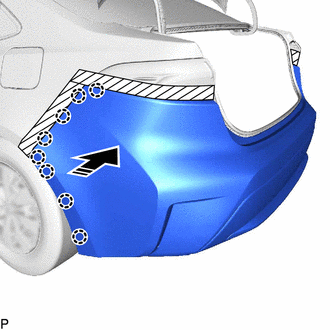

Install in this Direction


Engage the 8 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



c.

Install the 9 clips.


d.

Install the rear bumper assembly with the 2 screws.


Hide 81497 3.INSTALL REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.
