EXTERIOR PANELS / TRIM  REAR BUMPER(for GTMC Made)  DISASSEMBLY

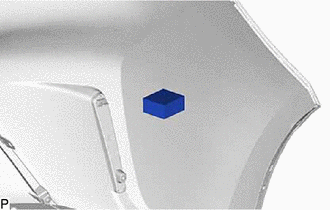

52462B 1.REMOVE REAR BUMPER PAD

a.

Remove the rear bumper pad.

HINT:

Use the same procedure for the RH side and LH side.

52461F 2.REMOVE REAR BUMPER PAD

a.

Remove the 3 rear bumper pads.

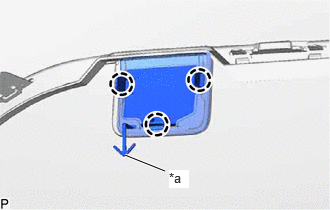

52161B 3.REMOVE REAR BUMPER PIECE (except Sport Package)

a.

1.479,1.563 1.896,1.729 true 1.917,1.635 2.125,1.823 0.208,0.188 10 true *a

*a

Hook

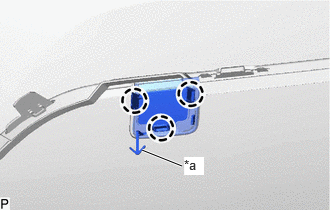

Disengage the 3 claws.

b.

Disengage the hook to remove the rear bumper piece.

52161B 4.REMOVE REAR BUMPER PIECE (for Sport Package)

a.

for LEVIN:

i.

1.333,1.667 1.667,1.667 true 1.719,1.583 1.917,1.792 0.198,0.208 10 true *a

*a

Hook

Disengage the 3 claws and guide.

ii.

Disengage the hook to remove the rear bumper piece.

52161B 5.REMOVE REAR BUMPER PIECE (for Sport Package)

a.

for LEVIN GT:

i.

1.302,1.615 1.719,1.781 true 1.76,1.771 1.969,1.958 0.208,0.188 10 true *a

*a

Hook

Disengage the 3 claws.

ii.

Disengage the hook to remove the rear bumper piece.

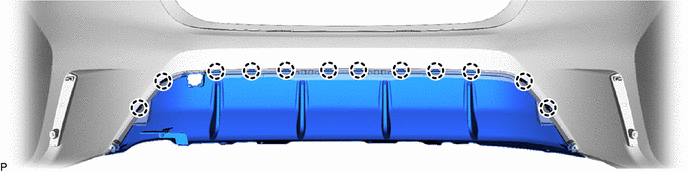

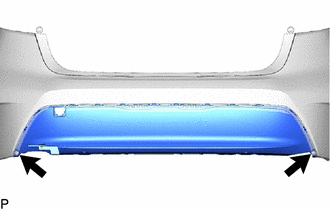

52169C 6.REMOVE REAR BUMPER LOWER COVER (except Sport Package)

a.

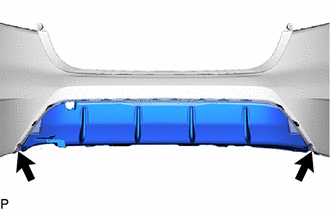

Remove the 2 screws.

b.

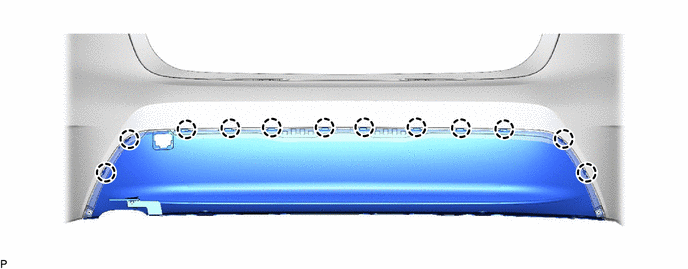

Disengage the 12 claws to remove the rear bumper lower cover.

52169C 7.REMOVE REAR BUMPER LOWER COVER (for Sport Package)

a.

for LEVIN:

i.

Remove the 2 screws.

ii.

Disengage the 12 claws to remove the rear bumper lower cover.

8.REMOVE REAR BUMPER SUB-ASSEMBLY (for Sport Package)

a.

for LEVIN GT:

i.

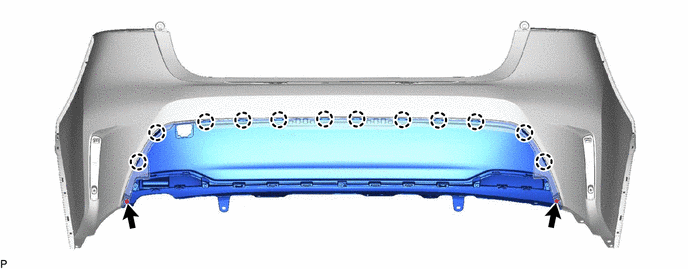

Remove the 2 screws.

ii.

Disengage the 12 claws to remove the rear bumper sub-assembly.

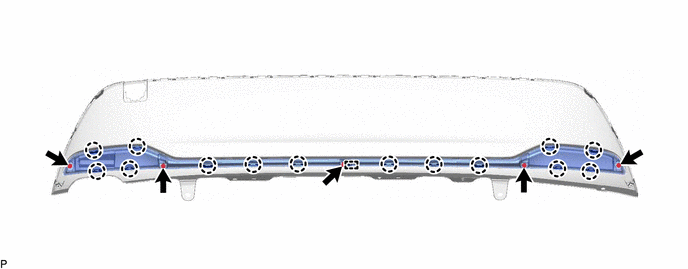

52751 9.REMOVE REAR BUMPER MOULDING (for Sport Package)

a.

for LEVIN GT:

i.

Remove the 5 screws.

ii.

Disengage the guide and 14 claws to remove the rear bumper moulding.

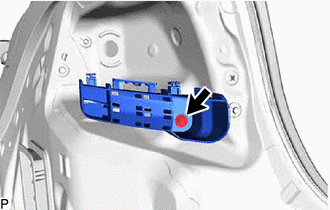

81920 10.REMOVE REFLEX REFLECTOR ASSEMBLY LH

a.

Remove the screw.

b.

Disengage the claw to remove the reflex reflector assembly LH.

81910 11.REMOVE REFLEX REFLECTOR ASSEMBLY RH

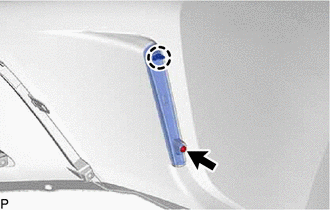

52592 12.REMOVE REAR BUMPER SIDE SEAL LH

a.

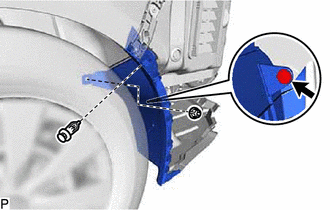

Remove the 3 clips and rear bumper side seal LH.

52591 13.REMOVE REAR BUMPER SIDE SEAL RH

14.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

15.REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

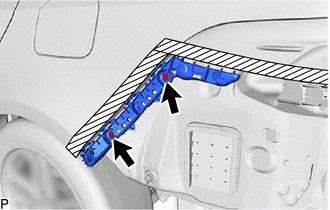

52576 16.REMOVE REAR BUMPER SIDE RETAINER LH

a.

Remove the 2 screws.

b.

0,0 0,0 false

Remove in this Direction

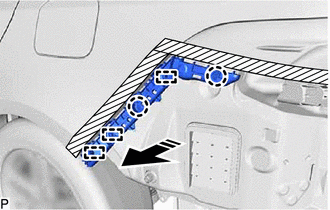

Disengage the 2 claws and 3 guides as shown in the illustration to remove the rear bumper side retainer LH.

52575 17.REMOVE REAR BUMPER SIDE RETAINER RH

52563A 18.REMOVE NO. 3 REAR BUMPER FILLER RETAINER

a.

Remove the screw and No. 3 rear bumper filler retainer.

52562B 19.REMOVE NO. 2 REAR BUMPER FILLER RETAINER

20.REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

a.

0,0 0,0 false

Remove in this Direction

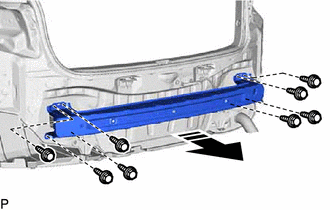

Remove the 8 bolts and rear bumper reinforcement sub-assembly as shown in the illustration.
