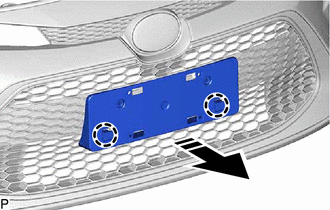

EXTERIOR PANELS / TRIM FRONT BUMPER(for GTMC Made) DISASSEMBLY

Hide Display 52114B 1.REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (except Sport Package)

a.

for NR Series Engine:

i.

Remove the 2 screws.

ii.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws as shown in the illustration to remove the front bumper extension mounting bracket.

Hide Display 16563C 2.REMOVE NO. 3 RADIATOR TO SUPPORT SEAL (except Sport Package)

a.

0,0 0,0 false

Remove in this Direction

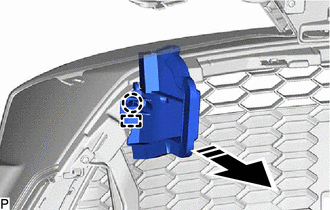

Disengage the claw and guide to remove the No. 3 radiator to support seal as shown in the illustration.

Hide Display 16563C 3.REMOVE NO. 3 RADIATOR TO SUPPORT SEAL (for Sport Package)

a.

0,0 0,0 false

Remove in this Direction

Disengage the claw and guide to remove the No. 3 radiator to support seal as shown in the illustration.

Hide Display 16562K 4.REMOVE NO. 2 RADIATOR TO SUPPORT SEAL (except Sport Package)

HINT:: Use the same procedure as for the No. 3 radiator to support seal.

Hide Display 16562K 5.REMOVE NO. 2 RADIATOR TO SUPPORT SEAL (for Sport Package)

HINT:: Use the same procedure as for the No. 3 radiator to support seal.

Hide Display 53114A 6.REMOVE INNER RADIATOR GRILLE (except Sport Package)

a.

Disengage the 2 guides.

b.

0,0 0,0 false

	Screw
	Clip

Remove the 2 screws and 4 clips.

c.

Remove the 5 screws.

d.

Disengage the 11 claws to remove the inner radiator grille.

Hide Display 53114A 7.REMOVE INNER RADIATOR GRILLE (for Sport Package)

a.

for LEVIN:

i.

Disengage the 2 guides.

ii.

0,0 0,0 false

	Screw
	Clip

Remove the 2 screws and 4 clips.

iii.

Remove the 5 screws.

iv.

Disengage the 2 claws and 2 guides to remove the inner radiator grille.

b.

for LEVIN GT:

i.

Disengage the 2 guides.

ii.

0,0 0,0 false

	Screw
	Clip

Remove the 2 screws and 4 clips.

iii.

Remove the 5 screws.

iv.

Disengage the 2 claws and 2 guides to remove the inner radiator grille.

Hide Display 53395E 8.REMOVE HOOD TO FRONT END PANEL SEAL

a.

Disengage the 9 clips to remove the hood to front end panel seal.

Hide Display 88211B 9.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

for NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (for NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584842,RM1000000029I3D_01_0015,

except NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>REMOVAL202304,202307,_95,_139716,_0584197,RM1000000029F5R_01_0028,202307,999999,_95,_139716,_0584197,RM100000002CW5C_01_0028,

Hide Display 52421A 10.REMOVE FRONT BUMPER PAD (except Sport Package)

a.

Remove the front bumper pad.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 52421A 11.REMOVE FRONT BUMPER PAD (for Sport Package)

a.

Remove the front bumper pad.

HINT:: Use the same procedure for the RH side and LH side.

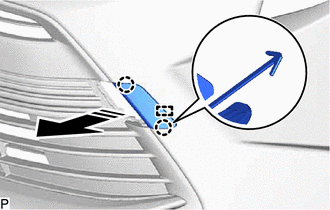

Hide Display 53128G 12.REMOVE LOWER SIDE RADIATOR GRILLE LH (except Sport Package)

a.

for NR Series Engine:

i.

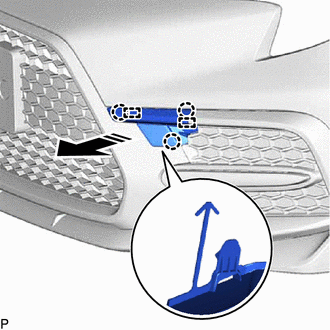

1.958,2.271 2.229,2.271 false 2.24,2.177 2.438,2.365 0.198,0.188 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 3 claws.

ii.

Disengage the hook to remove the lower side radiator grille LH.

b.

except NR Series Engine:

i.

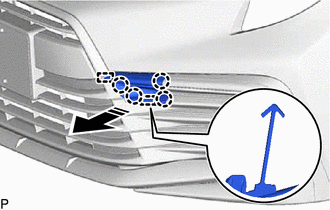

2.771,0.573 2.479,0.458 false 2.323,0.365 2.635,0.563 0.313,0.198 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 2 claws.

ii.

Disengage the hook to remove the lower side radiator grille LH.

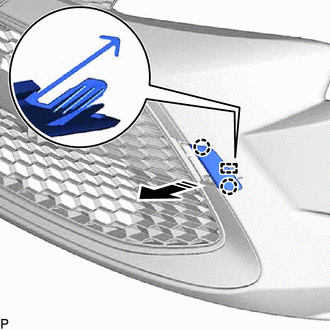

Hide Display 52128B 13.REMOVE FRONT BUMPER HOLE COVER LH (except Sport Package)

a.

for NR Series Engine:

i.

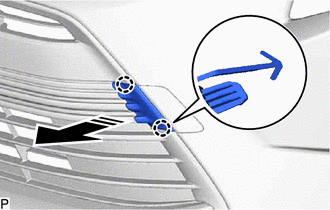

1.01,0.594 1.26,0.708 false 1.281,0.625 1.594,0.781 0.313,0.156 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 2 claws and guide.

ii.

Disengage the hook to remove the front bumper hole cover LH.

b.

except NR Series Engine:

i.

2.844,0.542 2.563,0.365 false 2.396,0.271 2.708,0.469 0.313,0.198 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 2 claws and guide.

ii.

Disengage the hook to remove the front bumper hole cover LH.

Hide Display 53112A 14.REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (except Sport Package)

a.

for NR Series Engine:

i.

Remove the 4 screws.

ii.

Disengage the 17 claws to remove the lower radiator grille sub-assembly.

b.

except NR Series Engine:

i.

Remove the 4 screws.

ii.

Disengage the 17 claws to remove the lower radiator grille sub-assembly.

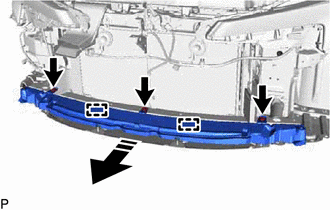

Hide Display 15.REMOVE FRONT BUMPER INNER BRACKET (for Sport Package)

a.

Remove the 4 screws.

b.

Disengage the 2 guides to remove the front bumper inner bracket.

Hide Display 16.REMOVE RADIATOR GRILLE GARNISH (for Sport Package)

a.

Disengage the 4 claws to remove the radiator grille garnish as shown in the illustration.

Hide Display 53111 17.REMOVE RADIATOR GRILLE (except Sport Package)

a.

Disengage the 10 claws to remove the radiator grille.

Hide Display 75311 18.REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY (except Sport Package)

a.

w/o Pre-collision System:

i.

Remove the screw.

ii.

Disengage the 4 claws and guide to remove the radiator grille emblem assembly.

Hide Display 75311 19.REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY (except Sport Package)

a.

w/ Pre-collision System:

i.

Remove the screw.

ii.

Disengage the 4 claws and guide to remove the radiator grille emblem assembly.

Hide Display 75311 20.REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (for Sport Package)

HINT:: When removing the radiator grille (or front panel) emblem, heat the front bumper cover and radiator grille (or front panel) emblem using a heat light.

Heating Temperature
Item	Temperature
Front Bumper Cover	20 to 30°C (68 to 86°F)
Radiator Grille (or Front Panel) Emblem	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the front bumper cover and radiator grille (or front panel) emblem excessively.

a.

0,0 0,0 false

Protective Tape

Apply protective tape around the radiator grille (or front panel) emblem as shown in the illustration.

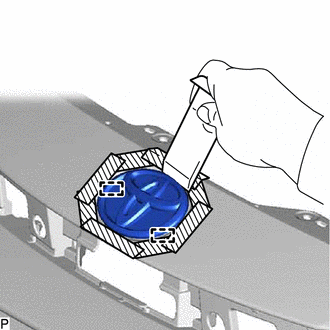

b.

Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the radiator grille (or front panel) emblem.

NOTICE:: Be careful not to damage the front bumper cover.

Hide Display 53128G 21.REMOVE LOWER SIDE RADIATOR GRILLE LH (for Sport Package)

a.

for LEVIN NR Series Engine:

i.

1.76,2.479 2.094,2.49 false 1.583,2.365 1.896,2.563 0.313,0.198 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 3 claws and 2 guides.

ii.

Disengage the hook to remove the lower side radiator grille LH.

b.

for LEVIN except NR Series Engine:

i.

1.917,1.698 2.229,1.802 true 2.26,1.719 2.573,1.917 0.313,0.198 10 true *a

*a

Hook

Disengage the 4 claws and 2 guides.

ii.

Disengage the hook to remove the front bumper hole cover LH.

Hide Display 53124D 22.REMOVE LOWER RADIATOR GRILLE MOULDING LH (for Sport Package)

a.

for LEVIN except NR Series Engine:

i.

Remove the 3 screws and lower radiator grille moulding LH.

Hide Display 53123C 23.REMOVE LOWER RADIATOR GRILLE MOULDING RH (for Sport Package)

a.

for LEVIN except NR Series Engine:

HINT:: Use the same procedure as for the LH side.

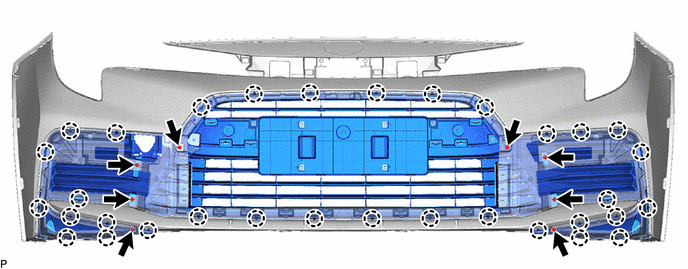

Hide Display 53112A 24.REMOVE LOWER RADIATOR GRILLE (for Sport Package)

a.

for LEVIN NR Series Engine:

i.

Remove the 7 screws.

ii.

Disengage the 12 claws and remove the lower radiator grille.

b.

for LEVIN except NR Series Engine:

i.

Remove the 4 screws.

ii.

Disengage the 25 claws and remove the lower radiator grille.

iii.

Disengage the 6 claws to remove the fog light cover LH.

iv.

Disengage the 7 claws to remove the fog light cover RH.

Hide Display 52040 25.REMOVE FRONT BUMPER HOLE COVER ASSEMBLY LH (for Sport Package)

a.

for LEVIN GT:

i.

2.51,1.49 2.781,1.458 false 2.354,1.406 2.667,1.604 0.313,0.198 10 false *a

*a	Hook
	Remove in this Direction

Disengage the 4 claws and 2 guides.

ii.

Disengage the hook to remove the front bumper hole cover assembly LH.

Hide Display 53102A 26.REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Sport Package)

a.

for LEVIN GT:

i.

Remove the 8 screws.

ii.

Disengage the 33 claws and remove the lower radiator grille sub-assembly.

Hide Display 52113D 27.REMOVE FRONT BUMPER EXTENSION LH (for Sport Package)

a.

for LEVIN GT:

i.

Disengage the 2 claws and guide to remove the front bumper extension LH.

Hide Display 52112D 28.REMOVE FRONT BUMPER EXTENSION RH (for Sport Package)

a.

for LEVIN GT:

HINT:: Use the same procedure as for the LH side.

Hide Display 29.REMOVE NO. 2 FRONT BUMPER MOULDING (except Sport Package)

a.

for NR Series Engine:

i.

Remove the 2 screws.

ii.

Disengage the 2 claws to remove the No. 2 front bumper moulding.

Hide Display 52711C 30.REMOVE FRONT BUMPER MOULDING (except Sport Package)

a.

for NR Series Engine:

i.

Remove the 4 screws.

ii.

Disengage the 12 claws to remove the front bumper moulding.

b.

except NR Series Engine:

i.

Remove the 2 screws.

ii.

Disengage the 8 claws and 5 guides to remove the front bumper moulding.

Hide Display 52713A 31.REMOVE FRONT BUMPER SIDE MOULDING LH (for Sport Package)

a.

for LEVIN GT:

i.

Remove the 2 screws.

ii.

Disengage the 3 claws to remove the front bumper side moulding LH.

Hide Display 52712 32.REMOVE FRONT BUMPER SIDE MOULDING RH (for Sport Package)

a.

for LEVIN GT:

i.

Remove the 2 screws.

ii.

Disengage the 4 claws to remove the front bumper side moulding RH.

Hide Display 52742 33.REMOVE NO. 2 FRONT BUMPER BAR GARNISH (for Sport Package)

a.

for LEVIN GT:

i.

Remove the 2 screws.

ii.

Disengage the 3 claws to remove the No. 2 front bumper bar garnish.

Hide Display 52741 34.REMOVE NO. 1 FRONT BUMPER BAR GARNISH (for Sport Package)

a.

for LEVIN GT:

HINT:: Use the same procedure as for the LH side.

Hide Display 81482C 35.REMOVE FOG LIGHT COVER LH (except Sport Package)

a.

Remove the clip.

b.

Disengage the 3 claws and guide to remove the fog light cover LH.

Hide Display 81481E 36.REMOVE FOG LIGHT COVER RH (except Sport Package)

HINT:: Use the same procedure as for the LH side.

Hide Display 37.REMOVE FRONT BUMPER HOLE COVER LH (for Sport Package)

a.

for LEVIN NR Series Engine:

i.

Disengage the 6 claws to remove the front bumper hole cover LH.

Hide Display 38.REMOVE FRONT BUMPER HOLE COVER RH (for Sport Package)

a.

for LEVIN NR Series Engine:

i.

Disengage the 7 claws to remove the front bumper hole cover RH.

Hide Display 52113D 39.REMOVE FRONT BUMPER EXTENSION LH (for Sport Package)

a.

for LEVIN:

i.

Remove the screw.

ii.

Disengage the 7 claws to remove the front bumper extension LH.

Hide Display 52112D 40.REMOVE FRONT BUMPER EXTENSION RH (for Sport Package)

a.

for LEVIN:

HINT:: Use the same procedure as for the LH side.

Hide Display 47749F 41.REMOVE PIN HOLD CLIP

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws as shown in the illustration to remove the 2 pin hold clips.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 53879H 42.REMOVE FRONT FENDER LINER RETAINER

a.

0,0 0,0 false

Remove in this Direction

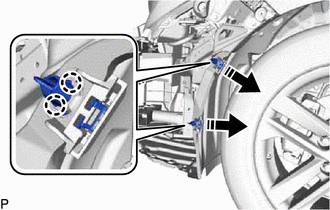

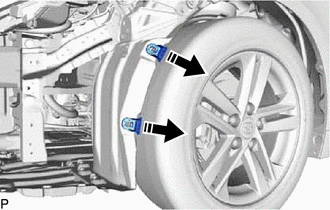

Remove the 2 front fender liner retainers as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

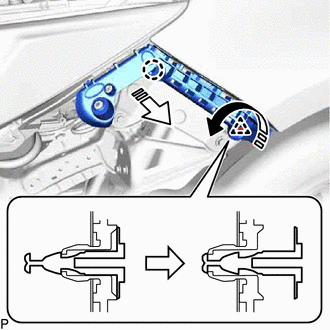

Hide Display 52116A 43.REMOVE FRONT BUMPER SIDE SUPPORT LH

a.

Remove the bolt.

b.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Disengage the clip and claw as shown in the illustration to remove the front bumper side support LH.

Hide Display 52115A 44.REMOVE FRONT BUMPER SIDE SUPPORT RH

HINT:: Use the same procedure as for the LH side.

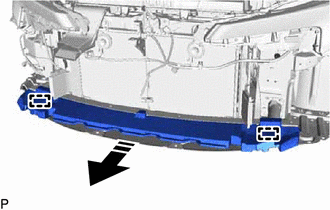

Hide Display 52527C 45.REMOVE NO. 2 LOWER FRONT BUMPER RETAINER

a.

Disengage the claw to remove the No. 2 lower front bumper retainer.

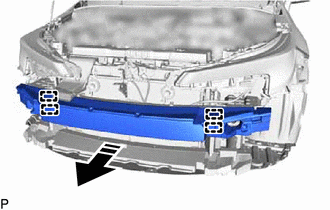

Hide Display 52611 46.REMOVE FRONT BUMPER ENERGY ABSORBER (except Sport Package)

a.

0,0 0,0 false

Remove in this Direction

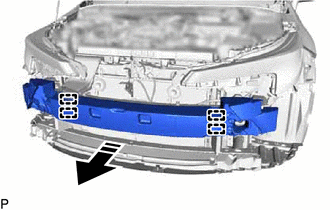

Disengage the 4 guides as shown in the illustration to remove the front bumper energy absorber.

Hide Display 52611 47.REMOVE FRONT BUMPER ENERGY ABSORBER (for Sport Package)

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 guides as shown in the illustration to remove the front bumper energy absorber.

Hide Display 52131A 48.REMOVE FRONT BUMPER REINFORCEMENT

a.

Disengage each clamp.

b.

w/ clip:

i.

Remove the clip.

c.

0,0 0,0 false

Remove in this Direction

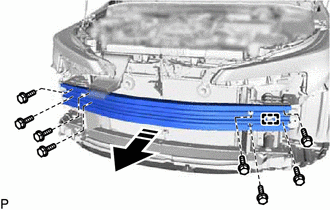

Remove the 8 bolts.

d.

Disengage the guide as shown in the illustration to remove the front bumper reinforcement.

Hide Display 57014A 49.REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

a.

Disengage the 2 clamps.

b.

0,0 0,0 false

Remove in this Direction

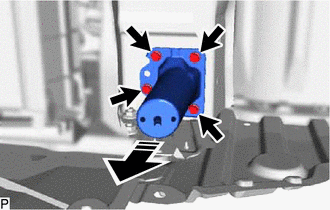

Remove the 4 bolts and front side member bracket sub-assembly LH as shown in the illustration.

Hide Display 57013C 50.REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 bolts and front side member bracket sub-assembly RH as shown in the illustration.

Hide Display 52618 51.REMOVE LOWER FRONT BUMPER ABSORBER (except Sport Package)

a.

0,0 0,0 false

Remove in this Direction

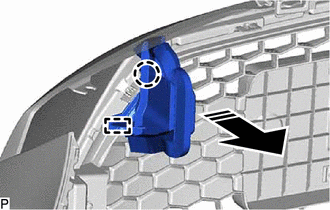

Remove the 3 clips.

b.

Disengage the 2 guides as shown in the illustration to remove the lower front bumper absorber.

Hide Display 52618 52.REMOVE LOWER FRONT BUMPER ABSORBER (for Sport Package)

a.

0,0 0,0 false

Remove in this Direction

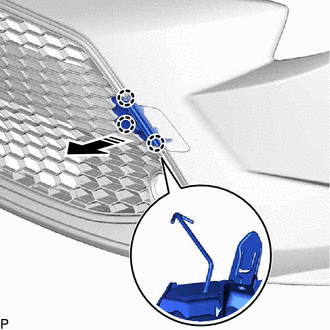

Disengage the 2 guides as shown in the illustration to remove the lower front bumper absorber.

Hide Display 52132A 53.REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

a.

0,0 0,0 false

Remove in this Direction

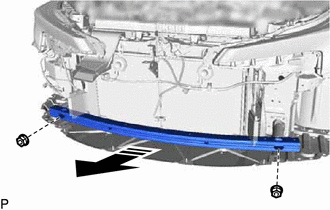

Remove the 2 nuts and No. 2 front bumper reinforcement as shown in the illustration.

Hide Display 52134G 54.REMOVE FRONT BUMPER BRACKET LH

a.

0,0 0,0 false

Remove in this Direction

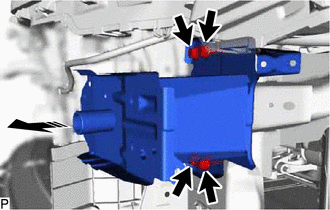

Remove the 4 bolts and front bumper bracket LH as shown in the illustration.

Hide Display 52133F 55.REMOVE FRONT BUMPER BRACKET RH

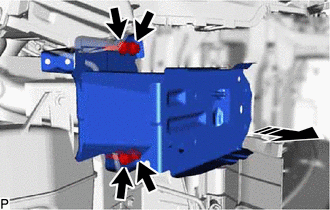

HINT:: Use the same procedure as for the LH side.

EXTERIOR PANELS / TRIM FRONT BUMPER(for GTMC Made) DISASSEMBLY

PROCEDURE
