REAR SUSPENSION  REAR AXLE BEAM  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle beam assembly removal/ installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Rear wheel alignment adjustment
·

Perform "Reset Memory"

·

Perform "Calibration"


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)

PROCEDURE

Hide 2.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 47318F 4.SEPARATE REAR FLEXIBLE HOSE RH

HINT:

Perform the same procedure as for the LH side.


Hide 890C0 6.SEPARATE NO. 1 PARKING BRAKE WIRE ASSEMBLY

HINT:

Perform the same procedure as for the No. 2 parking brake wire assembly.


Hide 7.REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH

a.

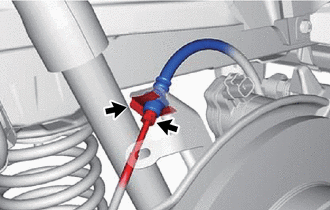

C491171

Using a union nut wrench, separate the rear No. 2 brake tube flexible hose from the rear No. 4 brake tube while holding the rear No. 2 brake tube flexible hose with a wrench.

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.




b.

Remove the clip and separate the rear No. 2 brake tube flexible hose.


c.

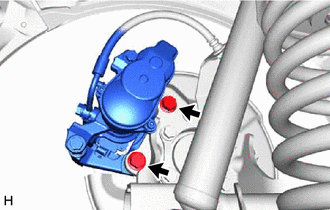

C491172

Remove the 2 bolts and rear disc brake caliper assembly LH with rear No. 2 brake tube flexible hose.


Hide 8.REMOVE REAR DISC BRAKE CALIPER ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 42431 10.REMOVE REAR DISC (for RH Side)

HINT:

Perform the same procedure as for the LH side.


Hide 47324 11.REMOVE REAR NO. 4 BRAKE TUBE

a.

Disengage the clamp and remove the rear No. 4 brake tube.

C466476


Hide 47323 12.REMOVE REAR NO. 3 BRAKE TUBE

HINT:

Perform the same procedure as for the rear No. 4 brake tube.


Hide 42450A 14.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH

HINT:

Perform the same procedure as for the LH side.


Hide 48257C 17.REMOVE REAR UPPER COIL SPRING INSULATOR RH

HINT:

Perform the same procedure as for the LH side.


Hide 48258B 19.REMOVE REAR LOWER COIL SPRING INSULATOR RH

HINT:

Perform the same procedure as for the LH side.


Hide 20.REMOVE REAR AXLE BEAM ASSEMBLY

a.

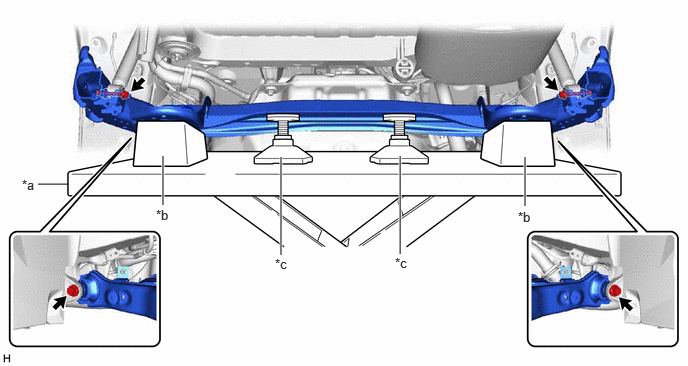

Support the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools as shown in the illustration.

C491174C03
1.698,2.135 1.698,1.625 true 5.469,2.146 5.469,1.635 true 4.167,2.646 4.167,1.625 true 2.927,2.656 2.927,1.635 true 0.396,1.917 0.708,1.917 false 0.229,1.844 0.542,2 0.313,0.156 10 false *a 1.625,2.156 1.938,2.313 0.313,0.156 10 false *b 2.865,2.667 3.177,2.823 0.313,0.156 10 false *c 5.396,2.177 5.708,2.333 0.313,0.156 10 false *b 4.115,2.656 4.427,2.813 0.313,0.156 10 false *c
*a Engine Lifter *b Wooden Block
*c Attachment - -


CAUTION:

Make sure to secure the rear axle beam assembly to prevent it from dropping.



b.

Remove the 2 bolts and separate the rear axle beam assembly from the rear shock absorber assemblies LH and RH.


c.

Remove the 2 bolts and rear axle beam assembly.


Hide 48727 21.REMOVE REAR SUSPENSION ARM BRACKET LH

HINT:

Perform this procedure only when replacement of the rear suspension arm bracket LH is necessary.


a.

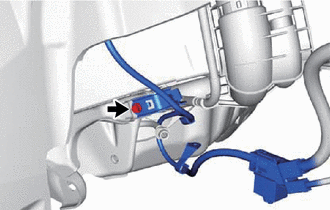

C493196

Remove the bolt and separate the No. 2 parking brake wire assembly from the rear suspension arm bracket LH.


b.

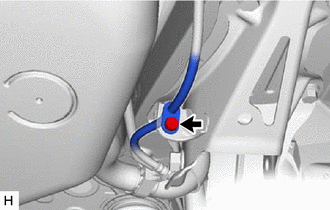

C491177

Remove the bolt and separate the rear flexible hose LH from the rear suspension arm bracket LH.


c.

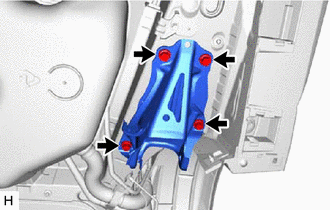

C491178

Remove the 4 bolts and rear suspension arm bracket LH from the vehicle body.


Hide 48717 22.REMOVE REAR SUSPENSION ARM BRACKET RH

HINT:

Perform this procedure only when replacement of the rear suspension arm bracket RH is necessary.


a.

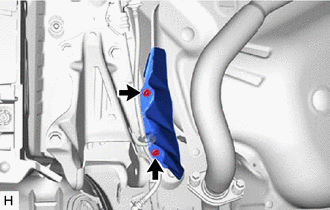

C491175

Remove the 2 nut and parking brake cable heat insulator from the rear suspension arm bracket RH.


b.

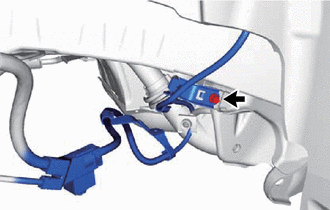

C493207

Remove the bolt and separate the No. 1 parking brake wire assembly from the rear suspension arm bracket RH.


c.

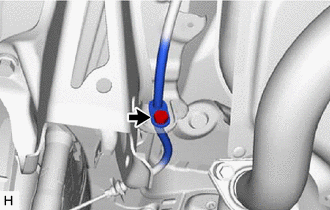

C493197

Remove the bolt and separate the rear flexible hose RH from the rear suspension arm bracket RH.


d.

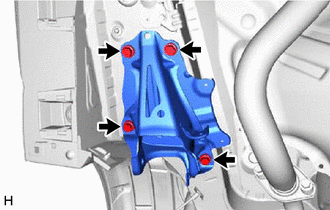

C493198

Remove the 4 bolts and rear suspension arm bracket RH from the vehicle body.
