REAR SUSPENSION  REAR SHOCK ABSORBER(for Torsion Beam Type Suspension)  COMPONENTS

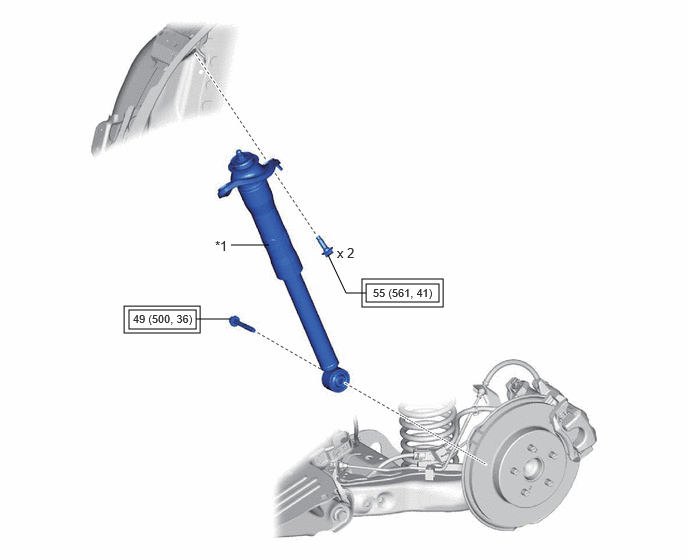

ILLUSTRATION

3.813,2.958 4.573,3.146 0.76,0.188 3.771,2.906 4.615,3.198 0.844,0.292 1.292,3.188 2.083,3.469 0.792,0.281 1.344,3.229 2.042,3.427 0.698,0.198 2.406,2.552 2.802,2.552 false 2.042,3.323 2.396,3.323 false 3.417,2.656 3.604,3.052 3.604,3.052 3.813,3.052 false 3.51,2.552 3.969,2.75 0.458,0.198 10 false x 2 3.885,2.979 4.865,3.135 0.979,0.156 8 false 55 (561, 41) 1.385,3.25 2.198,3.49 0.813,0.24 8 false 49 (500, 36) 2.24,2.479 2.698,2.677 0.458,0.198 10 false *1

*1	REAR SHOCK ABSORBER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	-	-

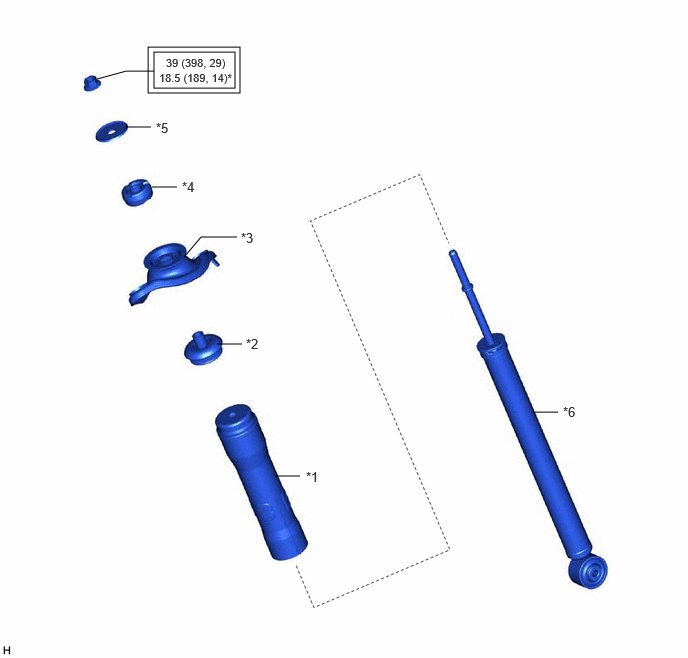

ILLUSTRATION

1.604,0.542 2.448,0.917 0.844,0.375 1.542,0.49 2.5,0.969 0.958,0.479 1.01,0.823 1.313,0.74 1.313,0.74 1.604,0.74 false 1.313,1.323 1.573,1.323 false 1.583,1.948 1.844,1.948 false 1.917,2.677 2.094,2.469 2.094,2.469 2.469,2.469 false 2.26,3.583 2.521,3.583 false 2.865,4.958 3.125,4.958 false 5.552,4.292 5.813,4.292 false 3.188,4.885 3.5,5.042 0.313,0.156 10 false *1 2.563,3.5 2.875,3.656 0.313,0.156 10 false *2 2.51,2.396 2.823,2.552 0.313,0.156 10 false *3 1.896,1.865 2.208,2.021 0.313,0.156 10 false *4 1.625,1.25 1.938,1.406 0.313,0.156 10 false *5 5.865,4.208 6.177,4.365 0.313,0.156 10 false *6 1.729,0.583 2.708,0.74 0.979,0.156 8 false 39 (398, 29) 1.656,0.74 2.885,0.896 1.229,0.156 8 false 18.5 (189, 14)*

*1	REAR NO. 1 SPRING BUMPER	*2	REAR SUSPENSION SUPPORT STOPPER
*3	REAR SUSPENSION SUPPORT ASSEMBLY	*4	REAR SUSPENSION SUPPORT
*5	REAR NO. 1 SHOCK ABSORBER CUSHION WASHER	*6	REAR SHOCK ABSORBER ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	*	For use with SST
