AXLE AND DIFFERENTIAL REAR AXLE HUB(for Torsion Beam Type Suspension) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Tires	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0D,)

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202304,202307,_V1,_080956,_0392691,RM100000002B9S6,202307,999999,_V1,_080956,_0392691,RM100000002CWK9,

Hide Display 890C0A 2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

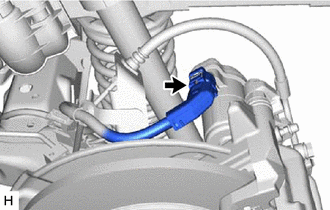

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

NOTICE:: ·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

0.979,1.229 1.406,1.229 true 0.792,1.135 1,1.323 0.208,0.188 10 true *a

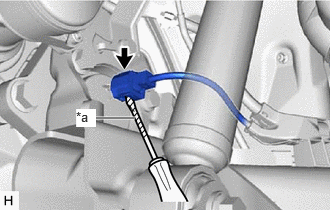

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear axle hub and bearing assembly.

NOTICE:: Be careful not to damage the rear axle hub and bearing assembly or connector cover.

Hide Display 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Torsion Beam Type Suspension)>REPLACEMENT202304,999999,_52,_080786,_0596191,RM100000002AW30_01_0063,

Hide Display 42431 4.REMOVE REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE (w/ Electric Parking Brake)>REMOVAL202304,202307,_54,_080788,_0392487,RM100000002AVCO_04_0001,202307,999999,_54,_080788,_0392487,RM100000002COH1_04_0001,

Hide Display 42450B 5.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

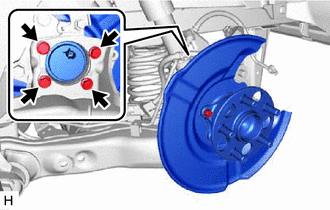

Remove the 4 bolts, rear axle hub and bearing assembly, rear disc brake dust cover sub-assembly and rear caliper support bracket from the rear axle beam assembly.

NOTICE:: ·

Do not drop the rear axle hub and bearing assembly and rear caliper support bracket.

·

Use wire or an equivalent tool to keep the rear caliper support bracket from hanging by the rear flexible hose and brake tube.
