AXLE AND DIFFERENTIAL REAR AXLE HUB(for Torsion Beam Type Suspension) ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Tires	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0D,)

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202304,202307,_V1,_080956,_0392691,RM100000002B9S6,202307,999999,_V1,_080956,_0392691,RM100000002CWK9,

Hide Display 890C0A 2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Torsion Beam Type Suspension)>REPLACEMENT202304,999999,_52,_080786,_0596191,RM100000002AW30_01_0064,

Hide Display 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Torsion Beam Type Suspension)>REPLACEMENT202304,999999,_52,_080786,_0596191,RM100000002AW30_01_0063,

Hide Display 42431 4.REMOVE REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE (w/ Electric Parking Brake)>REMOVAL202304,202307,_54,_080788,_0392487,RM100000002AVCO_04_0001,202307,999999,_54,_080788,_0392487,RM100000002COH1_04_0001,

Hide Display 5.INSPECT REAR AXLE HUB BEARING LOOSENESS

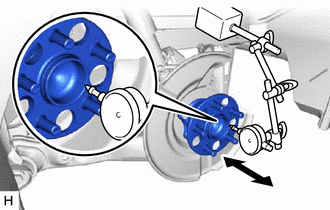

Using a dial indicator with magnetic base, check for looseness near the center of the rear axle hub.

Maximum Looseness:: 0.05 mm (0.00196 in.)

NOTICE:: ·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

HINT:: If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

Hide Display 6.INSPECT REAR AXLE HUB RUNOUT

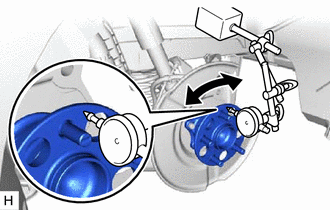

Using a dial indicator with magnetic base, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.

Maximum Runout:: 0.07 mm (0.00275 in.)

NOTICE:: ·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.

·

Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

HINT:: If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.

Hide Display 42431 7.INSTALL REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE (w/ Electric Parking Brake)>INSTALLATION202304,202307,_54,_080788,_0392487,RM100000002AVE6_04_0010,202307,999999,_54,_080788,_0392487,RM100000002COH2_04_0010,

Hide Display 8.INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Torsion Beam Type Suspension)>REPLACEMENT202304,999999,_52,_080786,_0596191,RM100000002AW30_01_0068,

Hide Display 890C0A 9.CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Torsion Beam Type Suspension)>REPLACEMENT202304,999999,_52,_080786,_0596191,RM100000002AW30_01_0067,

Hide Display 10.INSTALL REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION202304,202307,_V1,_080956,_0392691,RM100000002B9S7,202307,999999,_V1,_080956,_0392691,RM100000002CWKE,
