AXLE AND DIFFERENTIAL  REAR AXLE HUB(for Torsion Beam Type Suspension)  COMPONENTS

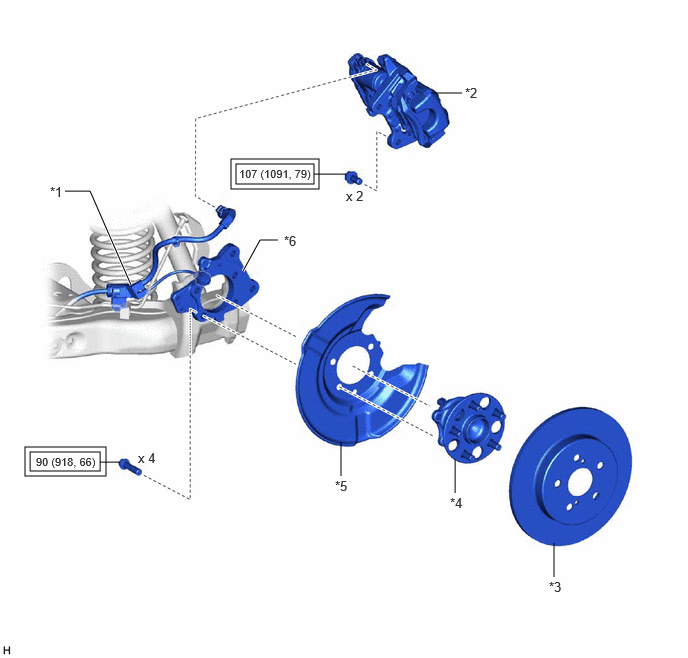

ILLUSTRATION

2.458,1.708 3.271,1.917 0.813,0.208 2.406,1.656 3.323,1.969 0.917,0.313 0.313,4.708 1.042,4.906 0.729,0.198 0.26,4.656 1.104,4.958 0.844,0.302 4.49,0.969 4.813,0.969 false 3.552,4.604 3.552,4.958 false 0.677,1.99 0.938,1.99 0.938,1.99 1.365,2.969 true 5.771,5.656 5.771,6.01 false 4.74,4.781 4.74,5.135 false 3.271,1.813 3.604,1.813 false 1.042,4.813 1.25,4.813 false 2.896,2.5 2.708,2.5 2.708,2.5 2.531,2.823 true 4.844,0.885 5.156,1.083 0.313,0.198 10 false *2 0.521,1.917 0.833,2.115 0.313,0.198 10 false *1 5.719,6.031 6.031,6.229 0.313,0.198 10 false *3 4.688,5.156 5,5.354 0.313,0.198 10 false *4 3.49,4.979 3.802,5.177 0.313,0.198 10 false *5 2.49,1.74 3.719,1.896 1.229,0.156 8 false 107 (1091, 79) 0.375,4.74 1.354,4.896 0.979,0.156 8 false 90 (918, 66) 1.438,4.688 1.896,4.885 0.458,0.198 10 false x 4 3.604,1.958 4.063,2.156 0.458,0.198 10 false x 2 2.958,2.427 3.271,2.625 0.313,0.198 10 false *6

*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR DISC BRAKE CALIPER ASSEMBLY
*3	REAR DISC	*4	REAR AXLE HUB AND BEARING ASSEMBLY
*5	REAR DISC BRAKE DUST COVER SUB-ASSEMBLY	*6	REAR CALIPER SUPPORT BRACKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
