INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  REASSEMBLY

58951D 1.INSTALL OUTER CONSOLE COMPARTMENT DOOR

a.

for Type A:

i.

0,0 0,0 false

Install in this Direction

Engage the 2 guides as shown in the illustration.

ii.

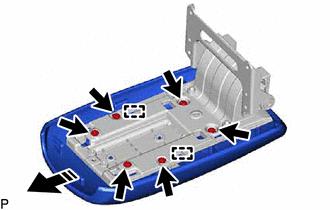

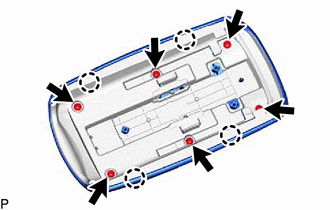

Install the outer console compartment door to the console compartment male hinge with the 6 screws.

iii.

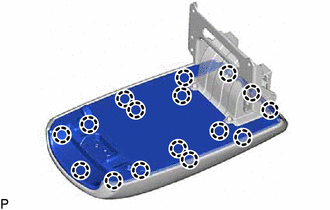

Engage the 16 claws to install the console compartment door female hinge.

b.

for Type B:

i.

Engage the 4 claws.

ii.

Install the outer console compartment door to the console compartment door moulding cover with the 6 screws.

iii.

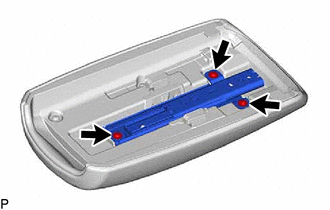

Install the console compartment retainer sub-assembly with the 3 screws.

iv.

0,0 0,0 false

Install in this Direction

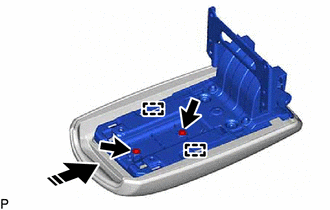

Engage the 2 guides as shown in the illustration.

v.

Install the console compartment male hinge with the 2 new bolts.

vi.

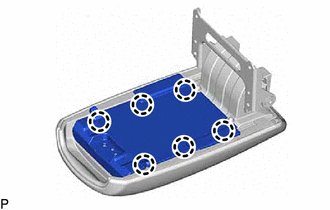

Engage the 6 claws to install the console compartment door female hinge.

58908A 2.INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

a.

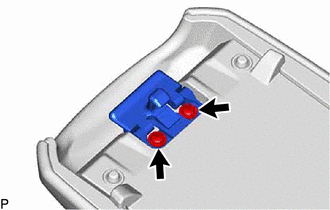

Install the console compartment door lock sub-assembly with the 2 screws.

58959B 3.INSTALL CONSOLE COMPARTMENT DOOR CUSHION

a.

0,0 0,0 false

Install in this Direction

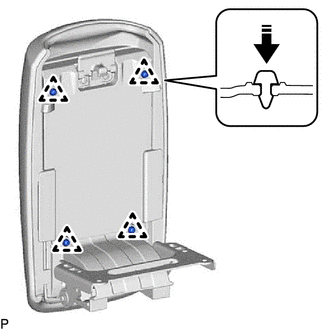

Engage the 4 clips as shown in the illustration to install the 4 console compartment door cushions.

58911G 4.INSTALL NO. 1 BOX PANEL (w/ Power Outlet Socket)

a.

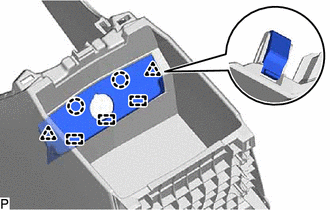

Engage the 3 guides, 2 clips and 2 claws to install the No. 1 box panel.

85535B 5.INSTALL NO. 1 POWER OUTLET SOCKET COVER (w/ Power Outlet Socket)

85530 6.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY (w/ Power Outlet Socket)

58905 7.INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

a.

Install the console compartment door sub-assembly with the 4 screws.

8.INSTALL CONSOLE PLATE

a.

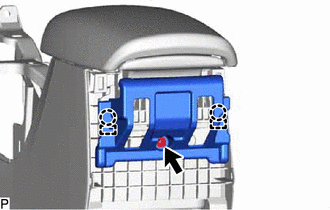

Engage the 2 guides and 2 claws.

b.

Install the console plate with the screw.
