SEAT  FRONT SEAT CUSHION HEATER(for Power Seat)  INSPECTION

1.521,0.167 1.885,0.417 0.365,0.25 1.531,1.833 1.896,2.083 0.365,0.25 0.219,0.156 0.521,0.458 0.302,0.302 10 false *a 1.667,1.885 1.969,2.188 0.302,0.302 10 false B 1.635,0.208 1.938,0.51 0.302,0.302 10 false q1

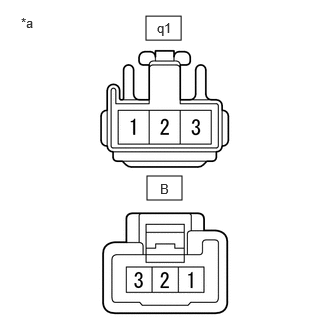

*a	Component without harness connected (Front Seat Cushion Heater (Separate Type Front Seat Cushion Cover LH))

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Type A):

Tester Connection	Condition	Specified Condition
q1-1 - B-3	Seat heater temperature 20°C (68°F)	Below 1 Ω
q1-2 - B-2	Seat heater temperature 20°C (68°F)	1.6 to 1.9 Ω
q1-3 - B-1	Seat heater temperature 20°C (68°F)	2.8 to 3.5 Ω

Standard Resistance (for Type B):

Tester Connection	Condition	Specified Condition
q1-1 - B-3	Seat heater temperature 20°C (68°F)	Below 1 Ω
q1-2 - B-2	Seat heater temperature 20°C (68°F)	1.53 to 1.87 Ω
q1-3 - B-1	Seat heater temperature 20°C (68°F)	2.61 to 3.19 Ω

If the result is not as specified, replace the front seat cushion heater (separate type front seat cushion cover LH).

1.531,1.833 1.896,2.083 0.365,0.25 1.531,0.167 1.896,0.417 0.365,0.25 0.219,0.156 0.521,0.458 0.302,0.302 10 false *a 1.667,1.885 1.969,2.188 0.302,0.302 10 false C 1.667,0.198 1.969,0.5 0.302,0.302 10 false j1

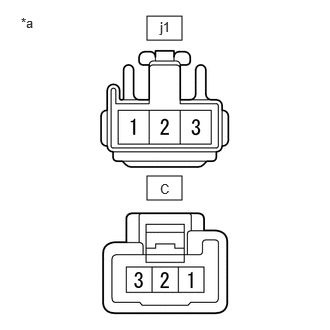

*a	Component without harness connected (Front Seat Cushion Heater (Separate Type Front Seat Cushion Cover RH))

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Type A):

Tester Connection	Condition	Specified Condition
j1-1 - C-3	Seat heater temperature 20°C (68°F)	Below 1 Ω
j1-2 - C-2	Seat heater temperature 20°C (68°F)	1.6 to 1.9 Ω
j1-3 - C-1	Seat heater temperature 20°C (68°F)	2.8 to 3.5 Ω

If the result is not as specified, replace the front seat cushion heater (separate type front seat cushion cover RH).
