SEAT  FRONT SEAT CUSHION HEATER(for Manual Seat)  INSPECTION

1.521,1.885 1.917,2.146 0.396,0.26 1.51,0.167 1.906,0.427 0.396,0.26 1.667,1.927 2.125,2.125 0.458,0.198 10 false C 0.375,0.25 0.719,0.531 0.344,0.281 10 false *a 1.583,0.219 2.042,0.417 0.458,0.198 10 false O20

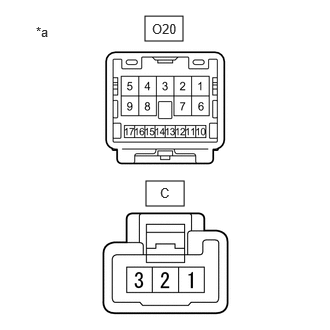

*a	Component without harness connected (Front Seat Cushion Heater (Separate Type Front Seat Cushion Cover))

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Type A):

Tester Connection	Condition	Specified Condition
O20-6 - C-3	Seat heater temperature 20°C (68°F)	Below 1 Ω
O20-7 - C-2	Seat heater temperature 20°C (68°F)	1.6 to 1.9 Ω
O20-5 - C-1	Seat heater temperature 20°C (68°F)	2.8 to 3.5 Ω

Standard Resistance (for Type B):

Tester Connection	Condition	Specified Condition
O20-6 - C-3	Seat heater temperature 20°C (68°F)	Below 1 Ω
O20-7 - C-2	Seat heater temperature 20°C (68°F)	1.53 to 1.87 Ω
O20-5 - C-1	Seat heater temperature 20°C (68°F)	2.61 to 3.19 Ω

If the result is not as specified, replace the front seat cushion heater (separate type front seat cushion cover).
