RM3660EC _58 Vehicle Interior _080732 SEAT _0391520 FRONT POWER SEAT MOTOR ASSEMBLY G

SEAT  FRONT POWER SEAT MOTOR ASSEMBLY  INSPECTION


PROCEDURE

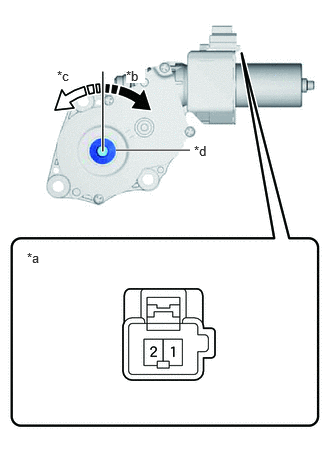

Hide 1.INSPECT POWER SEAT LIFTER MOTOR ASSEMBLY LH

a.
B520170C01
1.208,1.563 1.979,1.563 true 0.281,2.604 0.594,2.76 0.313,0.156 10 false *a 1.313,0.708 1.51,0.865 0.198,0.156 10 true *b 0.594,0.708 0.906,0.865 0.313,0.156 10 false *c 2.021,1.49 2.208,1.656 0.188,0.167 10 false *d
*a Component without harness connected
(Power Seat Lifter Motor Assembly LH)
*b Clockwise
*c Counterclockwise
*d Motor Gear


Check the operation of the power seat lifter motor assembly LH.

i.

Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

OK:
Auxiliary Battery Connection Operational Direction
Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 2 		Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 2
Auxiliary battery negative (-) → Terminal 1 		Motor gear rotates clockwise


If the result is not as specified, replace the power seat lifter motor assembly LH.



Hide 2.INSPECT POWER SEAT TILT MOTOR ASSEMBLY LH (for 8 Way Seat Type)

a.
B520171C01
1.458,1.073 2.229,1.073 true 0.281,2.604 0.594,2.76 0.313,0.156 10 false *a 1.531,0.24 1.729,0.396 0.198,0.156 10 true *b 0.938,0.219 1.25,0.375 0.313,0.156 10 false *c 2.26,1 2.448,1.167 0.188,0.167 10 false *d
*a Component without harness connected
(Power Seat Tilt Motor Assembly LH)
*b Clockwise
*c Counterclockwise
*d Motor Gear


Check the operation of the power seat tilt motor assembly LH.

i.

Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

OK:
Auxiliary Battery Connection Operational Direction
Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 2 		Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 2
Auxiliary battery negative (-) → Terminal 1 		Motor gear rotates clockwise


If the result is not as specified, replace the power seat tilt motor assembly LH.
