SEAT  POWER SEAT SWITCH  INSPECTION

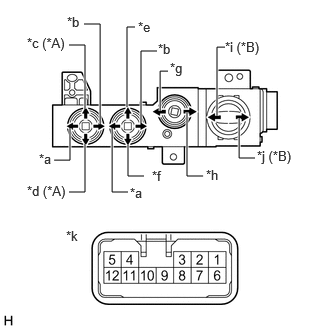

0.885,1.135 0.885,0.469 0.885,0.469 0.719,0.469 true 1.042,1.292 1.042,0.25 1.042,0.25 0.875,0.25 true 1.323,1.115 1.323,0.281 1.323,0.281 1.406,0.281 true 1.469,1.281 1.469,0.531 1.469,0.531 1.635,0.531 true 1.667,1.156 1.667,0.74 1.667,0.74 1.75,0.74 true 2.26,1.208 2.26,0.49 2.26,0.49 2.344,0.49 true 2.49,1.229 2.49,1.646 2.49,1.646 2.656,1.646 true 1.948,1.167 1.948,1.833 1.948,1.833 2.115,1.833 true 1.333,1.5 1.333,1.833 1.333,1.833 1.5,1.833 true 1.167,1.333 1.167,2 1.167,2 1.333,2 false 1.167,1.333 1.167,2 1.167,2 1.333,2 true 0.885,1.5 0.885,2 0.885,2 0.719,2 true 0.729,1.333 0.729,1.667 0.729,1.667 0.563,1.667 true 0.406,1.573 0.719,1.729 0.313,0.156 10 false *a 0.698,0.146 1.01,0.302 0.313,0.156 10 false *b 0.281,0.365 0.958,0.708 0.677,0.344 10 false *c (*A) 0.281,1.906 0.844,2.188 0.563,0.281 10 false *d (*A) 1.438,0.198 1.75,0.354 0.313,0.156 10 false *e 1.583,1.75 1.896,1.906 0.313,0.156 10 false *f 1.771,0.625 2.083,0.875 0.313,0.25 10 false *g 2.146,1.74 2.458,1.896 0.313,0.156 10 false *h 2.344,0.406 3.052,0.656 0.708,0.25 10 false *i (*B) 2.677,1.542 3.292,1.823 0.615,0.281 10 false *j (*B) 0.688,2.375 1,2.531 0.313,0.156 10 false *k 1.354,1.927 1.667,2.083 0.313,0.156 10 false *a 1.646,0.427 1.958,0.583 0.313,0.156 10 false *b

*A	for 8 Way Seat Type
*B	w/ Lumbar Support
*a	Slide Switch (Front)
*b	Slide Switch (Rear)
*c	Front Vertical Switch (Up)
*d	Front Vertical Switch (Down)
*e	Lifter Switch (Up)
*f	Lifter Switch (Down)
*g	Reclining Switch (Front)
*h	Reclining Switch (Rear)
*i	Lumbar Support Switch (Hold)
*j	Lumbar Support Switch (Release)
*k	Component without harness connected (Front Power Seat Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance (except 8 Way Seat Type):

Slide Switch

Tester Connection	Condition	Specified Condition
4 - 6	Slide switch pressed (Front)	Below 1 Ω
1 - 12
4 - 12	Off
1 - 12
1 - 6	Slide switch pressed (Rear)
4 - 12

Lifter Switch

Tester Connection	Condition	Specified Condition
8 - 6	Lifter switch pressed (Up)	Below 1 Ω
10 - 12
10 - 12	Off
8 - 12
10 - 6	Lifter switch pressed (Down)
8 - 12

Reclining Switch

Tester Connection	Condition	Specified Condition
5 - 6	Reclining switch pressed (Front)	Below 1 Ω
3 - 12
5 - 12	Off
3 - 12
3 - 6	Reclining switch pressed (Rear)
5 - 12
6 - 8
6 - 10

Lumbar Support Switch (w/ Lumbar Support)

Tester Connection	Condition	Specified Condition
9 - 6	Lumbar support switch pressed (Hold)	Below 1 Ω
2 - 12
2 - 12	Off
9 - 12
2 - 6	Lumbar support switch pressed (Release)
9 - 12

Standard Resistance (for 8 Way Seat Type):

Slide Switch

Tester Connection	Condition	Specified Condition
4 - 6	Slide switch pressed (Front)	Below 1 Ω
1 - 12
4 - 12	Off
1 - 12
1 - 6	Slide switch pressed (Rear)
4 - 12

Front Vertical Switch

Tester Connection	Condition	Specified Condition
7 - 6	Front vertical switch pressed (Up)	Below 1 Ω
11 - 12
7 - 12	Off
11 - 12
11 - 6	Front vertical switch pressed (Down)
7 - 12

Lifter Switch

Tester Connection	Condition	Specified Condition
8 - 6	Lifter switch pressed (Up)	Below 1 Ω
10 - 12
10 - 12	Off
8 - 12
10 - 6	Lifter switch pressed (Down)
8 - 12

Reclining Switch

Tester Connection	Condition	Specified Condition
5 - 6	Reclining switch pressed (Front)	Below 1 Ω
6 - 7
6 - 11
3 - 12
5 - 12	Off
3 - 12
3 - 6	Reclining switch pressed (Rear)
5 - 12
6 - 8
6 - 10

If the result is not as specified, replace the front power seat switch.

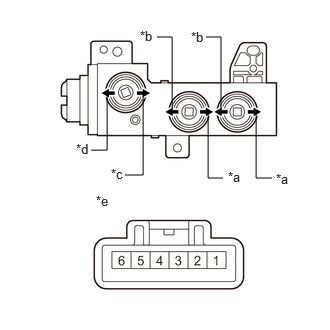

0.948,1.563 1.115,1.563 1.115,1.563 1.115,0.979 false 1.302,1.823 1.49,1.823 1.49,1.823 1.49,0.99 false 2.302,1.135 2.302,0.385 2.302,0.385 2.146,0.385 false 1.792,1.135 1.792,0.385 1.792,0.385 1.635,0.385 false 2.833,1.854 2.667,1.854 2.667,1.854 2.667,1.188 false 2.323,1.854 2.167,1.854 2.167,1.854 2.167,1.188 false 2.875,1.781 3.188,1.938 0.313,0.156 10 false *a 1.458,0.292 1.771,0.448 0.313,0.156 10 false *b 1.156,1.729 1.49,1.979 0.333,0.25 10 false *c 0.792,1.469 1.104,1.625 0.313,0.156 10 false *d 1,2.01 1.313,2.167 0.313,0.156 10 false *e 2.375,1.76 2.688,1.958 0.313,0.198 10 false *a 1.99,0.302 2.302,0.5 0.313,0.198 10 false *b

*a	Slide Switch (Front)
*b	Slide Switch (Rear)
*c	Reclining Switch (Front)
*d	Reclining Switch (Rear)
*e	Component without harness connected (Front Power Seat Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Slide Switch

Tester Connection	Condition	Specified Condition
4 - 6	Slide switch pressed (Front)	Below 1 Ω
1 - 5
1 - 4	Off
1 - 5
1 - 4	Slide switch pressed (Rear)
5 - 6

Reclining Switch

Tester Connection	Condition	Specified Condition
2 - 6	Reclining switch pressed (Front)	Below 1 Ω
1 - 3
1 - 3	Off
1 - 2
1 - 2	Reclining switch pressed (Rear)
3 - 6

If the result is not as specified, replace the front power seat switch.
