RM3660EC _58 Vehicle Interior _080732 SEAT _0391518 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 72125M 3.INSTALL SEAT TRACK UPPER NO. 3 COVER

a.

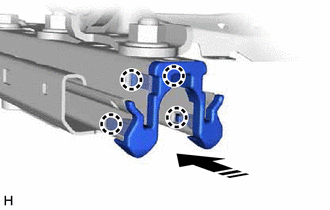

B518996
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the seat track upper No. 3 cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 72266 4.INSTALL SEAT TRACK UPPER RAIL COVER

a.

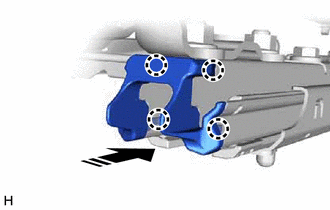

B518994
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 71873A 5.INSTALL FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

a.

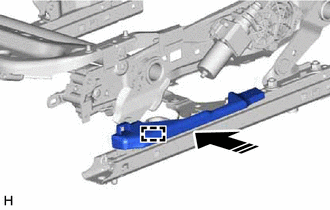

B439746
0,0 0,0 false
V113147

Install in this Direction


Engage the guide as shown in the illustration.


b.
B439744

Engage the claw to install the front seat lower cushion shield.


Hide 7181B 6.INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER

a.

for Driver Side:

i.

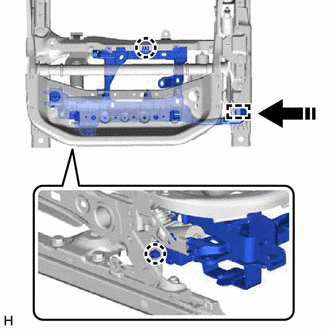

B439747
0,0 0,0 false
V113147

Install in this Direction


Engage the guide as shown in the illustration.


ii.

Engage the 2 claws to install the front seat cushion wire harness holder.


iii.
B439742

Install the 2 screws.



b.

for Front Passenger Side:

i.
B481281

Engage the claw to install the front seat cushion wire harness holder.


ii.

Install the 2 screws.



Hide 71052A 7.INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.
B439741

Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.


Hide 82192 8.INSTALL FRONT SEAT WIRE

a.

Connect each connector and engage each clamp to install the front seat wire.


Hide 71873A 9.INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.
B439739C01
2.333,0.635 3.115,0.635 true 2.063,1.698 2.865,1.698 true 3.146,0.542 3.333,0.74 0.188,0.198 10 false *a 2.917,1.625 3.229,1.781 0.313,0.156 10 false *b
*a Hook
*b Guide


Engage the claw and guide to install the front seat lower cushion shield LH.


b.

Engage the hook.


Hide 71873A 10.INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

a.
B439740C01
2.5,0.281 3.094,0.281 true 2.135,1.625 2.917,1.625 false 3.135,0.188 3.333,0.375 0.198,0.188 10 false *a 2.948,1.552 3.26,1.708 0.313,0.156 10 false *b
*a Hook
*b Guide


Engage the claw and guide to install the front seat lower cushion shield RH.


b.

Engage the hook.


Hide 71876G 11.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Driver Side)

a.
B439737

Engage the 4 claws to install the LH seat reclining adjuster inside cover LH.


b.
B439736

Engage the claw.


Hide 71875G 12.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Driver Side)

a.
B439738

Engage the 4 claws to install the LH seat reclining adjuster inside cover RH.


Hide 71876F 13.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Front Passenger Side)

a.
B481284

Engage the 4 claws to install the RH seat reclining adjuster inside cover LH.


Hide 71875F 14.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Front Passenger Side)

a.
B481283

Engage the 4 claws to install the RH seat reclining adjuster inside cover RH.


b.
B481282

Engage the claw and clamp.


Hide 71072S 15.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

a.

for Standard Seat Type:

i.
B534109

Engage the 12 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad. (for Type A)


ii.
B678906

Engage the 12 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad. (for Type B)



b.

for Sporty Seat Type:

i.
B678905

Engage the 12 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.



Hide 82667D 16.INSTALL CONNECTOR HOLDER (for Front Passenger Side)

a.
B477939
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the connector holder to the occupant detection sensor wire harness as shown in the illustration.


Hide 17.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

Engage the 10 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

B439735


b.

w/ Seat Heater System:

i.
B490192

Engage the clamp to install the wire harness.


ii.

Connect the connector.



c.

for Front Passenger Side:

i.
B477937
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the connector holder as shown in the illustration.



Hide 72554 18.INSTALL RECLINING COVER PROTECTOR LH (w/ Protector)

a.

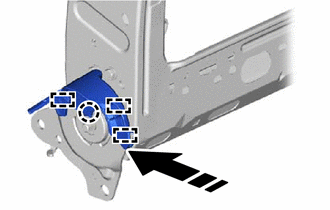

B725435
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 guides and claw to install the reclining cover protector LH as shown in the illustration.


Hide 19.INSTALL FRONT SEAT NO. 2 WIRE

a.
B551915

Engage the 2 clamps to install the front seat No. 2 wire.


b.

w/o Lumbar Support:

i.

Connect the connector.



Hide 71588 20.INSTALL FRONT NO. 2 SEATBACK EDGE PROTECTOR (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>INSTALLATION

Hide 72760D 22.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>INSTALLATION

Hide 71074S 24.INSTALL SEPARATE TYPE FRONT SEATBACK COVER

a.

for Standard Seat Type:

i.
B534110

Engage the 14 claws to install the separate type front seatback cover to the separate type front seatback pad. (for Type A)


ii.
B678908

Engage the 14 claws to install the separate type front seatback cover to the separate type front seatback pad. (for Type B)



b.

for Sporty Seat Type:

i.
B678907

Engage the 15 claws to install the separate type front seatback cover to the separate type front seatback pad.



Hide 25.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Install the separate type front seatback cover with pad.


Hide 71931 26.INSTALL FRONT SEAT HEADREST SUPPORT

a.
B537760

Engage the 4 claws to install the 2 front seat headrest supports.


b.
B429322

Close the 2 fasteners.


c.

w/ Seat Heater System:

i.
B520281

Engage the clamp.



d.
B520280

Engage the 3 hooks.


Hide 27.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.
B537759

Engage the 4 guides.


b.

Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


c.

for Driver Side:

i.
B439730

Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.




d.

for Front Passenger Side:

i.
B492236

Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.




e.

w/ Seat Heater System:

i.
B439729

Engage the clamp.


ii.

Connect the connector.



f.
B439728

Engage the clamp.


g.

Connect the connector.


h.
B521755

Engage the 2 hooks.


i.
B447549

Pass the separate type front seatback cover through the grooves of the LH seat reclining adjuster inside cover LH and LH seat reclining adjuster inside cover RH.


Hide 72714 29.INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

a.
B439726

Install the seat adjuster shield clamp bracket to the front seat cushion shield with the 2 screws.


Hide 84921A 30.INSTALL RECLINING POWER SEAT SWITCH KNOB

a.

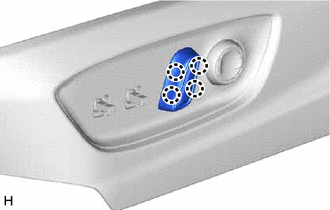

B439748

Engage the 4 claws to install the reclining power seat switch knob.


Hide 84921B 31.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

a.

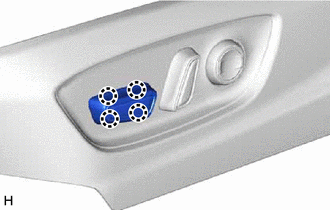

B439749

Engage the 4 claws to install the slide and vertical power seat switch knob.


Hide 32.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.
B439696
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws and 2 guides as shown in the illustration.


b.
B439673

Engage the 2 claws to install the front seat inner cushion shield.


Hide 71812D 33.INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)

a.
B439723

Connect the front power seat switch connector.


b.

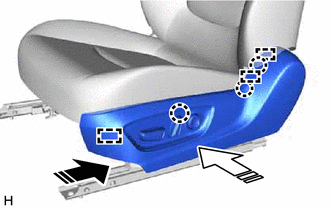

B543265
0.354,1.417 1,1.417 true 1.458,0.542 2.656,0.542 true 1.99,0.552 1.99,0.792 1.99,0.792 2.49,0.792 true 0.229,1.354 0.385,1.552 0.156,0.198 10 false A 1.302,0.469 1.438,0.688 0.135,0.219 10 true B
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide (A) as shown in the illustration.


c.

Engage the 3 claws and 2 guides (B) as shown in the illustration.


d.
B439720

Engage the 2 claws to install the front seat cushion shield.


Hide 71862 34.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

a.

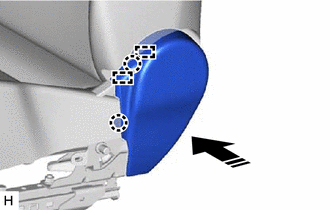

B678921
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws and 2 guides as shown in the illustration.


b.
B678917

Engage the 3 claws to install the front seat inner cushion shield.


Hide 71812D 35.INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

a.

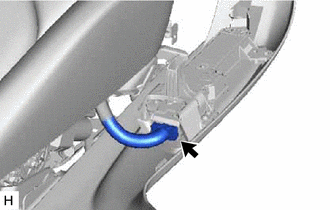

B485451

Connect the front power seat switch connector.


b.

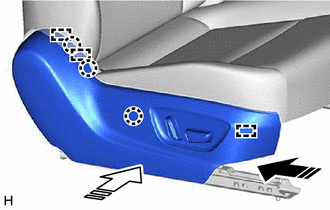

B682779
0.729,0.333 1.729,0.333 true 0.938,0.583 1.271,0.583 1.271,0.583 1.271,0.333 true 2.656,1.323 3,1.323 true 1.708,0.25 1.896,0.448 0.188,0.198 10 true B 3.031,1.25 3.219,1.448 0.188,0.198 10 true A
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide (A) as shown in the illustration.


c.

Engage the 3 claws and 2 guides (B) as shown in the illustration.


d.
B678913

Engage the 3 claws to install the front seat cushion shield.


Hide 71868N 36.INSTALL FRONT SEAT FRONT CUSHION SHIELD

a.
B481285

Engage the 3 guides.


b.

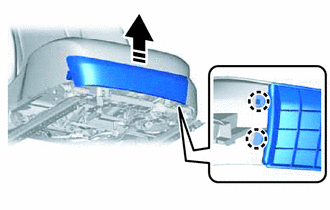

B471109
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.


c.

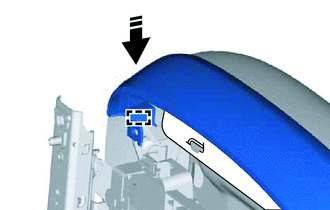

B471110
0,0 0,0 false
V113147

Install in this Direction


Engage the guide as shown in the illustration.


d.
B439716

Install the front seat front cushion shield with the clip.


Hide 71074S 37.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.
B439715

Connect the rubber band of the separate type front seatback cover.


Hide 73230 39.INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY>INSTALLATION
