RM3660EC _58 Vehicle Interior _080732 SEAT _0391518 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 71074S 3.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.

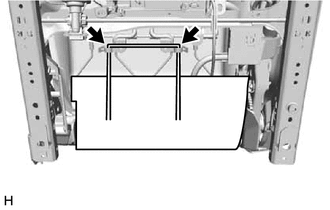

B439715

Disconnect the rubber band of the separate type front seatback cover.


Hide 71868N 4.REMOVE FRONT SEAT FRONT CUSHION SHIELD

a.

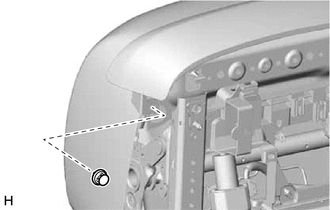

B439716

Remove the clip.


b.

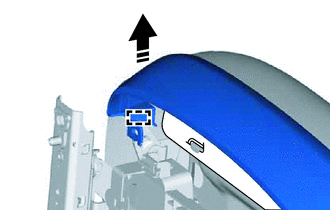

B471111C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide as shown in the illustration.


c.

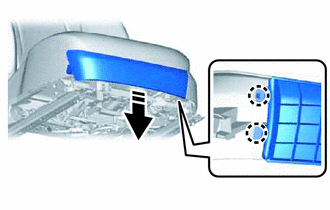

B471112C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws as shown in the illustration.


d.

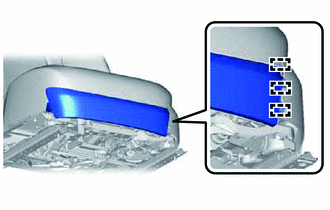

B481285

Disengage the 3 guides to remove the front seat front cushion shield.


Hide 71812D 5.REMOVE FRONT SEAT CUSHION SHIELD (for Driver Side)

a.
B439720

Disengage the 2 claws.


b.

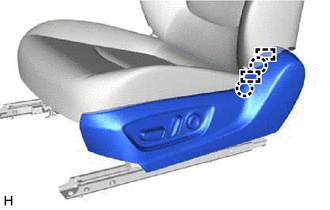

B543262

Disengage the 2 claws and 2 guides.


c.

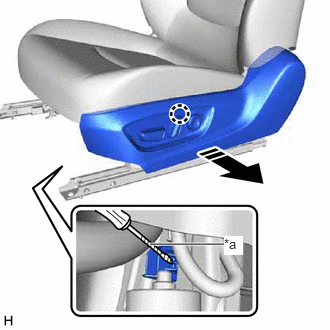

B543263C02
1.563,2.542 2.365,2.542 true 2.333,2.458 2.531,2.656 0.198,0.198 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.


d.

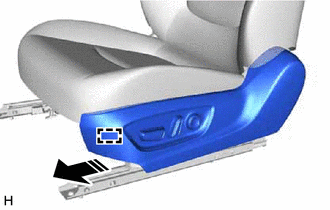

B543264C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide as shown in the illustration.


e.

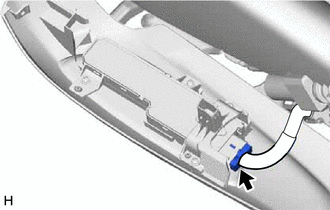

B439723

Disconnect the front power seat switch connector to remove the front seat cushion shield.


Hide 71862 6.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.
B439673

Disengage the 2 claws.


b.

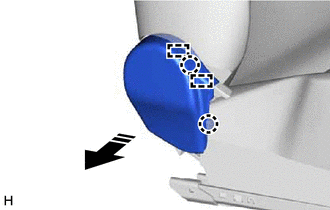

B439674C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield as shown in the illustration.


Hide 71811D 7.REMOVE FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

a.

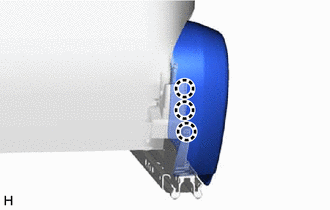

B678913

Disengage the 3 claws.


b.

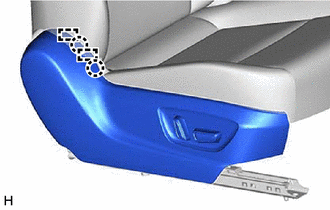

B678914

Disengage the 2 claws and 2 guides.


c.

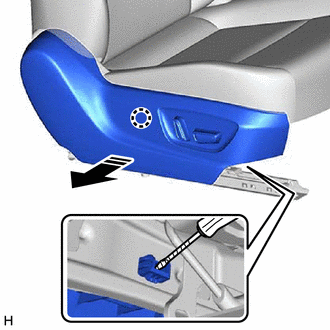

B678915
1.771,2.677 2.208,2.677 true 2.208,2.573 2.406,2.771 0.198,0.198 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.


d.

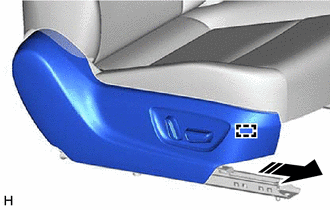

B678920
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide as shown in the illustration.


e.

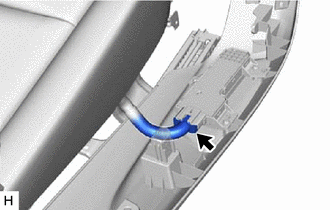

B678916

Disconnect the front power seat switch connector to remove the front seat cushion shield.


Hide 71861 8.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

a.

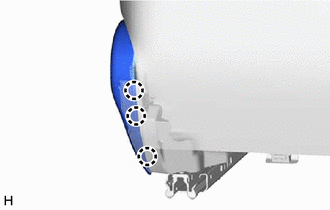

B678917

Disengage the 3 claws.


b.

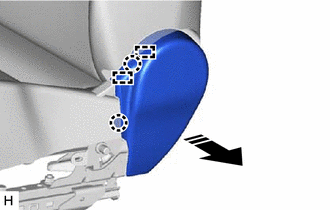

B678918
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield as shown in the illustration.


Hide 84921B 9.REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

a.

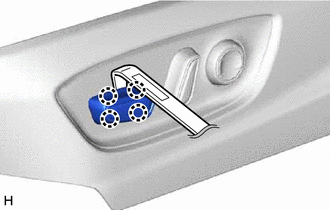

B439724

Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.


Hide 84921A 10.REMOVE RECLINING POWER SEAT SWITCH KNOB

a.

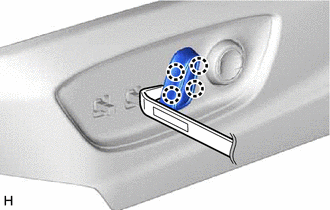

B439725

Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.


Hide 72714 11.REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

a.

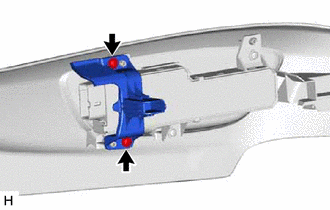

B439726

Remove the 2 screws and seat adjuster shield clamp bracket from the front seat cushion shield.


Hide 13.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

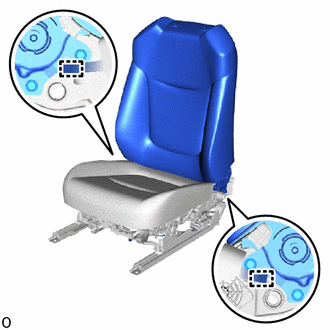

B521755

Disengage the 2 hooks.


b.

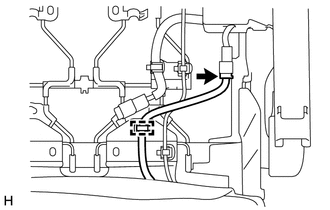

B439728

Disconnect the connector.


c.

Disengage the clamp.


d.

w/ Seat Heater System:

i.

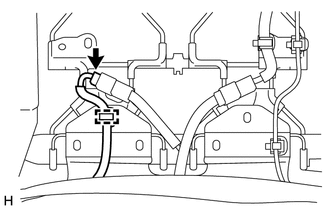

B439729

Disconnect the connector.


ii.

Disengage the clamp.



e.

for Driver Side:

i.

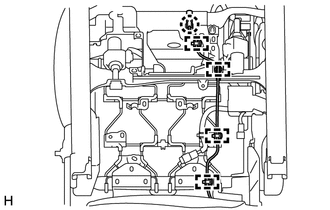

B439730

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:

Disengage the 4 clamps first.




f.

for Front Passenger Side:

i.

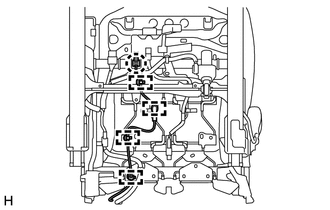

B492236

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:

Disengage the 4 clamps first.




g.

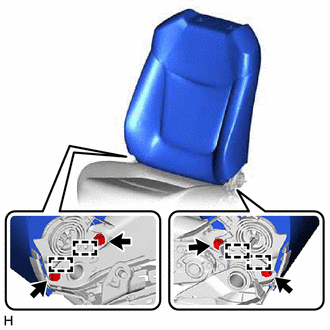

B537759

Remove the 4 bolts.


h.

Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.


Hide 71931 14.REMOVE FRONT SEAT HEADREST SUPPORT

a.
B520280

Disengage the 3 hooks.


b.

w/ Seat Heater System:

i.

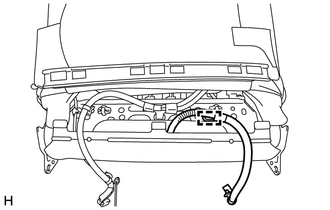

B520281

Disengage the clamp.



c.

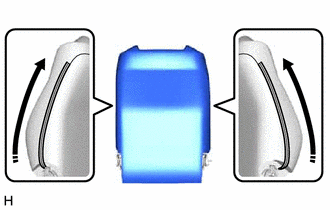

B429321

Open the 2 fasteners.


d.

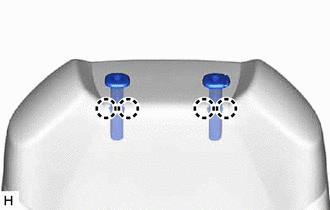

B537760

Disengage the 4 claws and remove the 2 front seat headrest supports.


Hide 15.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Remove the separate type front seatback cover with pad.


Hide 71074S 16.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

a.

for Standard Seat Type:

i.

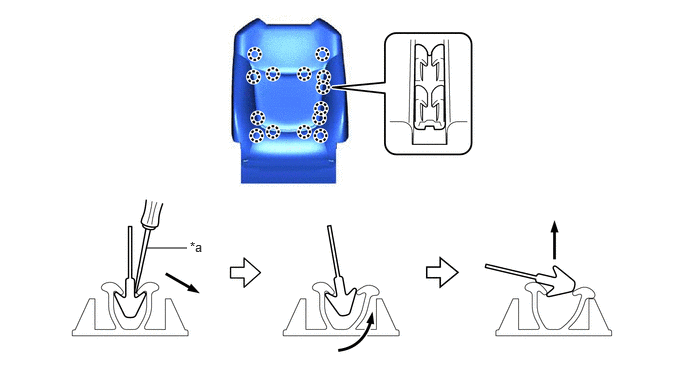

Using a screwdriver, disengage the 14 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type A)

B534107C01
1.521,2.583 1.948,2.583 false 1.979,2.49 2.292,2.688 0.313,0.198 10 false *a
*a Screwdriver - -



ii.

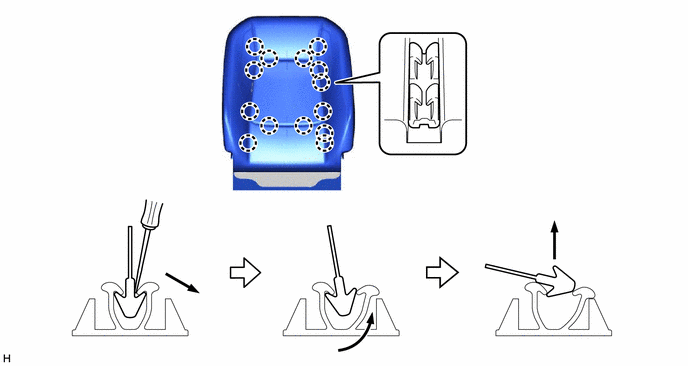

Using a screwdriver, disengage the 14 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type B)

B678901
1.521,2.583 1.948,2.583 false 1.979,2.49 2.292,2.688 0.313,0.198 10 false *a
*a Screwdriver - -




b.

for Sporty Seat Type:

i.

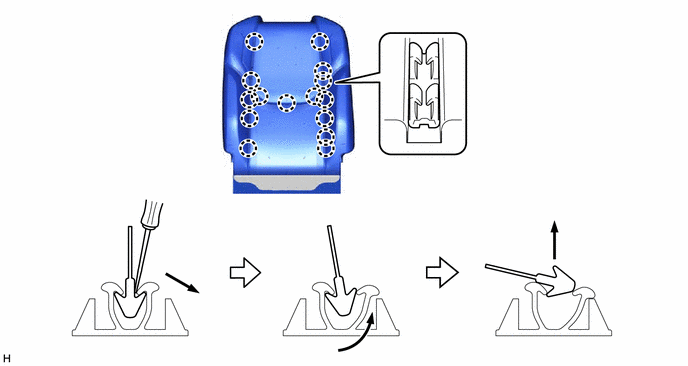

Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

B678902
1.49,2.583 1.917,2.583 false 1.958,2.448 2.271,2.646 0.313,0.198 10 false *a
*a Screwdriver - -




Hide 72760D 18.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>REMOVAL

Hide 71588 20.REMOVE FRONT NO. 2 SEATBACK EDGE PROTECTOR (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>REMOVAL

Hide 21.REMOVE FRONT SEAT NO. 2 WIRE

a.

w/o Lumbar Support:

i.

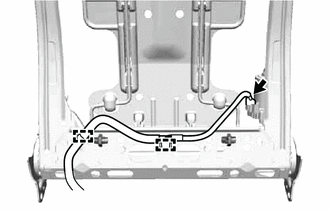

B551915

Disconnect the connector.



b.

Disengage the 2 clamps to remove the front seat No. 2 wire.


Hide 72554 22.REMOVE RECLINING COVER PROTECTOR LH (w/ Protector)

a.

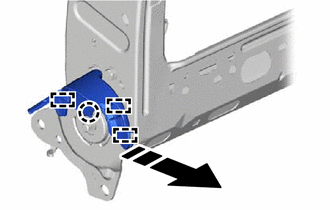

B725434
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw and 3 guides to remove the reclining cover protector LH as shown in the illustration.


Hide 23.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

for Front Passenger Side:

i.

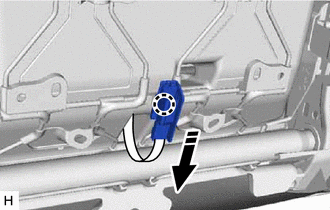

B477936C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to separate the connector holder as shown in the illustration.



b.

w/ Seat Heater System:

i.

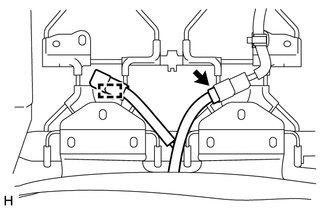

B490192

Disconnect the connector.


ii.

Disengage the clamp to separate the wire harness.



c.

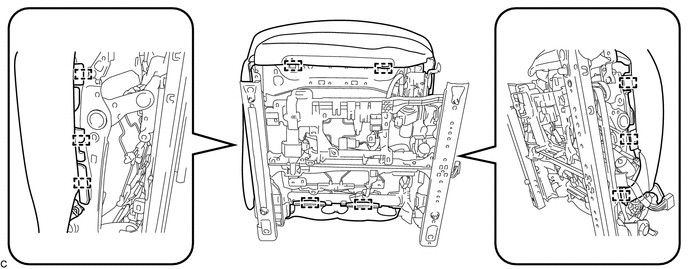

Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

B439735


Hide 82667D 24.REMOVE CONNECTOR HOLDER (for Front Passenger Side)

a.

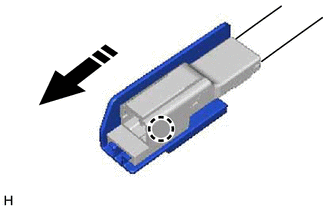

B477938C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to remove the connector holder from the occupant detection sensor wire harness as shown in the illustration.


Hide 71072S 25.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

a.

for Standard Seat Type:

i.

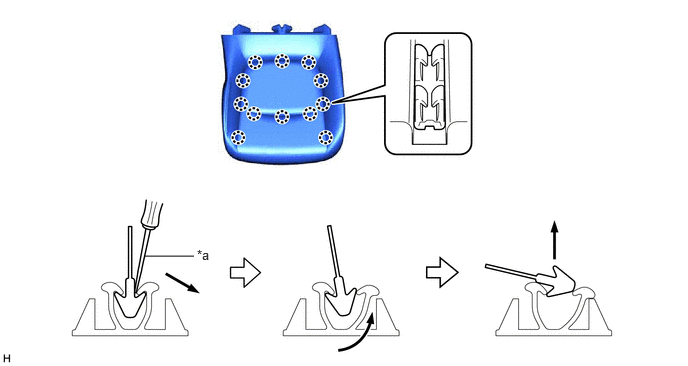

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type A)

B534108C01
1.5,2.667 2.021,2.667 false 2.052,2.573 2.365,2.729 0.313,0.156 10 false *a
*a Screwdriver - -



ii.

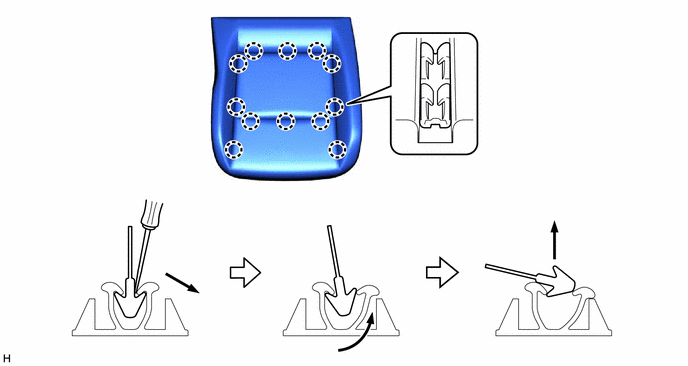

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type B)

B678903
1.5,2.667 2.021,2.667 false 2.052,2.573 2.365,2.729 0.313,0.156 10 false *a
*a Screwdriver - -




b.

for Sporty Seat Type:

i.

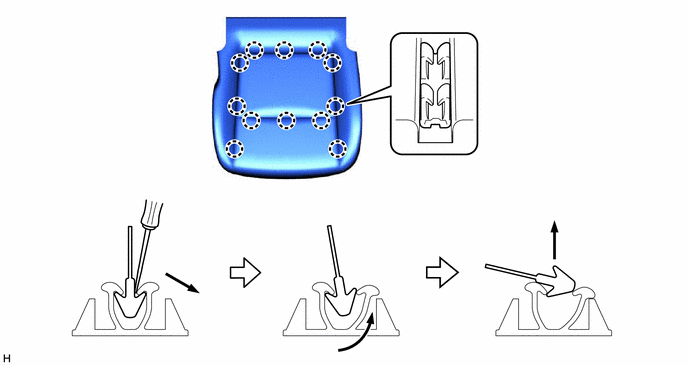

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

B678904
1.5,2.667 2,2.667 false 2.021,2.552 2.333,2.75 0.313,0.198 10 false *a
*a Screwdriver - -




Hide 71876G 26.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Driver Side)

a.

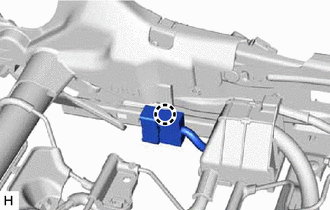

B439736

Disengage the claw.


b.

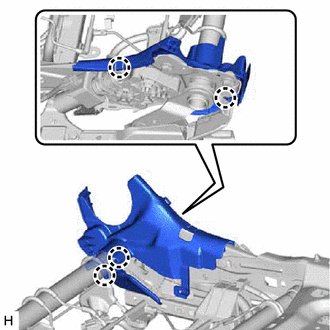

B439737

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover LH.


Hide 71875G 27.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Driver Side)

a.

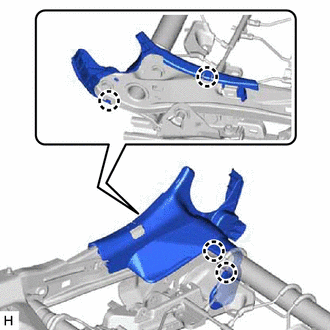

B439738

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover RH.


Hide 71876F 28.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Front Passenger Side)

a.

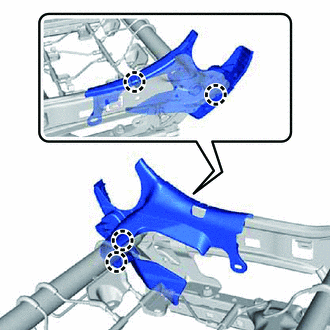

B481284

Disengage the 4 claws to remove the RH seat reclining adjuster inside cover LH.


Hide 71875F 29.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Front Passenger Side)

a.

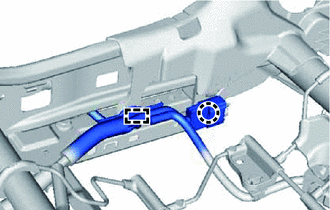

B481282

Disengage the clamp and claw.


b.

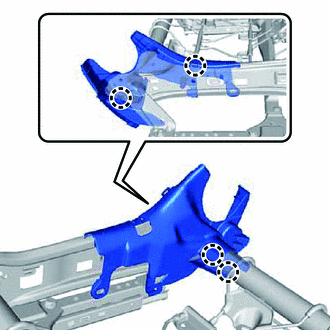

B481283

Disengage the 4 claws to remove the RH seat reclining adjuster inside cover RH.


Hide 71873A 30.REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.

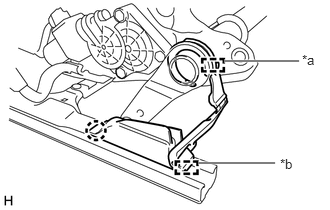

B439739C01
2.333,0.635 3.115,0.635 true 2.063,1.698 2.865,1.698 true 3.146,0.542 3.333,0.74 0.188,0.198 10 false *a 2.917,1.625 3.229,1.781 0.313,0.156 10 false *b
*a Hook
*b Guide


Disengage the hook.


b.

Disengage the claw and guide to remove the front seat lower cushion shield LH.


Hide 71873A 31.REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

a.

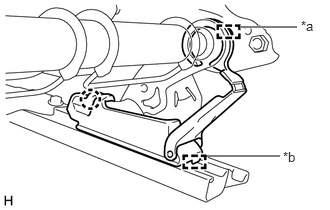

B439740C01
2.5,0.281 3.094,0.281 true 2.135,1.625 2.917,1.625 false 3.135,0.188 3.333,0.375 0.198,0.188 10 false *a 2.948,1.552 3.26,1.708 0.313,0.156 10 false *b
*a Hook
*b Guide


Disengage the hook.


b.

Disengage the claw and guide to remove the front seat lower cushion shield RH.


Hide 82192 32.REMOVE FRONT SEAT WIRE

a.

Disconnect each connector and disengage each clamp to remove the front seat wire.


Hide 71052A 33.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.

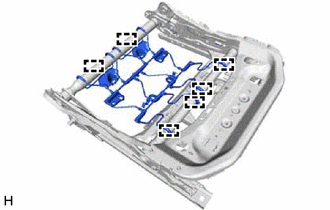

B439741

Disengage the 6 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.


Hide 7181B 34.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER

a.

for Driver Side:

i.

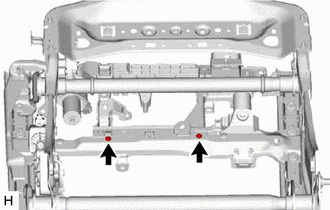

B439742

Remove the 2 screws.


ii.

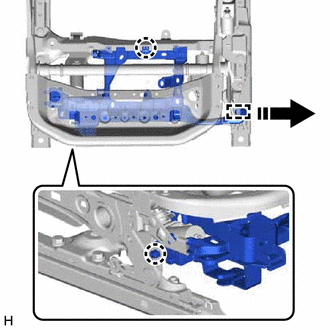

B439743C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws.


iii.

Disengage the guide to remove the front seat cushion wire harness holder as shown in the illustration.



b.

for Front Passenger Side:

i.

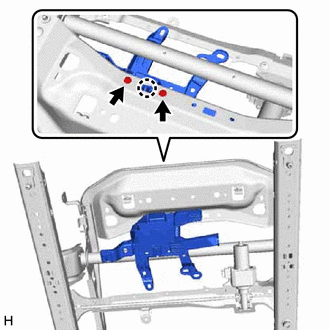

B481281

Remove the 2 screws.


ii.

Disengage the claw to remove the front seat cushion wire harness holder.



Hide 71873A 35.REMOVE FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

a.

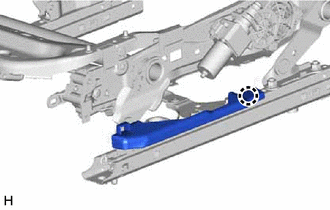

B439744

Disengage the claw.


b.

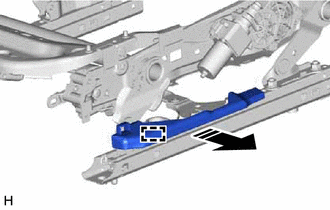

B439745C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide to remove the front seat lower cushion shield.


Hide 72266 36.REMOVE SEAT TRACK UPPER RAIL COVER

a.

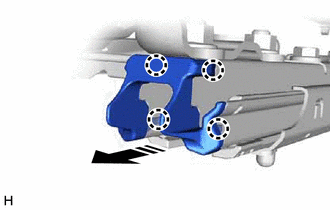

B518993C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws to remove the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 72125M 37.REMOVE SEAT TRACK UPPER NO. 3 COVER

a.

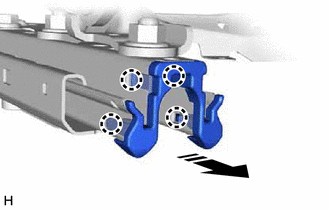

B518995C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws to remove the seat track upper No. 3 cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 38.REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY (except 4 Way Seat Type)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT MOTOR ASSEMBLY>REMOVAL
