SEAT  FRONT SEAT ASSEMBLY(for Manual Seat)  DISASSEMBLY

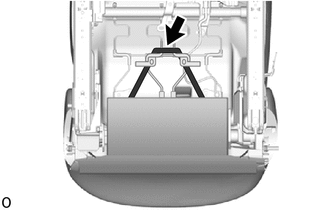

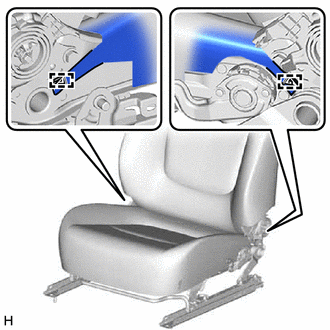

Disconnect the rubber band of the separate type front seatback cover.

1.646,0.594 2.396,0.594 true 2.406,0.479 2.719,0.677 0.313,0.198 10 false *a

*a	Protective Tape
	Remove in this Direction

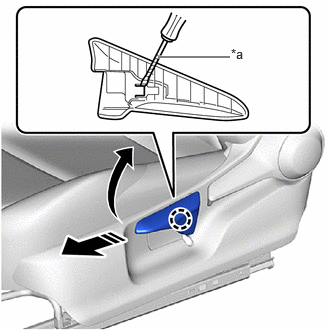

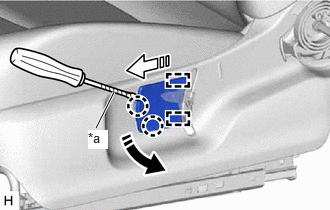

Operate the vertical adjusting handle LH and using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the vertical adjusting handle LH as shown in the illustration.

2.042,1.51 2.042,0.76 true 1.99,1.542 2.302,1.698 0.313,0.156 10 false *a

*a	Protective Tape

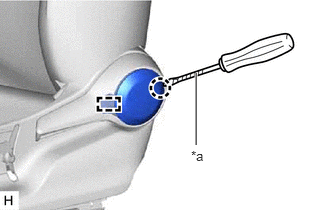

Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

0,0 0,0 false

Remove in this Direction

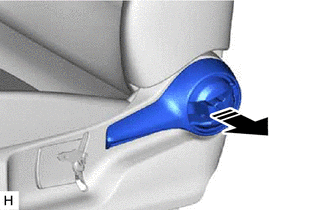

Remove the reclining adjuster release handle as shown in the illustration.

1,1.333 1.188,0.958 true 0.917,1.354 1.125,1.552 0.208,0.198 10 true *a

*a	Protective Tape
	Remove in this Direction (1)
	Remove in this Direction (2)

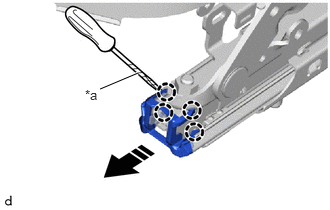

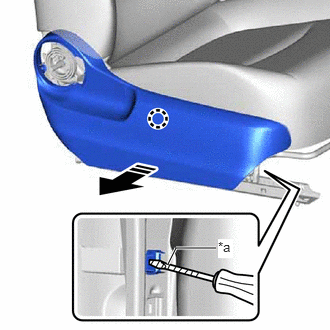

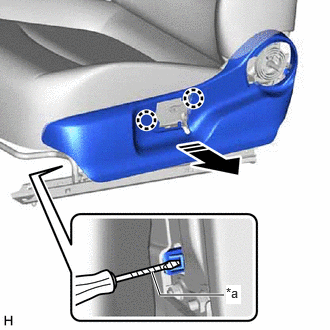

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.

Disengage the 2 claws.

Disengage the claw and 2 guides.

1.583,2.833 1.667,3.073 1.667,3.073 2.333,3.073 true 2.354,2.969 2.51,3.167 0.156,0.198 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.

0,0 0,0 false

Remove in this Direction

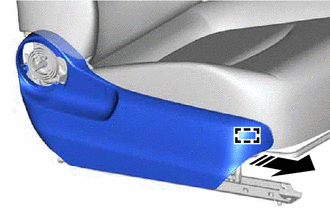

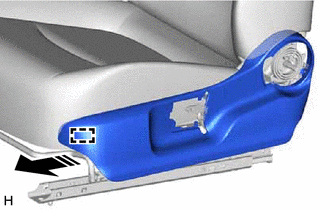

Disengage the guide as shown in the illustration.

Disengage the 2 claws.

0,0 0,0 false

Remove in this Direction

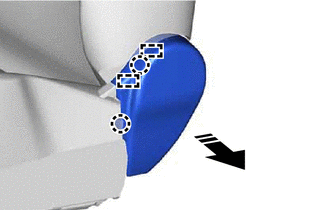

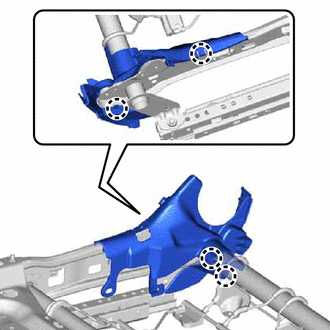

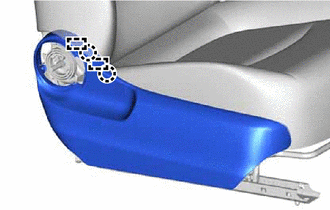

Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield as shown in the illustration.

Disengage the 2 claws.

Disengage the 2 claws and 2 guides.

1.75,2.75 1.833,2.583 1.833,2.583 2.25,2.583 true 2.271,2.49 2.427,2.688 0.156,0.198 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

0,0 0,0 false

Remove in this Direction

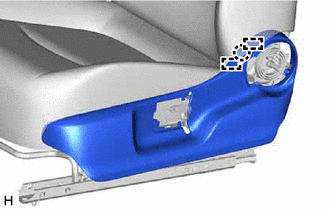

Disengage the guide to remove the front seat cushion shield as shown in the illustration.

Disengage the 3 claws.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield as shown in the illustration.

Disengage the 2 hooks.

w/ Seat Heater System:

i.

Disconnect the connector.

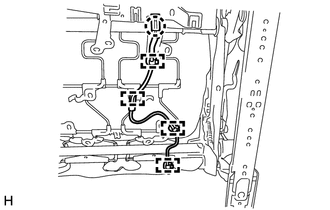

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:

Disengage the 4 clamps first.

Remove the 4 bolts.

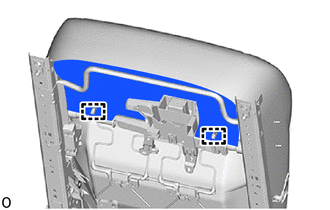

Disengage the 3 hooks.

w/ Seat Heater System:

i.

Disengage the clamp.

Open the 2 fasteners.

Disengage the 4 claws and remove the 2 front seat headrest supports.

for Standard Seat Type:

i.

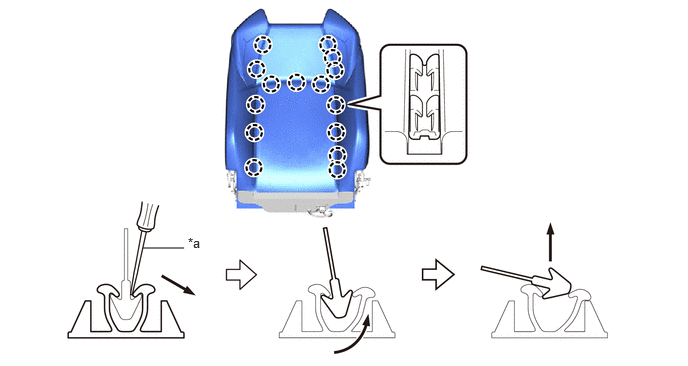

Using a screwdriver, disengage the 14 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type A)

1.521,2.583 1.948,2.583 false 1.979,2.49 2.292,2.688 0.313,0.198 10 false *a

*a

Screwdriver

-

-

ii.

Using a screwdriver, disengage the 14 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type B)

1.51,2.521 1.896,2.521 true 1.927,2.427 2.208,2.781 0.281,0.354 10 false *a

*a

Screwdriver

-

-

for Sporty Seat Type:

i.

Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type A)

1.49,2.583 1.917,2.583 false 1.958,2.448 2.271,2.646 0.313,0.198 10 false *a

*a

Screwdriver

-

-

ii.

Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration. (for Type B)

1.51,2.521 1.896,2.521 true 1.927,2.427 2.208,2.781 0.281,0.354 10 false *a

*a

Screwdriver

-

-

0,0 0,0 false

Remove in this Direction

for Front Passenger Side:

ii.

0,0 0,0 false

Remove in this Direction

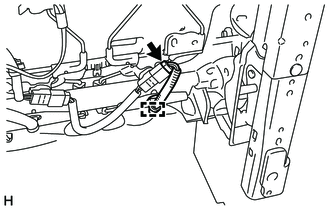

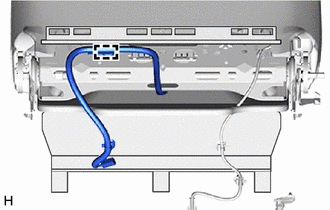

Disengage the claw to remove the connector holder from the occupant detection sensor wire harness as shown in the illustration.

w/ Seat Heater System:

i.

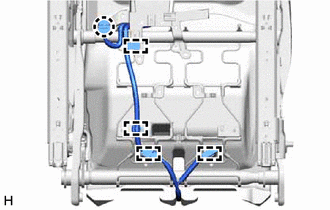

Disengage the claw and 4 clamps.

HINT:

Disengage the 4 clamps first.

Disengage the 2 hooks.

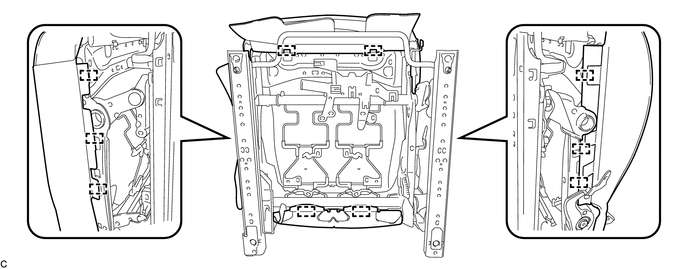

Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

for Standard Seat Type:

i.

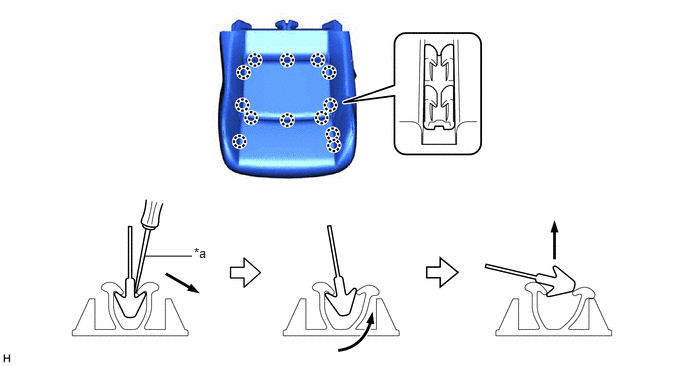

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type A)

1.5,2.667 2.021,2.667 false 2.052,2.573 2.365,2.729 0.313,0.156 10 false *a

*a

Screwdriver

-

-

ii.

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type B)

1.49,2.667 1.99,2.667 true 2.021,2.563 2.333,2.76 0.313,0.198 10 false *a

*a

Screwdriver

-

-

for Sporty Seat Type:

i.

Using a screwdriver, disengage the 13 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type A)

1.5,2.667 2,2.667 false 2.021,2.552 2.333,2.75 0.313,0.198 10 false *a

*a

Screwdriver

-

-

ii.

Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration. (for Type B)

1.49,2.667 1.99,2.667 true 2.021,2.563 2.333,2.76 0.313,0.198 10 false *a

*a

Screwdriver

-

-

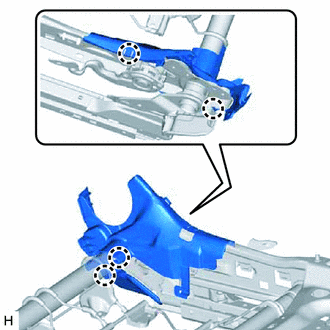

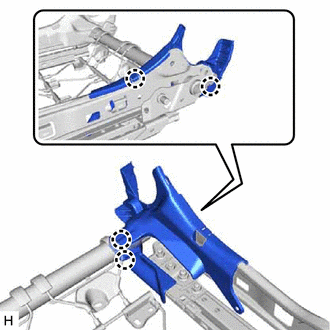

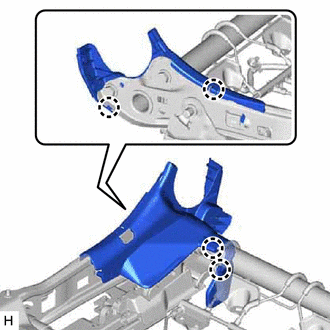

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover LH.

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover RH.

Disengage the 4 claws to remove the RH seat reclining adjuster inside cover LH.

Disengage the 4 claws to remove the RH seat reclining adjuster inside cover RH.

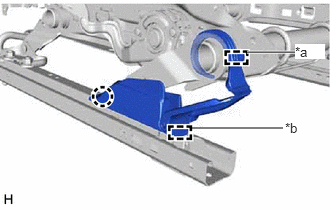

2.573,0.542 3.073,0.542 true 1.979,1.333 2.948,1.333 false 3.073,0.458 3.385,0.615 0.313,0.156 10 true *a 2.969,1.25 3.281,1.406 0.313,0.156 10 false *b

*a	Hook
*b	Guide

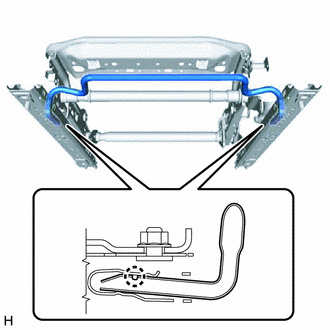

Disengage the hook.

2.083,1.573 2.948,1.573 false 2.5,0.698 3.104,0.698 true 3.125,0.615 3.333,0.802 0.208,0.188 10 false *a 2.979,1.49 3.292,1.646 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Disengage the hook.

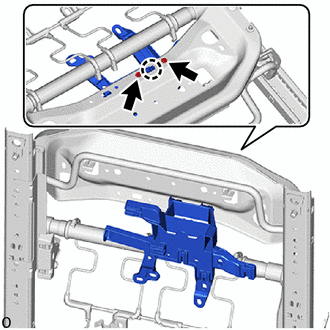

Remove the 2 screws.

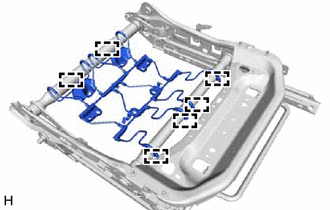

Disengage the 6 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.

2.583,1.552 2.156,1.063 true 2.552,1.583 2.865,1.74 0.313,0.156 10 false *a

*a	Protective Tape
	Remove in this Direction

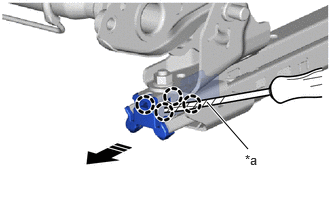

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the seat track upper No. 3 cover as shown in the illustration.

HINT:

Use the same procedure for both sides.

Disengage the 2 claws to remove the seat track adjusting handle from the front seat adjuster assembly.

1.042,0.927 1.438,0.76 true 0.885,0.906 1.198,1.063 0.313,0.156 10 false *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.

Remove the vertical adjuster gear LH.

i.

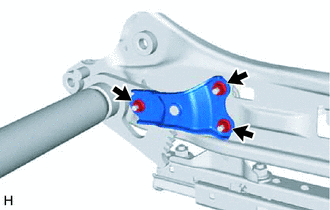

Remove the 3 nuts and vertical adjuster plate.

ii.

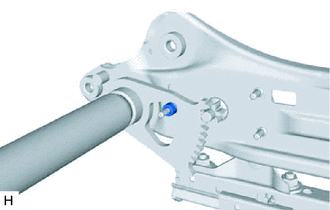

Remove the vertical adjuster spacer.

iii.

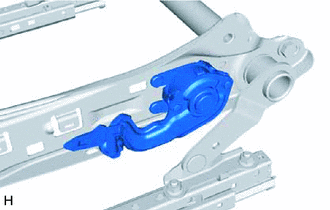

Remove the front vertical adjuster brake sub-assembly.

Disengage the claw to remove the vertical adjuster bracket cover LH from the front vertical adjuster brake sub-assembly.
