RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0392869 POWER OUTLET SOCKET(for Console Box Rear Side) A

POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Console Box Rear Side)  INSTALLATION


PROCEDURE

Hide 85532 1.INSTALL USB CHARGER SOCKET

a.

for Double Socket Type:

i.

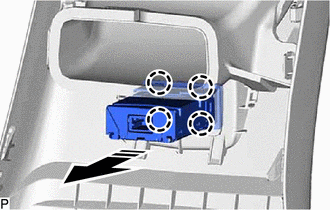

E418345C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the USB charger socket as shown in the illustration.



b.

for Single Socket Type:

i.

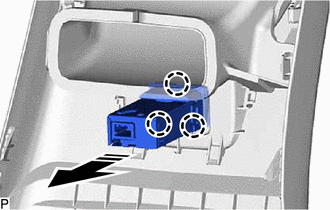

E439424C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 claws to install the USB charger socket as shown in the illustration.
