RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0392869 POWER OUTLET SOCKET(for Console Box Rear Side) A

POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Console Box Rear Side)  REMOVAL


PROCEDURE

Hide 85532 2.REMOVE USB CHARGER SOCKET

a.

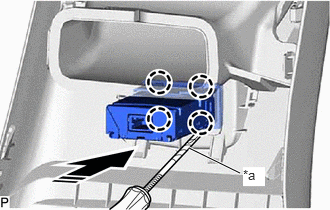

for Double Socket Type:

i.
E418344C01
1.969,1.542 2.5,1.802 true 2.531,1.74 2.76,1.938 0.229,0.198 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and remove the USB charger socket as shown in the illustration.



b.

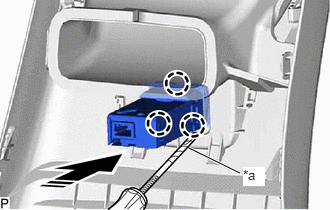

for Single Socket Type:

i.
E439423C01
1.969,1.542 2.5,1.802 true 2.531,1.74 2.76,1.938 0.229,0.198 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws and remove the USB charger socket as shown in the illustration.
