RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0595894 POWER OUTLET SOCKET(for Instrument Panel) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Instrument Panel) INSTALLATION

PROCEDURE

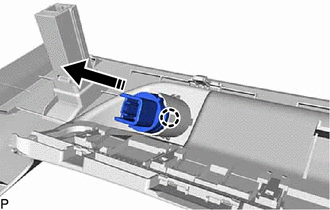

Hide Display 85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install the No. 1 power outlet socket cover as shown in the illustration.

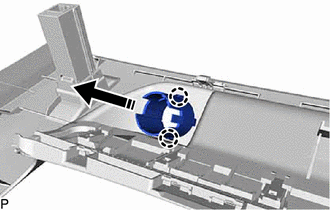

Hide Display 85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

0,0 0,0 false

Install in this Direction

Engage the claw to install the No. 1 power outlet socket assembly as shown in the illustration.

Hide Display 55434F 3.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 55606 4.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
