RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0595894 POWER OUTLET SOCKET(for Instrument Panel) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Instrument Panel) REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 85530 3.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

0.771,1.938 1.51,1.208 true 0.635,1.896 0.885,2.115 0.25,0.219 10 false *a

*a	Protective Tape
	Remove in this Direction

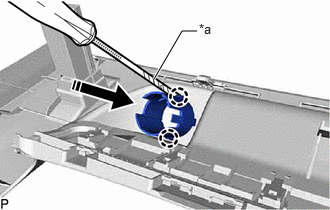

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

Hide Display 85535B 4.REMOVE NO. 1 POWER OUTLET SOCKET COVER

1.604,0.823 1.896,0.323 1.896,0.323 2.052,0.323 true 2.073,0.219 2.385,0.417 0.313,0.198 10 false *a

*a	Protective Tape
	Remove in this Direction

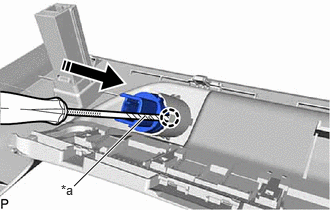

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.
