SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  DISASSEMBLY

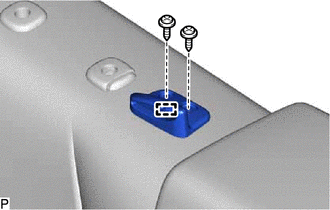

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

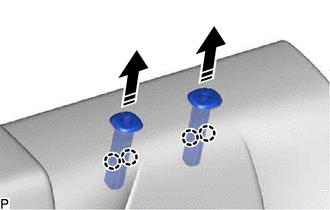

Disengage the 4 claws as shown in the illustration and remove the 2 rear seat headrest supports.

HINT:

Use the same procedure for the RH side and LH side.

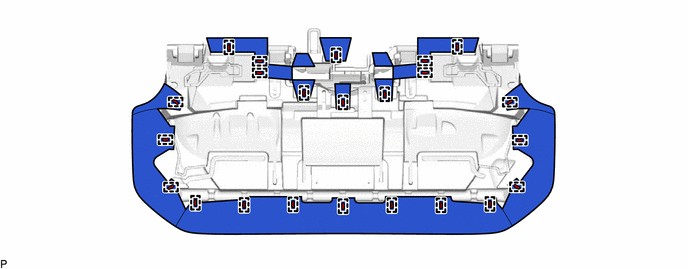

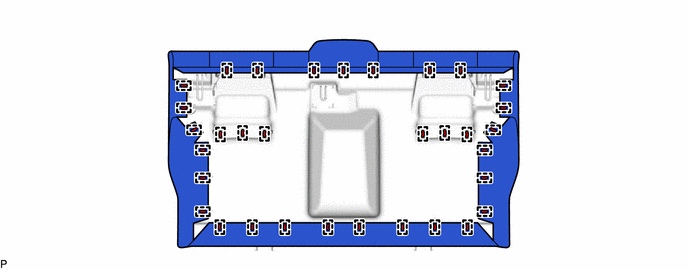

Remove the 33 hog rings.

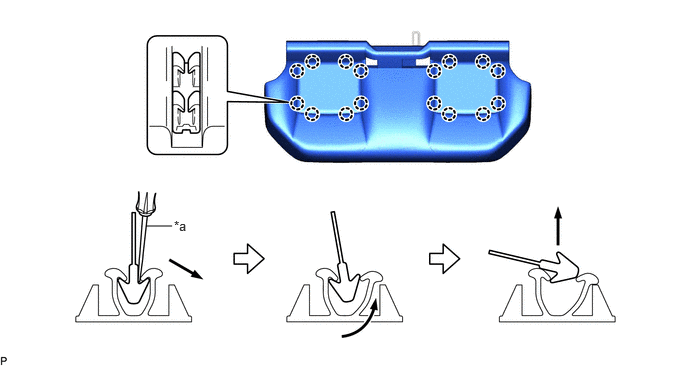

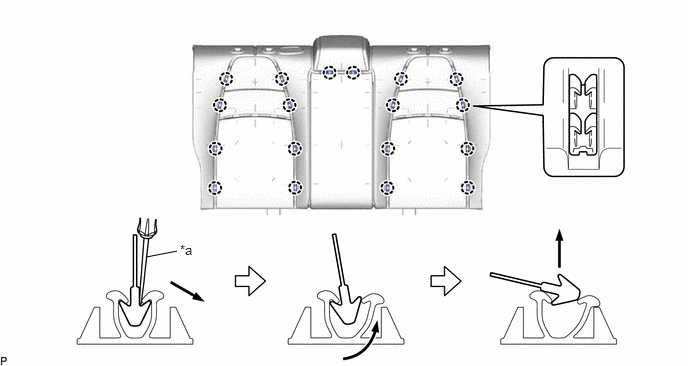

Using a screwdriver, disengage the 18 claws and remove the bench type rear seatback cover from the bench type rear seatback pad as shown in the illustration.

1.521,2.677 1.844,2.615 false 1.875,2.521 2.188,2.677 0.313,0.156 10 false *a

*a

Screwdriver

-

-

Remove the 2 seat cover wires.

for Type A:

i.

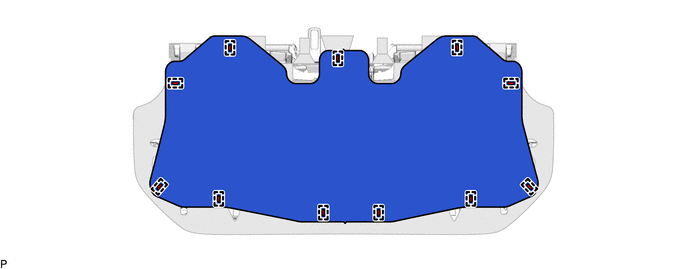

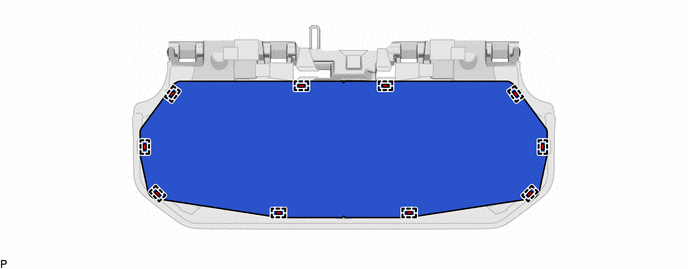

Remove the 11 hog rings and remove the bench type rear seat cushion lower cover.

ii.

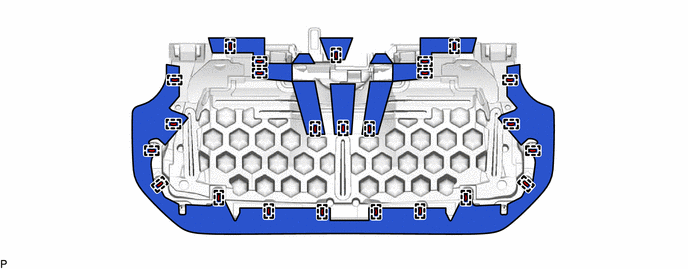

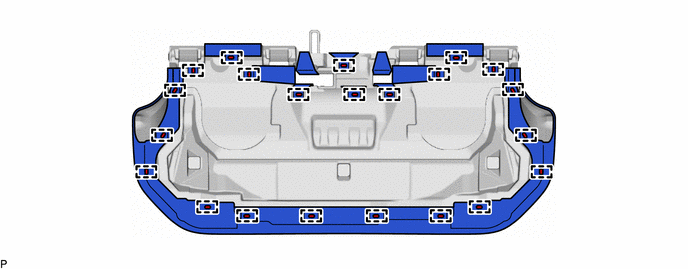

Remove the 24 hog rings.

for Type B:

i.

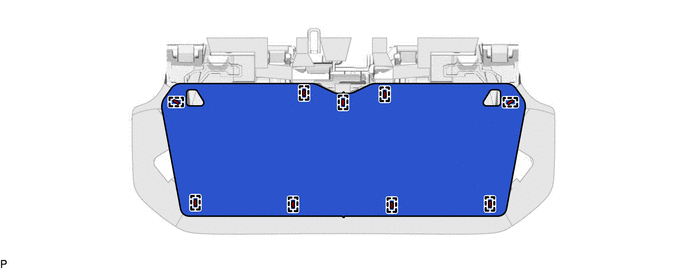

Remove the 11 hog rings and remove the bench type rear seat cushion lower cover.

ii.

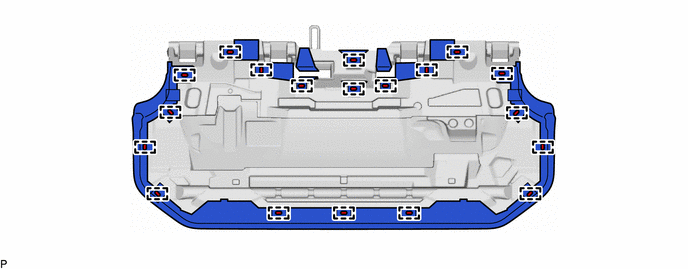

Remove the 22 hog rings.

Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad sub-assembly as shown in the illustration.

1.521,2.354 1.792,2.354 false 1.813,2.271 2.125,2.469 0.313,0.198 10 false *a

*a

Screwdriver

-

-

for Type A:

i.

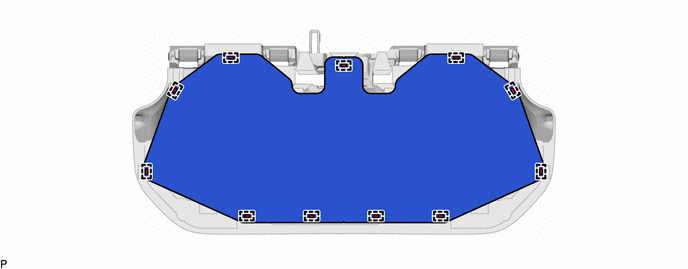

Remove the 9 hog rings and remove the bench type rear seat cushion lower cover.

ii.

Remove the 23 hog rings.

for Type B:

i.

Remove the 10 hog rings and remove the bench type rear seat cushion lower cover.

ii.

Remove the 19 hog rings.

Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad sub-assembly as shown in the illustration.

1.521,2.354 1.792,2.354 false 1.813,2.271 2.125,2.469 0.313,0.198 10 false *a

*a

Screwdriver

-

-
