RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392550 REAR BUMPER(for TFTM Made) A

EXTERIOR PANELS / TRIM REAR BUMPER(for TFTM Made) DISASSEMBLY

PROCEDURE

Hide Display 89342A 1.REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear Side)>REMOVAL202304,202307,_56,_080754,_0394058,RM100000002BG6C_01_0049,202307,999999,_56,_080754,_0394058,RM100000002CWH2_01_0049,

Hide Display 89342 2.REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear Side)>REMOVAL202304,202307,_56,_080754,_0394058,RM100000002BG6C_01_0051,202307,999999,_56,_080754,_0394058,RM100000002CWH2_01_0051,

Hide Display 89C48B 3.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear Side)>REMOVAL202304,202307,_56,_080754,_0394058,RM100000002BG6C_01_0052,202307,999999,_56,_080754,_0394058,RM100000002CWH2_01_0052,

Hide Display 89C48A 4.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear Side)>REMOVAL202304,202307,_56,_080754,_0394058,RM100000002BG6C_01_0050,202307,999999,_56,_080754,_0394058,RM100000002CWH2_01_0050,

Hide Display 82169A 5.REMOVE NO. 6 FLOOR WIRE (w/ Parking Support Brake System)

Hide Display 6.REMOVE REAR SPOILER SUB-ASSEMBLY (w/ Rear Spoiler)

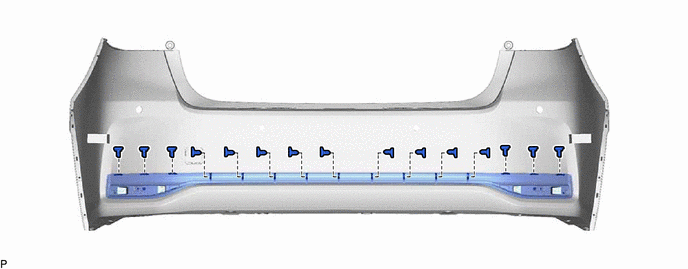

Remove the 16 clips.

Disengage the 4 claws and 16 guides to remove the rear spoiler sub-assembly.

Hide Display 52751 7.REMOVE REAR BUMPER MOULDING (w/ Rear Bumper Moulding)

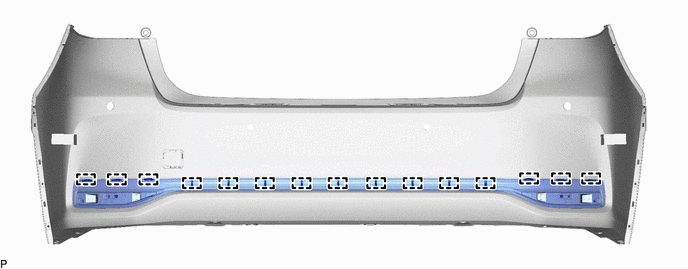

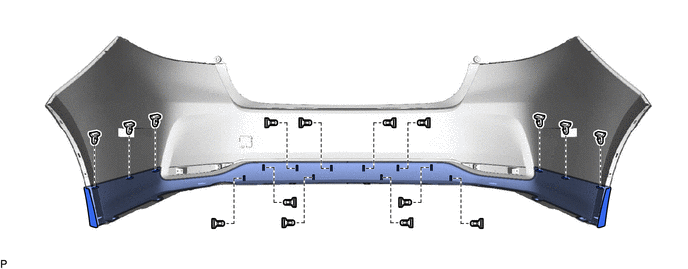

Remove the 15 clips.

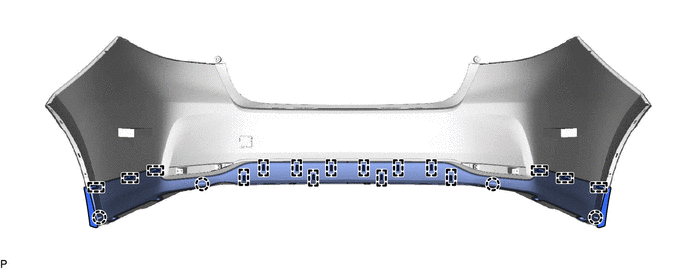

Disengage the 15 guides to remove the rear bumper moulding.

Hide Display 81920 8.REMOVE REFLEX REFLECTOR ASSEMBLY LH

w/o Rear Bumper Moulding:

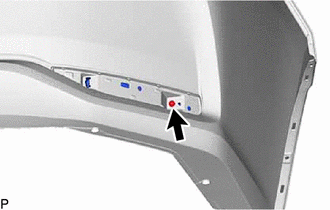

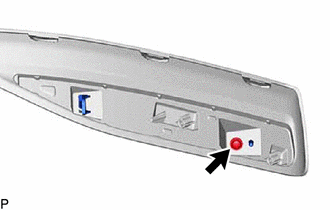

Remove the screw.

ii.

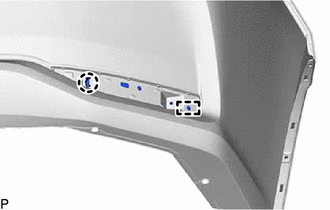

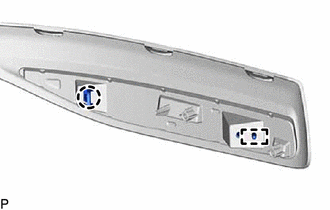

Disengage the claw and guide to remove the reflex reflector assembly LH.

w/ Rear Bumper Moulding:

Remove the screw.

ii.

Disengage the claw and guide to remove the reflex reflector assembly LH.

Hide Display 81910 9.REMOVE REFLEX REFLECTOR ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52463 10.REMOVE REAR BUMPER PAD LH (for COROLLA)

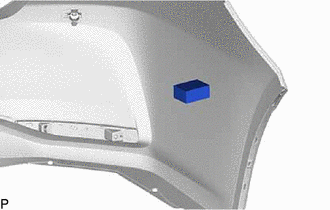

Remove the rear bumper pad LH.

Hide Display 52462 11.REMOVE REAR BUMPER PAD RH (for COROLLA)

HINT:: Use the same procedure as for the LH side.

Hide Display 52463 12.REMOVE REAR BUMPER PAD LH (for ALLION)

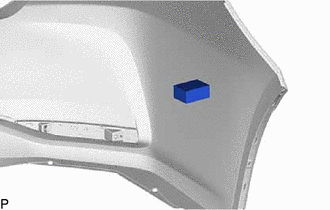

Remove the rear bumper pad LH.

Hide Display 52462 13.REMOVE REAR BUMPER PAD RH (for ALLION)

HINT:: Use the same procedure as for the LH side.

Hide Display 52161B 14.REMOVE REAR BUMPER PIECE

1.896,1.438 2.313,1.552 true 2.333,1.458 2.542,1.646 0.208,0.188 10 true *a

Hook

Disengage the 3 claws and guide.

Disengage the hook to remove the rear bumper piece.

Hide Display 52592 15.REMOVE REAR BUMPER SIDE SEAL LH

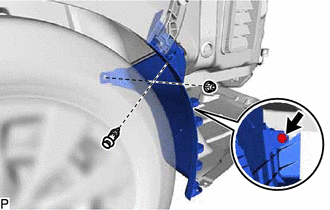

Remove the 3 clips and rear bumper side seal LH.

Hide Display 52591 16.REMOVE REAR BUMPER SIDE SEAL RH

HINT:: Use the same procedure as for the LH side.

Hide Display 17.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL201906,999999,_59,_080784,_0393161,RM100000001HW5B_04_0014,

Hide Display 18.REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52563A 19.REMOVE REAR BUMPER UPPER RETAINER LH

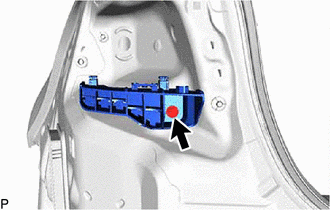

Remove the screw and rear bumper upper retainer LH.

Hide Display 52562B 20.REMOVE REAR BUMPER UPPER RETAINER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52576B 21.REMOVE REAR BUMPER SIDE RETAINER LH

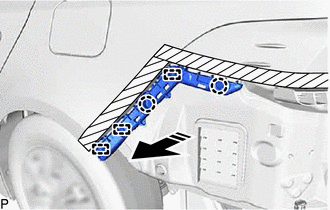

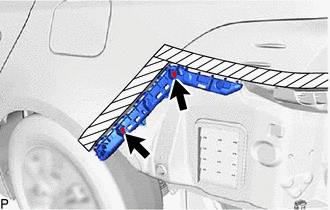

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and 3 guides as shown in the illustration to remove the rear bumper side retainer LH.

Hide Display 52575 22.REMOVE REAR BUMPER SIDE RETAINER RH

HINT:: Use the same procedure as for the LH side.

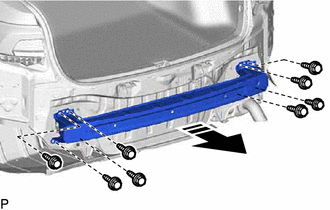

Hide Display 52023 23.REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

Remove the 8 bolts and rear bumper reinforcement sub-assembly as shown in the illustration.
