INTERIOR PANELS / TRIM  INSTRUMENT PANEL SAFETY PAD  REASSEMBLY

1.INSTALL INSTRUMENT PANEL CUSHION (w/o Upper Instrument Panel)

a.

Clean the instrument panel safety pad sub-assembly surface.

i.

Remove any remaining double-sided tape from the instrument panel safety pad sub-assembly.

ii.

Wipe off any tape adhesive residue with cleaner.

b.

Remove the release paper from a new instrument panel cushion.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

c.

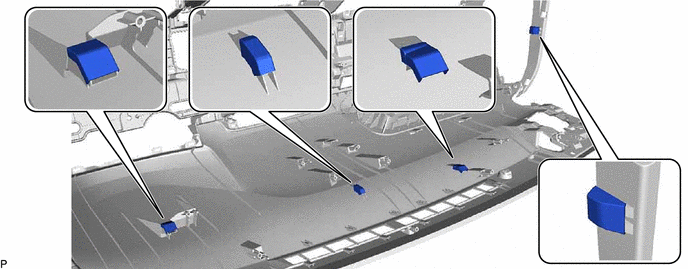

Install the 4 instrument panel cushions.

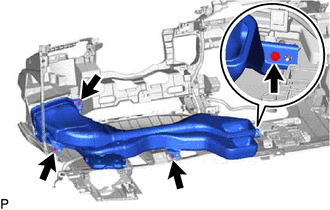

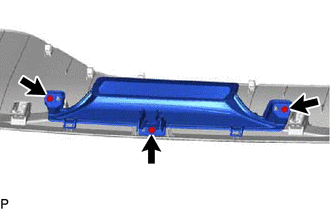

55950G 2.INSTALL DEFROSTER NOZZLE ASSEMBLY

a.

Install the defroster nozzle assembly with the 3 screws <E>.

82142A 3.INSTALL NO. 2 INSTRUMENT PANEL WIRE

a.

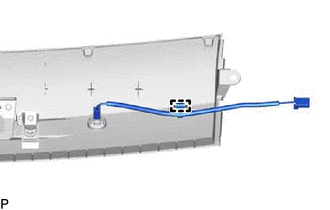

w/o Upper Instrument Panel:

i.

Engage the 2 clamps to install the No. 2 instrument panel wire.

b.

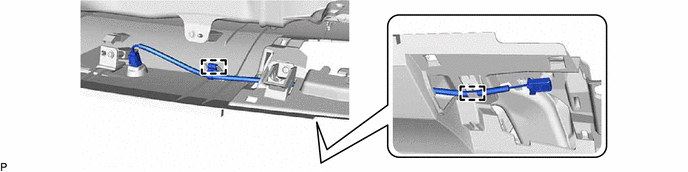

w/ Upper Instrument Panel:

i.

Engage the clamp to install the No. 2 instrument panel wire.

89120A 4.INSTALL AUTOMATIC LIGHT CONTROL SENSOR

55349C 5.INSTALL INSTRUMENT PANEL CUSHION (w/ Upper Instrument Panel)

a.

Clean the upper instrument panel assembly surface.

i.

Remove any remaining double-sided tape from the upper instrument panel assembly.

ii.

Wipe off any tape adhesive residue with cleaner.

b.

Remove the release paper from a new instrument panel cushion.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

c.

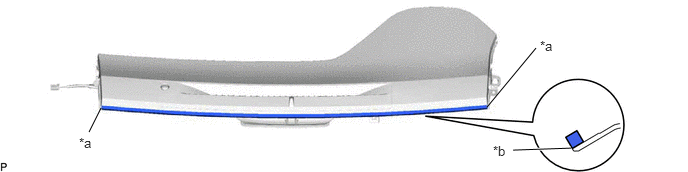

Install the instrument panel cushion as shown in the illustration.

0.927,1.375 1.052,1.125 false 5.583,0.5 5.073,1.115 false 5.344,1.563 5.948,1.542 true 0.823,1.406 1.135,1.563 0.313,0.156 10 false *a 5.135,1.49 5.448,1.646 0.313,0.156 10 false *b 5.625,0.396 5.938,0.552 0.313,0.156 10 false *a

*a

Edge of Curved Surface

*b

Outline

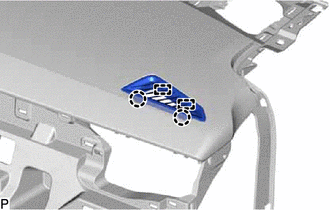

55962 6.INSTALL NO. 2 SIDE DEFROSTER NOZZLE (w/ Upper Instrument Panel)

a.

Engage the 2 guides and 2 claws to install the No. 2 side defroster nozzle.

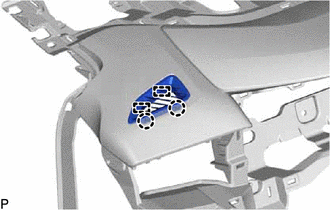

55961 7.INSTALL NO. 1 SIDE DEFROSTER NOZZLE (w/ Upper Instrument Panel)

a.

Engage the 2 guides and 2 claws to install the No. 1 side defroster nozzle.

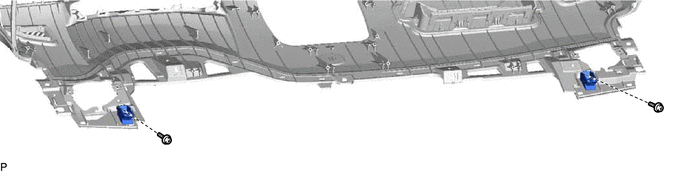

55328 8.INSTALL NO. 1 INSTRUMENT PANEL PIN

a.

for Instrument Panel Safety Pad Side:

i.

Install the 2 No. 1 instrument panel pins with the 2 screws <E>.

b.

for Upper Instrument Panel Side (w/ Upper Instrument Panel):

i.

Install the 2 No. 1 instrument panel pins with the 2 screws <E>.

9.INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

86101 10.INSTALL ANTENNA CORD SUB-ASSEMBLY

73960A 11.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

12.INSTALL ION GENERATOR WITH BRACKET (w/ Ion Generator)

88905 13.INSTALL NO. 1 AIR PURIFIER WIRE SUB-ASSEMBLY (w/ Ion Generator)

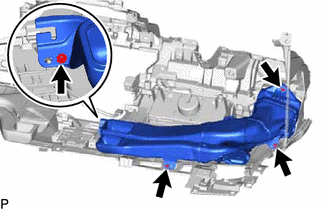

55085 14.INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

a.

Install the No. 2 heater to register duct sub-assembly with the 4 screws <E>.

55084E 15.INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

a.

Install the No. 1 heater to register duct sub-assembly with the 4 screws <E>.
