ACOUSTIC VEHICLE ALERTING SYSTEM  VEHICLE APPROACHING SPEAKER ECU  INSTALLATION

86572 1.INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER

a.

0,0 0,0 false

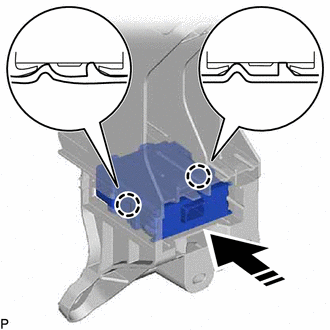

Install in this Direction

Engage the 2 claws to install the vehicle approaching speaker controller as shown in the illustration.

NOTICE:

Make sure that the vehicle approaching speaker controller is securely installed.

82877 2.INSTALL ECU INTEGRATION BOX RH

55433B 3.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

55550 4.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

55607 5.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55670A 6.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

55470 7.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

55670A 8.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

55318F 9.INSTALL NO. 2 INSTRUMENT SIDE PANEL

62311B 10.CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62111C 11.INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

67913 12.INSTALL FRONT DOOR SCUFF PLATE RH

13.INSTALL CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

14.INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

55900 15.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

55405B 16.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

55405B 17.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)

55434F 18.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55606 19.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
