RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392322 STEREO JACK ADAPTER ASSEMBLY A

AUDIO / VIDEO STEREO JACK ADAPTER ASSEMBLY INSTALLATION

PROCEDURE

Hide Display 86190C 1.INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

for Type A:

0,0 0,0 false

Install in this Direction

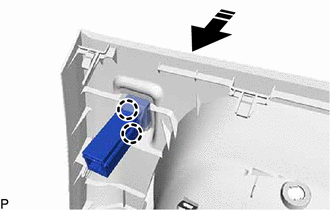

Engage the 2 claws to install the No. 1 stereo jack adapter assembly as shown in the illustration.

for Type C:

0,0 0,0 false

Install in this Direction

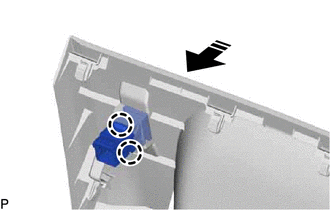

Engage the 2 claws to install the No. 1 stereo jack adapter assembly as shown in the illustration.

Hide Display 55434F 2.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 55606 3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
