PARK ASSIST / MONITORING  PARKING SUPPORT BRAKE SYSTEM  OPERATION CHECK

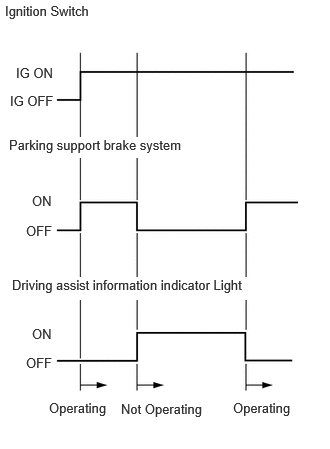

DRIVING ASSIST INFORMATION INDICATOR LIGHT OPERATION CHECK


a.

Turn the ignition switch to ON.


b.
C309522E49
0.052,0.031 1.281,0.229 1.229,0.198 10 false Ignition Switch 0.167,0.677 0.938,0.875 0.771,0.198 10 false IG ON 0.104,0.969 1.021,1.167 0.917,0.198 10 false IG OFF 0.094,1.427 2.104,1.646 2.01,0.219 10 true Parking support brake system 0.333,2.01 1.104,2.208 0.771,0.198 10 false ON 0.271,2.323 1.188,2.521 0.917,0.198 10 false OFF 0.271,3.698 1.188,3.896 0.917,0.198 10 false OFF 0.333,3.396 1.104,3.594 0.771,0.198 10 false ON 0.51,4.167 1.24,4.448 0.729,0.281 10 false Operating 1.26,4.177 2.208,4.479 0.948,0.302 10 false Not Operating 2.427,4.167 3.188,4.448 0.76,0.281 10 false Operating 0.125,2.885 2.844,3.125 2.719,0.24 10 true Driving assist information indicator Light

Turn the parking support brake system off and confirm that the driving assist information indicator in the combination meter illuminates.

HINT:

If the parking support brake system is not set to off in the customize settings, the parking support brake system will operate when the ignition switch is turned ON.




DETECTION AREA


a.

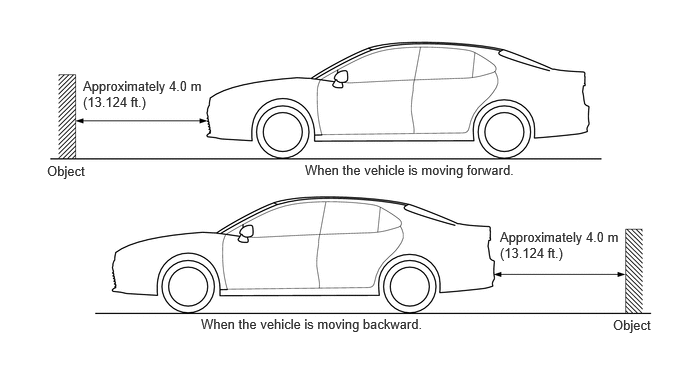

Parking support brake system detection distance

·

The ultrasonic sensors (front/rear center sensor) can detect objects up to a distance of approximately 4.0 m (13.124 ft.). However, the detection distance varies depending on the shape of the object.

E445106E01
0.865,0.813 2.167,1.208 1.302,0.396 10 false Approximately 4.0 m (13.124 ft.) 5.208,2.385 6.51,2.781 1.302,0.396 10 false Approximately 4.0 m (13.124 ft.) 0.49,1.698 1.052,1.906 0.563,0.208 10 false Object 6.385,3.302 6.948,3.51 0.563,0.208 10 false Object 2.094,3.292 4.458,3.5 2.365,0.208 10 false When the vehicle is moving backward. 3.177,1.688 5.542,1.896 2.365,0.208 10 false When the vehicle is moving forward.

HINT:

The detection range shown in the illustration is for when detecting an object that is 2.0 m (6.562 ft.) wide, 1.0 m (3.281 ft.) tall and is perpendicular to the ground.


·

If the front/rear sensors and left/right sensors do not simultaneously detect an object, the parking support brake function does not operate.


NOTICE:

Even if the parking support brake system detects an object, the system may not operate depending on the vehicle conditions.
