THEFT DETERRENT / KEYLESS ENTRY  DIGITAL KEY RECEIVER(for Front Floor)  REMOVAL

55434F 1.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

58831A 2.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

35970F 4.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

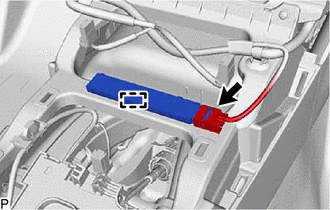

5.REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY

a.

Disconnect the connector.

b.

Disengage the clamp to remove the ble indoor digital key receiver assembly.

NOTICE:

Be careful when removing the digital key receiver. If the digital key receiver is dropped, replace it with a new one.
