THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function (NR Series))  Key Luggage Compartment Lock-in Prevention Function does not Operate


DESCRIPTION

If the entry luggage compartment lock-in prevention function does not operate, there may be a problem with the communication between the No. 3 indoor electrical key antenna assembly (inside luggage compartment) and electrical key transmitter sub-assembly, wave interference or a malfunction in the certification ECU (smart key ECU assembly).

WIRING DIAGRAM

C372930
0.365,2.677 3.208,3.094 2.844,0.417 10 false No. 3 Indoor Electrical Key Antenna Assembly (Inside Luggage Compartment) 5.021,1.813 5.281,2.021 0.26,0.208 10 false 9 4.979,0.667 5.24,0.875 0.26,0.208 10 false 10 6.521,1.813 6.781,2.021 0.26,0.208 10 false 18 5.844,1.448 6.104,1.656 0.26,0.208 10 false IC 5.292,1.927 5.969,2.229 0.677,0.302 10 false CG7B 5.313,0.771 5.99,1.073 0.677,0.302 10 false CLG7 5.083,2.552 6.604,2.917 1.521,0.365 10 false Certification ECU (Smart Key ECU Assembly) 1.208,0.771 1.719,0.979 0.51,0.208 10 false ANTE7 1.302,1.917 1.865,2.135 0.563,0.219 10 false CLGB 0.365,2.51 1.042,2.813 0.677,0.302 10 false O40 1.76,0.76 1.99,0.99 0.229,0.229 10 false 1 1.771,1.917 2,2.146 0.229,0.229 10 false 2 4.938,0.865 5.615,1.167 0.677,0.302 10 false O61 4.938,2.01 5.615,2.313 0.677,0.302 10 false O61 6.552,2.021 7,2.354 0.448,0.333 10 false I1 6.26,2.031 6.521,2.24 0.26,0.208 10 false E

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.



PROCEDURE

1.CHECK ENTRY LUGGAGE COMPARTMENT OPEN OPERATION
a.

Connect all connectors and check that the entry luggage compartment open function operates.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (NR Series))>OPERATION CHECK


Result:
Result Proceed to
Luggage compartment open function operates normally A
Luggage compartment open function does not operate normally B



A

2.CHECK WAVE ENVIRONMENT

B

GO TO OTHER PROBLEM (Proceed to Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (NR Series))>Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment


2.CHECK WAVE ENVIRONMENT
a.

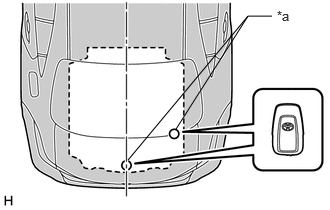

B530189C01
1.333,1.667 2.583,0.167 2.583,0.167 2.833,0.167 false 1.833,1.344 2.583,0.167 false 2.885,0.083 3.198,0.281 0.313,0.198 10 false *a
*a Inspection Point


Bring the electrical key transmitter sub-assembly near the No. 3 indoor electrical key antenna assembly (inside luggage compartment), and check that the entry luggage compartment lock-in prevention function operates.

NOTICE:

In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.


HINT:
·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 3 indoor electrical key antenna assembly (inside luggage compartment).

·

When the electrical key transmitter sub-assembly is brought near the No. 3 indoor electrical key antenna assembly (inside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.

·

If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

·

There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.

·

If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.




Result:
Result Proceed to
Entry functions does not operate normally A
Entry functions operate normally B



A

3.CHECK KEY DIAGNOSTIC MODE

B

AFFECTED BY WAVE INTERFERENCE

3.CHECK KEY DIAGNOSTIC MODE
a.

Check the following antenna in key diagnostic mode.

Body Electrical > Entry&Start > Utility
Tester Display
Communication Check(Key Diag Mode)
50005 125 143

b.
B530189C01
1.333,1.667 2.583,0.167 2.583,0.167 2.833,0.167 false 1.833,1.344 2.583,0.167 false 2.885,0.083 3.198,0.281 0.313,0.198 10 false *a
*a Inspection Point


Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.

i.

Check the No. 3 indoor electrical key antenna assembly (inside luggage compartment):

When the electrical key transmitter sub-assembly is at either inspection point, check that the combination meter assembly buzzer sounds.

HINT:
·

If the combination meter assembly buzzer sounds, it can be determined that the No. 3 indoor electrical key antenna assembly (inside luggage compartment) is operating normally.

·

If the combination meter assembly buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.





Result:
Result Proceed to
Combination meter assembly buzzer does not sound A
Combination meter assembly buzzer sounds B



A

4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT))

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT))
a.

Disconnect the O61 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the O40 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O61-10 (CLG7) - O40-1 (ANTE7) Always Below 1 Ω
O61-9 (CG7B) - O40-2 (CLGB) Always Below 1 Ω
O61-10 (CLG7) or O40-1 (ANTE7) - Other terminals and body ground Always 10 kΩ or higher
O61-9 (CG7B) or O40-2 (CLGB) - Other terminals and body ground Always 10 kΩ or higher



d.

Reconnect the O61 certification ECU (smart key ECU assembly) connector.


Result:
Proceed to
OK
NG



OK

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT))
a.
B499514
0.229,0.146 0.542,0.302 0.313,0.156 10 false *a 1.344,1.927 1.656,2.083 0.313,0.156 10 false *b 2.26,1.917 2.573,2.073 0.313,0.156 10 false *c
*a Waveform 1
*b Driver door lock sensor not touched
*c Driver door lock sensor touched


Using an oscilloscope, check the wave form.

OK:
Tester Connection Condition Tool Setting Specified Condition
O40-1 (ANTE7) - O40-2 (CLGB) Procedure:
1.

Door is closed

2.

Engine switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched


2 V/DIV., 500 ms/DIV. Pulse generation
(See waveform 1)



Result:
Proceed to
OK
NG



OK

6.REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

6.REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)
a.

Replace the No. 3 indoor electrical key antenna assembly (inside luggage compartment).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL


Result:
Proceed to
NEXT



NEXT

7.CHECK KEY LOCK-IN PREVENTION FUNCTION
7.CHECK KEY LOCK-IN PREVENTION FUNCTION
a.

Check that the entry luggage compartment lock-in prevention function operates normally.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (NR Series))>OPERATION CHECK

OK:

Entry luggage compartment lock-in prevention function operates normally.



Result:
Proceed to
OK
NG



OK

END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) WAS DEFECTIVE)

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
