RM3660EC _58 Vehicle Interior _080747 THEFT DETERRENT / KEYLESS ENTRY _0586354 SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model (NR Series)) J

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model (NR Series))  Steering Lock does not Lock


DESCRIPTION

The steering lock actuator or upper bracket assembly activates the steering lock motor and moves the lock bar into the steering column to lock the steering.

When the steering lock is operating, the steering may not lock when the lock bar is not aligned with the lock hole of the steering column. In this case, the steering can be locked by turning the steering wheel a little, as is done for a vehicle with a mechanical key, to change the position of the lock hole.

Related Data List and Active Test Items
Problem Symptom Data List and Active Test
Steering Lock does not Lock
Entry&Start
·

Lock Request Receive

·

L Code Check

·

S Code Check

·

Steering Lock


Main Body
·

FL Door Courtesy SW


Power Source Control
·

Shift P Signal

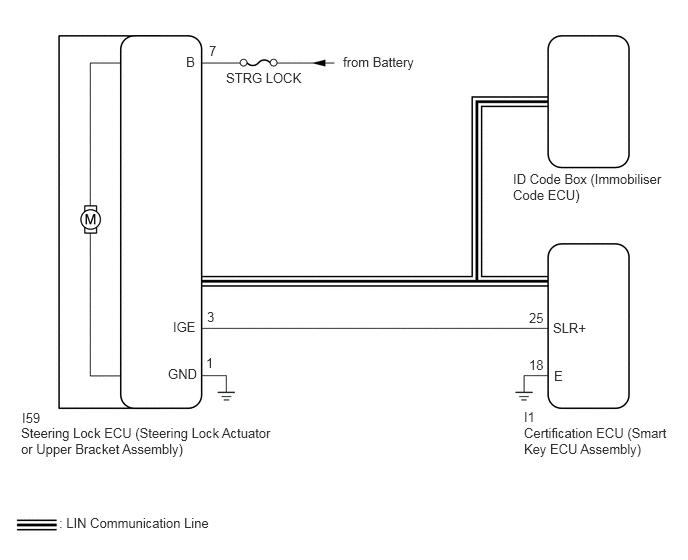

WIRING DIAGRAM

B503736E03
0.229,4.271 0.729,4.5 0.5,0.229 10 false I59 0.219,4.427 2.885,4.833 2.667,0.406 10 false Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly) 0.615,5.365 2.333,5.646 1.719,0.281 10 false : LIN Communication Line 5.458,4.26 5.958,4.49 0.5,0.229 10 false I1 5.458,4.427 6.979,4.833 1.521,0.406 10 false Certification ECU (Smart Key ECU Assembly) 5.771,3.833 6.271,4.063 0.5,0.229 10 false E 5.51,3.719 6.01,3.948 0.5,0.229 10 false 18 5.51,3.229 6.01,3.458 0.5,0.229 10 false 25 5.76,3.333 6.26,3.563 0.5,0.229 10 false SLR+ 5.344,1.781 6.906,2.281 1.563,0.5 10 false ID Code Box (Immobiliser Code ECU) 2.354,0.729 3.302,0.958 0.948,0.229 10 false STRG LOCK 3.573,0.563 4.469,0.813 0.896,0.25 10 false from Battery 1.938,0.563 2.438,0.792 0.5,0.229 10 false B 2.177,0.448 2.677,0.677 0.5,0.229 10 false 7 2.156,3.219 2.656,3.448 0.5,0.229 10 false 3 1.802,3.323 2.302,3.552 0.5,0.229 10 false IGE 1.75,3.813 2.25,4.042 0.5,0.229 10 false GND 2.146,3.698 2.646,3.927 0.5,0.229 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

Perform either of the following operations to lock/unlock the steering:

-

To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).

-

To lock the steering, turn the engine switch off with the shift lever in P, and then open a door.


·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Make sure that no DTCs are output. If any DTCs are output, proceed to Diagnostic Trouble Code Chart.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the steering lock ECU (steering lock actuator or upper bracket assembly), certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU), refer to Service Bulletin.

·

After performing repairs, confirm that the problem does not recur.

·

When disconnecting the cable from the negative (-) battery terminal, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY



PROCEDURE

1.READ VALUE USING GTS (LOCK REQUEST RECEIVE)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Lock Request Receive Status of steering lock command from certification ECU (smart key ECU assembly) OK or NG OK: Certification ECU (smart key ECU assembly) sends steering lock command (within 10 seconds of any door opened with shift lever in P and engine switch off)
NG: Certification ECU (smart key ECU assembly) does not send steering lock command (no door opened with shift lever in P and engine switch off) 		If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
Body Electrical > Entry&Start > Data List
Tester Display
Lock Request Receive
50003 125 68
OK:

The certification ECU (smart key ECU assembly) receives a lock request signal within 10 seconds of turning the engine switch from on (IG) to on (ACC) or off and opening a door with the shift lever in P, and OK is displayed on the GTS screen.



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (S CODE CHECK)

NG

12.READ VALUE USING GTS (FL DOOR COURTESY SW)
2.READ VALUE USING GTS (S CODE CHECK)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
S Code Check S code verification result OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
S Code Check
50003 125 65
OK:

OK is displayed on the GTS.


HINT:

Reasons for verification failure:

·

The certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

There is a problem with the communication between ECUs.

·

An ECU was replaced, but not registered.

·

An ECU was replaced with an ECU which has already been registered to another vehicle.




Result:
Proceed to
OK
NG



OK

3.READ VALUE USING GTS (L CODE CHECK)

NG

11.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
3.READ VALUE USING GTS (L CODE CHECK)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
L Code Check Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered, or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
L Code Check
50003 125 66
OK:

OK is displayed on the GTS.


HINT:

Reasons for verification failure:

·

The steering lock ECU (steering lock actuator or upper bracket assembly) or certification ECU (smart key ECU assembly) is malfunctioning.

·

There is a problem with the communication between ECUs.

·

An ECU was replaced, but not registered.

·

An ECU was replaced with an ECU which has already been registered to another vehicle.




Result:
Proceed to
OK
NG



OK

4.CHECK FOR DTC

NG

10.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
4.CHECK FOR DTC
a.

Check for DTCs.

Chassis > ABS/VSC/TRC > Trouble Codes
50001 105

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

5.READ VALUE USING GTS (STEERING LOCK)

B

GO TO DIAGNOSTIC TROUBLE CODE CHART (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>DIAGNOSTIC TROUBLE CODE CHART


5.READ VALUE USING GTS (STEERING LOCK)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Sensor Value History of malfunction of position sensor in steering lock ECU (steering lock actuator or upper bracket assembly) (DTC B2781 is stored) OK or NG(Past) OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) does not exist.
NG(Past): History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator or upper bracket assembly) being on exists. (Under normal operation, neither sensor is on.) 		When NG(Past) is displayed, either the position sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) or the assembly itself may be malfunctioning.
Body Electrical > Entry&Start > Data List
Tester Display
Sensor Value
50003 125 50
OK:

OK is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (POWER SOURCE)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


6.CHECK HARNESS AND CONNECTOR (POWER SOURCE)
a.

Disconnect the I59 steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

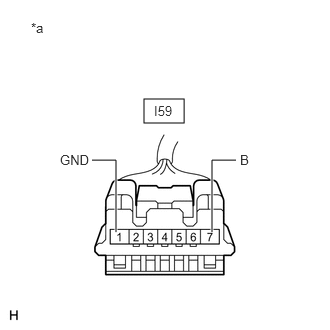

C350526C79
1.5,1.031 1.917,1.281 0.417,0.25 0.958,1.667 1.208,1.667 1.208,1.667 1.208,2.417 true 2.458,1.667 2.208,1.667 2.208,1.667 2.208,2.417 true 0.323,0.208 0.635,0.365 0.313,0.156 10 false *a 1.604,1.073 1.917,1.229 0.313,0.156 10 false I59 0.625,1.583 1.104,1.781 0.479,0.198 10 false GND 2.5,1.583 2.813,1.74 0.313,0.156 10 false B
*a Front view of wire harness connector
(to Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I59-1 (GND) - Body ground Always Below 1 Ω


NOTICE:

If the result is not as specified, check for looseness in the ground cable connection.



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I59-7 (B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

7.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
a.

Connect the I59 steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.
B518305C01
1.49,0.99 1.896,1.25 0.406,0.26 2.354,2.885 1.885,2.885 1.885,2.885 1.885,1.979 true 2.719,2.677 2.25,2.677 2.25,2.677 2.25,1.99 true 0.188,0.281 0.5,0.438 0.313,0.156 10 false *a 1.604,1.031 2.104,1.302 0.5,0.271 10 false I59 2.448,2.802 2.948,3.073 0.5,0.271 10 false IGE 2.781,2.604 3.281,2.875 0.5,0.271 10 false GND
*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I59-3 (IGE) - I59-1 (GND) Steering lock motor operating when all conditions met, and then door opened:
·

The steering is unlocked.

·

The engine switch is off.

·

The shift lever is in P.


11 to 14 V → Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


NG

8.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
8.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
a.

Disconnect the I59 steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

Disconnect the I1 certification ECU (smart key ECU assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I59-3 (IGE) - I1-25 (SLR+) Always Below 1 Ω
I59-3 (IGE) or I1-25 (SLR+) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

9.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
a.

Connect the I59 steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

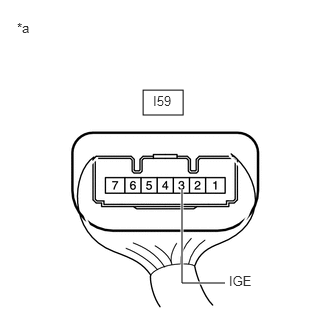

C350527C98
1.49,0.938 1.906,1.198 0.417,0.26 2.344,2.948 1.896,2.948 1.896,2.948 1.896,1.969 true 0.177,0.208 0.49,0.365 0.313,0.156 10 false *a 2.385,2.844 2.792,3.01 0.406,0.167 10 false IGE 1.594,0.969 1.906,1.125 0.313,0.156 10 false I59
*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I59-3 (IGE) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


10.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
a.

Replace the steering lock ECU (steering lock actuator or upper bracket assembly) with a new one and perform registration.

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY

HINT:

Refer to Service Bulletin.



b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
L Code Check Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered, or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
L Code Check
50003 125 66
OK:

OK is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

END (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

11.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Replace the certification ECU (smart key ECU assembly) with a new one and perform registration.

HINT:

Refer to Service Bulletin.



b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
S Code Check S code verification result OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
S Code Check
50003 125 65
OK:

OK is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

12.READ VALUE USING GTS (FL DOOR COURTESY SW)
a.

Enter the following menus: Body Electrical / Main Body / Data List.


b.

Using the GTS, check the following main body ECU (multiplex network body ECU) Data List item by opening and closing the driver door to confirm the state of the front door courtesy light switch assembly.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
FL Door Courtesy SW Front door LH courtesy light switch signal OFF or ON OFF: Front door LH closed
ON: Front door LH open 		-
Body Electrical > Main Body > Data List
Tester Display
FL Door Courtesy SW
50003 123 199
OK:

The Data List item changes in accordance with the opening and closing of the driver door.



Result:
Proceed to
OK
NG



OK

13.READ VALUE USING GTS (SHIFT P SIGNAL)

NG

GO TO LIGHTING SYSTEM (Front Door Courtesy Switch Circuit)

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM (for NR Series Engine)>Front Door Courtesy Switch Circuit


13.READ VALUE USING GTS (SHIFT P SIGNAL)
a.

Enter the following menus: Body Electrical / Power Source Control / Data List.


b.

Move the shift lever to P.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Shift P Signal Shift position P OFF or ON OFF: Shift lever not in P
ON: Shift lever in P 		Use this item to determine if the park/neutral position switch assembly is malfunctioning.
Body Electrical > Power Source Control > Data List
Tester Display
Shift P Signal
50003 223 1
OK:

ON is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

14.CHECK FOR DTC

NG

GO TO OTHER PROBLEM

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>PROBLEM SYMPTOMS TABLE


14.CHECK FOR DTC
a.

Check for DTCs.

Chassis > ABS/VSC/TRC > Trouble Codes
50001 105

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

15.READ VALUE USING GTS (STEERING LOCK)

B

GO TO DIAGNOSTIC TROUBLE CODE CHART (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>DIAGNOSTIC TROUBLE CODE CHART


15.READ VALUE USING GTS (STEERING LOCK)
a.

Enter the following menus: Body Electrical / Entry&Start / Data List.


b.

Check that the steering is unlocked.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Steering Lock Steering lock ECU (steering lock actuator or upper bracket assembly) lock confirmation status Unset or Set Unset: Lock not confirmed
Set: Lock confirmed 		When Unset is displayed, the steering is not locked.
Body Electrical > Entry&Start > Data List
Tester Display
Steering Lock
50003 125 47
OK:

Set is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

16.READ VALUE USING GTS (LOCK REQUEST RECEIVE)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


16.READ VALUE USING GTS (LOCK REQUEST RECEIVE)
a.

Replace the certification ECU (smart key ECU assembly) with a new one and perform registration.

HINT:

Refer to Service Bulletin.



b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Lock Request Receive Status of steering unlock command from certification ECU (smart key ECU assembly) OK or NG OK: Certification ECU (smart key ECU assembly) sends steering lock command (within 10 seconds of any door opened with shift lever in P and engine switch off)
NG: Certification ECU (smart key ECU assembly) does not send steering lock command (no door opened with shift lever in P and engine switch off) 		If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
Body Electrical > Entry&Start > Data List
Tester Display
Lock Request Receive
50003 125 68
OK:

Within 10 seconds after any of the doors is opened with shift lever in P and engine switch off, the Data List item changes to "OK".



Result:
Proceed to
OK
NG



OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)
