THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model (NR Series))  B2282  Vehicle Speed Signal Malfunction  B2283  Vehicle Speed Sensor Malfunction


DESCRIPTION

DTC B2282 is stored when the vehicle speed signal sent by the combination meter assembly via direct line and the vehicle speed signal sent via CAN communication do not match.

DTC B2283 is stored when a malfunction in the vehicle speed sensor is detected.

DTC No. Detection Item DTC Detection Condition Trouble Area Note
B2282 Vehicle Speed Signal Malfunction The vehicle speed signal sent by the combination meter assembly via direct line and the vehicle speed signal sent via CAN communication do not match. (1-trip detection logic*)
·

Meter/gauge system

·

Vehicle stability control system

·

Certification ECU (smart key ECU assembly)

·

Wire harness or connector


DTC Output Confirmation Operation:

Drive the vehicle at a vehicle speed of 25 km/h (16 mph) or more for 20 seconds, and then drive the vehicle at a vehicle speed of less than 5 km/h (3 mph) for 20 seconds.


B2283 Vehicle Speed Sensor Malfunction Either of the of the following malfunctions is detected (a vehicle speed sensor malfunction is detected) (1-trip detection logic*):
·

Vehicle speed signal malfunction detection 1: Excessive deceleration is detected

·

Vehicle speed signal malfunction detection 2: Engine speed linked malfunction detected


·

Meter/gauge system

·

Vehicle stability control system

·

Certification ECU (smart key ECU assembly)

·

Wire harness or connector


DTC Output Confirmation Operation:
·

Run the engine at an engine speed of 2000 rpm or more for 300 seconds.

·

Drive the vehicle at a vehicle speed of 50 km/h (31 mph) or more for 10 seconds, and then drive the vehicle at a vehicle speed of less than 50 km/h (31 mph).



*: Only detected while a malfunction is present and the engine switch is on (IG).


Vehicle Condition and Fail-safe Function when Malfunction Detected
DTC Code Vehicle Condition when Malfunction Detected Fail-safe Function when Malfunction Detected
B2282
·

When the signal sent via either direct line or CAN communication is malfunctioning and indicates that the vehicle speed is 0 km/h (0 mph), there is no effect on vehicle behavior.

·

When the signal sent via either direct line or CAN communication is malfunctioning and indicates that the vehicle is moving, the engine switch cannot be turned from on (IG) to off.


-
B2283
·

The power source mode is changed to off (the engine is stopped) by pressing the engine switch while the vehicle is being driven.

·

With the electrical key transmitter sub-assembly in the cabin, even if an engine start operation is performed, the engine will not start.


Steering lock motor operation is prohibited.

Related Data List and Active Test Items
DTC No. Data List and Active Test
B2282
B2283
Power Source Control
·

Vehicle Speed Signal

·

Engine Condition

·

Power Supply Condition


Starting Control
·

Engine Speed


Combination Meter
·

Vehicle Speed Meter

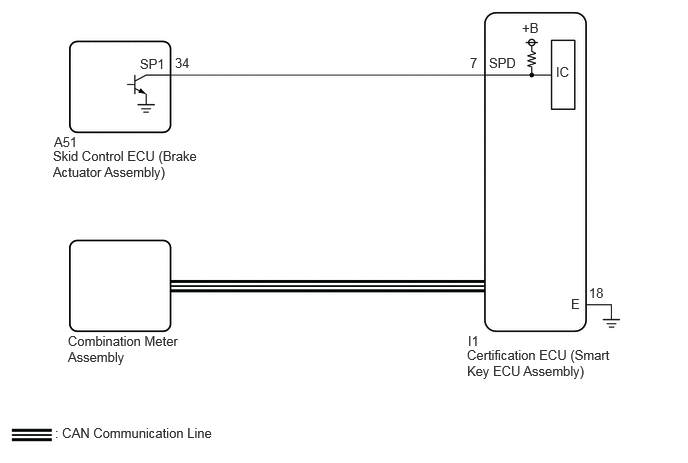

WIRING DIAGRAM

B515938E14
1.458,0.583 1.917,0.781 0.458,0.198 10 false SP1 1.823,0.573 3.031,0.969 1.208,0.396 10 false 34 4.896,0.573 5.052,0.771 0.156,0.198 10 false 7 5.094,0.573 5.552,0.771 0.458,0.198 10 false SPD 5.438,0.208 5.75,0.406 0.313,0.198 10 false +B 5.792,0.667 6.104,0.865 0.313,0.198 10 false IC 5.948,3.083 6.104,3.281 0.156,0.198 10 false E 6.135,2.969 6.448,3.167 0.313,0.198 10 false 18 0.573,4.427 4.24,4.625 3.667,0.198 10 false : CAN Communication Line 0.708,3.469 1.896,4.073 1.188,0.604 10 false Combination Meter Assembly 0.563,1.396 2.333,1.719 1.771,0.323 10 false A51 0.552,1.542 2.104,2.208 1.552,0.667 10 false Skid Control ECU (Brake Actuator Assembly) 4.875,3.469 5.188,3.667 0.313,0.198 10 false I1 4.865,3.615 6.406,4.458 1.542,0.844 10 false Certification ECU (Smart Key ECU Assembly)

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



PROCEDURE

1.READ VALUE USING GTS (VEHICLE SPEED SIGNAL)
a.

Enter the following menus: Body Electrical / Power Source Control / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Vehicle Speed Signal Vehicle being driven or stopped Stop or Run Stop: Vehicle stopped
Run: Vehicle being driven at 5 km/h (3 mph) or more
-
Body Electrical > Power Source Control > Data List
Tester Display
Vehicle Speed Signal
50003 223 16
OK:

The GTS display changes correctly in response to the vehicle condition.



Result:
Proceed to
OK
NG



OK

NG

2.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
2.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the I1 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the A51 skid control ECU (brake actuator assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I1-7 (SPD) - A51-34 (SP1) Always Below 1 Ω
I1-7 (SPD) or A51-34 (SP1) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Connect the I1 certification ECU (smart key ECU assembly) connector.


b.

Connect the A51 skid control ECU (brake actuator assembly) connector.


c.

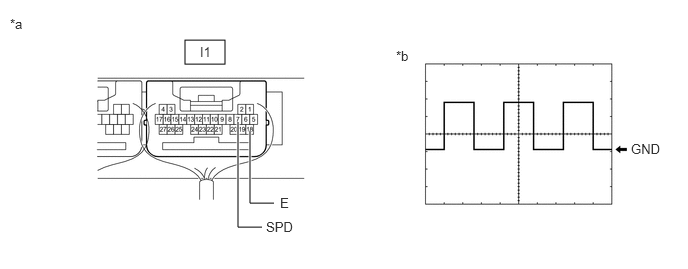

Using an oscilloscope, check the waveform.

B424430C32
1.927,0.417 2.344,0.667 0.417,0.25 2.854,2.115 2.604,2.115 2.604,2.115 2.604,1.365 true 2.729,2.365 2.479,2.365 2.479,2.365 2.479,1.271 true 0.104,0.167 0.417,0.365 0.313,0.198 10 false *a 2.083,0.458 2.396,0.656 0.313,0.198 10 false I1 2.917,2.031 3.229,2.229 0.313,0.198 10 false E 2.771,2.281 3.177,2.479 0.406,0.198 10 false SPD 6.573,1.469 6.958,1.677 0.385,0.208 10 false GND 4.125,0.5 4.438,0.698 0.313,0.198 10 false *b
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))
*b Waveform


OK:
Tester Connection Condition Tool Setting Specified Condition
I1-7 (SPD) - I1-18 (E) Engine switch on (IG), vehicle being driven at approx. 5 km/h (3 mph) 5 V/DIV., 20 ms./DIV. Pulse generation
(See waveform)


HINT:

The wavelength becomes shorter as the vehicle speed increases.



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG
