RM3660EC _59 Vehicle Exterior _080734 SLIDING ROOF / CONVERTIBLE _0393074 SLIDING ROOF HOUSING A

SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING  DISASSEMBLY


PROCEDURE

Hide 63260J 1.REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY

a.

for TFTM Made Type A:

i.
B675556

for Type A:

Remove the 3 bolts and sliding roof drive gear sub-assembly.


ii.

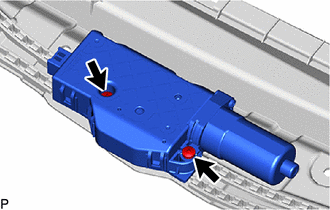

B677471

for Type B:

Remove the 2 screws and sliding roof drive gear sub-assembly.


iii.
B677472

for Type C:

Remove the 2 bolts and sliding roof drive gear sub-assembly.



b.

for TFTM Made Type B, GTMC Made:

i.
B675557

for Type A:

Remove the 2 screws and sliding roof drive gear sub-assembly.


ii.
B677472

for Type B:

Remove the 2 bolts and sliding roof drive gear sub-assembly.



Hide 63306 2.REMOVE SUNSHADE TRIM SUB-ASSEMBLY

a.

for TFTM Made Type A:

i.

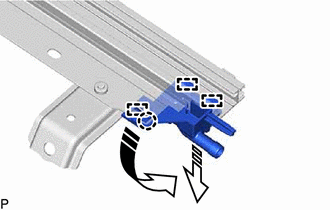

B675558C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (1) shown in the illustration to disengage the claw and guide.

HINT:

Use the same procedure for the RH side.



ii.

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the sliding roof piece sub-assembly LH.

HINT:

Use the same procedure for the RH side.



iii.
B675559

Remove the screw and rear sliding roof sunshade stopper.

HINT:

Use the same procedure for the RH side.



iv.

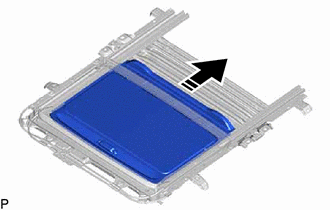

B675560C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the sunshade trim sub-assembly as shown in the illustration.



b.

for TFTM Made Type B:

i.

Remove the screw.

HINT:

Use the same procedure for the RH side.



ii.

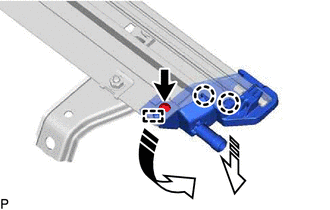

B535658C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (1) shown in the illustration to disengage the guide.

HINT:

Use the same procedure for the RH side.



iii.

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 claws and remove the sliding roof piece sub-assembly LH.

HINT:

Use the same procedure for the RH side.



iv.

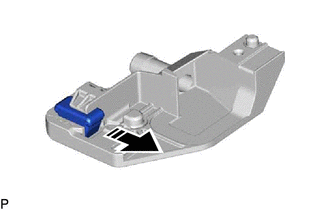

B535659C03
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear sliding roof sunshade stopper as shown in the illustration.

HINT:

Use the same procedure for the RH side.



v.

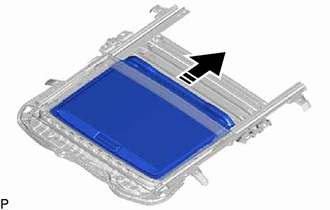

B675599C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the sunshade trim sub-assembly as shown in the illustration.



c.

for GTMC Made:

i.
B675590

Disengage the 2 claws and rear sliding roof sunshade stopper.

HINT:

Use the same procedure for the RH side.



ii.
B675599C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the sunshade trim sub-assembly as shown in the illustration.



Hide 63205A 3.REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.


a.

for TFTM Made Type A:

i.

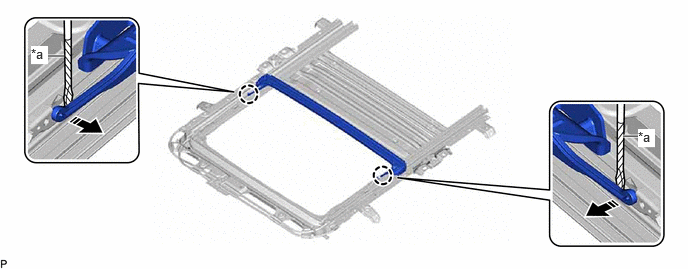

Using a screwdriver, disengage the 2 claws as shown in the illustration.

B675561C01
0.49,0.583 0.667,0.583 true 6.49,1.417 6.656,1.417 true 0.323,0.479 0.5,0.667 0.177,0.188 10 true *a 6.646,1.344 6.823,1.531 0.177,0.188 10 true *a
*a Protective Tape - -
V113147

Remove in this Direction - -


HINT:

Tape the screwdriver tip before use.



ii.

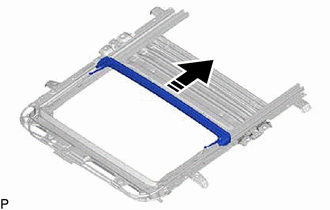

B675562C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the rear roof drip channel as shown in the illustration.


iii.

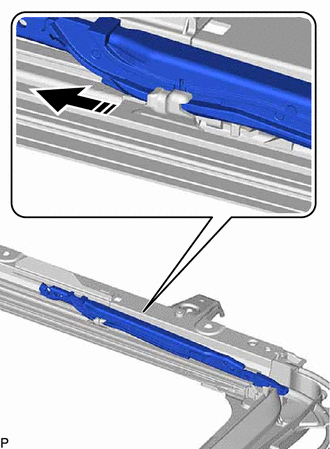

B675564C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the sliding roof drive cable LH as shown in the illustration.

HINT:

Use the same procedure for the RH side.




b.

for TFTM Made Type B, GTMC Made:

i.

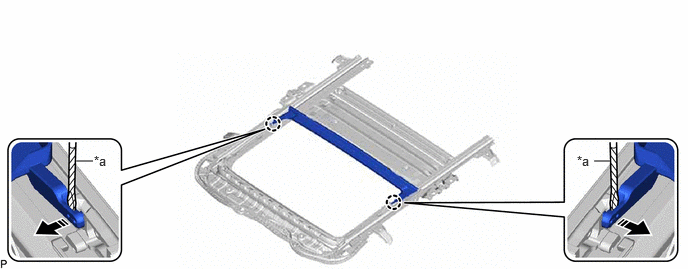

Using a screwdriver, disengage the 2 claws.

B675591C01
0.792,1.677 0.969,1.677 true 6.188,1.677 6.354,1.677 true 0.979,1.594 1.156,1.781 0.177,0.188 10 false *a 6.01,1.594 6.188,1.781 0.177,0.188 10 false *a
*a Protective Tape - -
V113147

Remove in this Direction - -


HINT:

Tape the screwdriver tip before use.



ii.

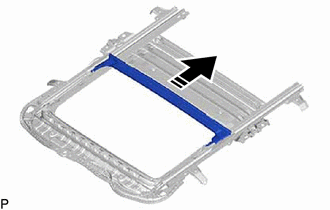

B675592C01
0,0 0,0 false
V113147

Remove in this Direction


Slide and remove the rear roof drip channel as shown in the illustration.


iii.

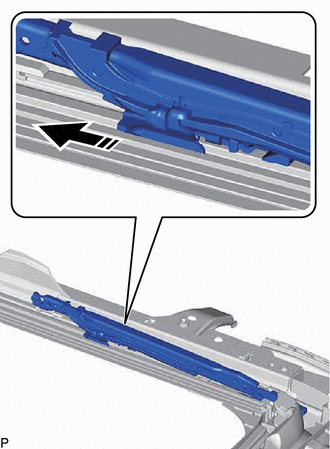

B675594C01
0,0 0,0 false
V113147

Remove in this Direction


Using a screwdriver, slide the sliding roof drive cable LH as shown in the illustration to remove it.

HINT:

Use the same procedure for the RH side.
