RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393087 PERSONAL LIGHT A

LIGHTING (INT)  PERSONAL LIGHT  DISASSEMBLY


PROCEDURE

Hide 81260A 2.REMOVE MAP LIGHT SUB-ASSEMBLY

Hide 81936C 3.REMOVE BULB ASSEMBLY

a.

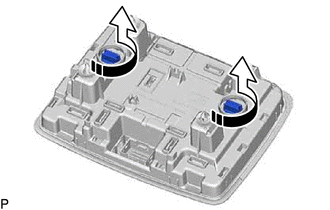

E399320C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the 2 bulb assemblies as shown in the illustration to remove them.


Hide 4.REMOVE MAP LIGHT COVER

a.

for Normal Roof:

i.

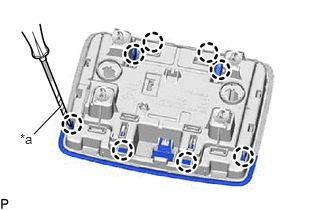

E419632C01
0.354,1.396 0.625,1.115 true 0.208,1.365 0.521,1.521 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 8 claws to remove the map light cover.



b.

for Moon Roof:

i.

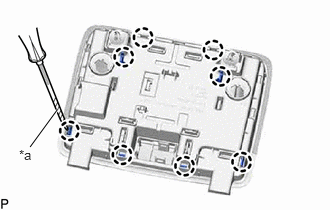

E413866C01
0.313,1.531 0.594,1.146 true 0.198,1.531 0.51,1.729 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 8 claws to remove the map light cover.



Hide 81265C 5.REMOVE NO. 1 MAP LIGHT LENS

a.

for Normal Roof:

i.

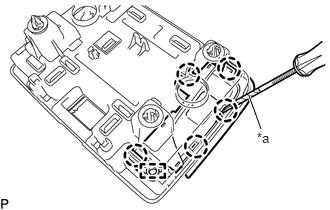

E399326C01
2.719,1.344 2.594,1 true 2.677,1.354 2.99,1.51 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws and guide to remove the No. 1 map light lens.



b.

for Moon Roof:

i.

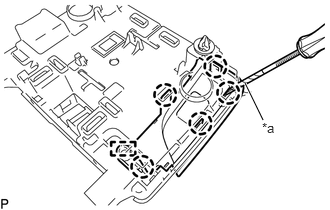

E413868C01
2.552,0.865 2.74,1.25 true 2.729,1.25 3.042,1.448 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws and guide to remove the No. 1 map light lens.



Hide 81266D 6.REMOVE NO. 2 MAP LIGHT LENS

a.

for Normal Roof:

i.

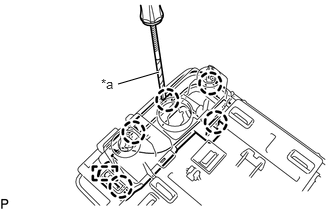

E399328C01
1.229,0.875 1.656,0.75 true 1.052,0.792 1.365,0.948 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws and guide to remove the No. 2 map light lens.



b.

for Moon Roof:

i.

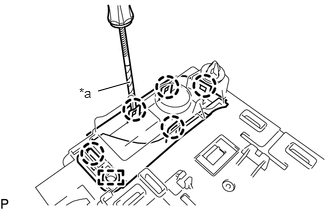

E413870C01
1.021,0.948 1.354,0.854 true 0.823,0.885 1.135,1.083 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws and guide to remove the No. 2 map light lens.



Hide 63395E 7.REMOVE MAP LIGHT CLIP

a.

for Normal Roof:

i.

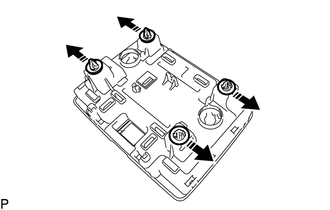

E399330C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 4 map light clips as shown in the illustration.



b.

for Moon Roof:

i.

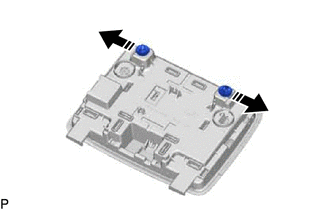

E419575C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 map light clips as shown in the illustration.
