RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393087 PERSONAL LIGHT A

LIGHTING (INT) PERSONAL LIGHT INSTALLATION

PROCEDURE

Hide Display 1.INSTALL MAP LIGHT ASSEMBLY (for Bulb Type)

a.

Connect each connector.

b.

for Normal Roof:

i.

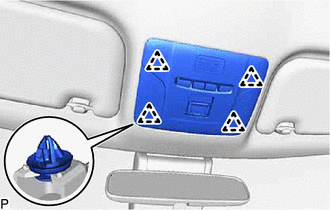

E419572

Engage the 4 clips to install the map light assembly.

c.

for Moon Roof:

i.

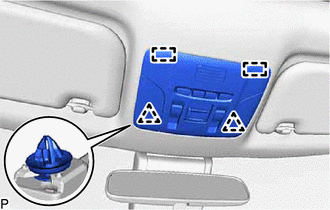

E419574

Engage the 2 guides.

ii.

Engage the 2 clips to install the map light assembly.

Hide Display 2.INSTALL MAP LIGHT ASSEMBLY (for LED Type)

a.

Connect each connector.

b.

for Normal Roof:

i.

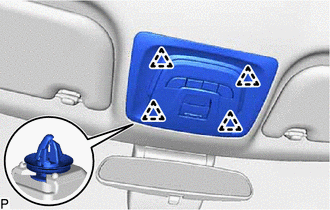

E488619

Engage the 4 clips to install the map light assembly.

c.

for Moon Roof:

i.

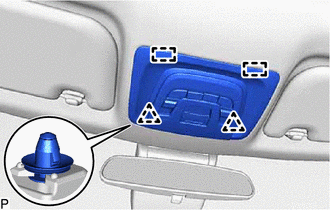

E488621

Engage the 2 guides.

ii.

Engage the 2 clips to install the map light assembly.
