RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393087 PERSONAL LIGHT G

LIGHTING (INT)  PERSONAL LIGHT  INSPECTION


PROCEDURE

Hide 81260A 1.INSPECT MAP LIGHT SUB-ASSEMBLY (for Bulb Type)

a.
B356073C08

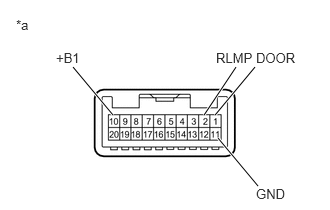

0.76,0.698 1.177,1.198 true 2.458,0.698 2.125,1.198 true 2.656,0.698 2.24,1.198 true 2.271,1.438 2.688,1.938 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 0.583,0.521 1.042,0.719 0.458,0.198 10 false +B1 2.25,0.521 2.865,0.719 0.615,0.198 10 false RLMP 2.667,0.521 3.281,0.719 0.615,0.198 10 false DOOR 2.667,1.938 3.125,2.135 0.458,0.198 10 false GND
*a Component without harness connected
(Map Light Sub-assembly)


Resistance Check

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (RLMP) - 1 (DOOR) Door linked switch on Below 1 Ω
2 (RLMP) - 11 (GND) Dome light switch on Below 1 Ω


If the result is not as specified, replace the map light sub-assembly.



b.

Illumination Inspection

i.

Apply auxiliary battery voltage to the map light sub-assembly and check that the lights illuminate.

OK:
Measurement Condition Condition Specified Condition
Auxiliary battery positive (+) → 10 (+B1)
Auxiliary battery negative (-) → 11 (GND) 		Front map light switch LH on Front map light LH illuminates
Auxiliary battery positive (+) → 10 (+B1)
Auxiliary battery negative (-) → 11 (GND) 		Front map light switch RH on Front map light RH illuminates
Auxiliary battery positive (+) → 10 (+B1)
Auxiliary battery negative (-) → 11 (GND) 		Front map light switches off and dome light switch on Front map light LH and RH illuminate
Auxiliary battery positive (+) → 10 (+B1)
Auxiliary battery negative (-) → 1 (DOOR) 		Front map light switches off and door linked switch on Front map light LH and RH illuminate


If the result is not as specified, replace the bulb or map light sub-assembly.



Hide 2.INSPECT MAP LIGHT ASSEMBLY (for LED Type)

a.
B356073C24

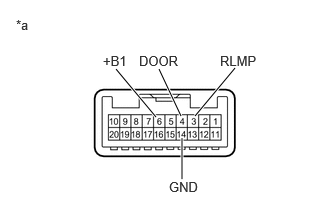

1.208,0.719 1.625,1.219 true 1.656,0.719 1.885,1.208 true 2.448,0.708 2.031,1.208 true 1.896,1.438 1.896,1.865 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 1.073,0.552 1.531,0.75 0.458,0.198 10 false +B1 2.292,0.552 2.906,0.75 0.615,0.198 10 false RLMP 1.448,0.552 2.063,0.75 0.615,0.198 10 false DOOR 1.76,1.865 2.219,2.063 0.458,0.198 10 false GND
*a Component without harness connected
(Map Light Assembly)


Resistance Check

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 (RLMP) - 4 (DOOR) Door linked switch on Below 1 Ω
3 (RLMP) - 14 (GND) Dome light switch on Below 1 Ω


If the result is not as specified, replace the map light assembly.



b.

Illumination Inspection

i.

Apply auxiliary battery voltage to the map light assembly and check that the lights illuminate.

OK:
Measurement Condition Condition Specified Condition
Auxiliary battery positive (+) → 6 (+B1)
Auxiliary battery negative (-) → 14 (GND) 		Front map light switch LH on Front map light LH illuminates
Auxiliary battery positive (+) → 6 (+B1)
Auxiliary battery negative (-) → 14 (GND) 		Front map light switch RH on Front map light RH illuminates
Auxiliary battery positive (+) → 6 (+B1)
Auxiliary battery negative (-) → 14 (GND) 		Front map light switches off and dome light switch on Front map light LH and RH illuminate
Auxiliary battery positive (+) → 6 (+B1)
Auxiliary battery negative (-) → 4 (DOOR) 		Front map light switches off and door linked switch on Front map light LH and RH illuminate


If the result is not as specified, replace the map light assembly.
