RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392561 QUARTER GARNISH A

EXTERIOR PANELS / TRIM  QUARTER GARNISH  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62506C 1.REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY (for COROLLA)

a.

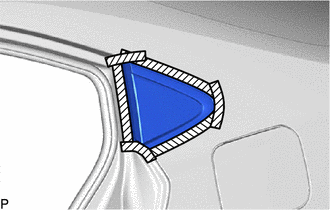

B543653
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.


b.

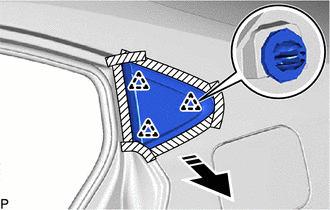

B543654
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 3 clips to remove the quarter pillar cover sub-assembly as shown in the illustration.


c.

Remove the 3 clips.


Hide 62506C 2.REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY (for LEVIN)

a.
B543653
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.


b.
B543654
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 3 clips to remove the quarter pillar cover sub-assembly as shown in the illustration.


c.

Remove the 3 clips.


Hide 62506C 3.REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY (for ALLION)

HINT:

When removing the quarter pillar cover sub-assembly, heat the vehicle body and quarter pillar cover sub-assembly using a heat light.


Heating Temperature
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Quarter Pillar Cover Sub-assembly 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body or quarter pillar cover sub-assembly excessively.


a.

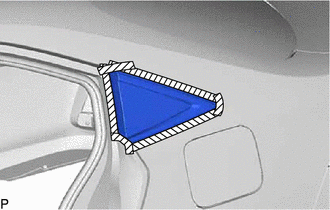

B611319
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.


b.

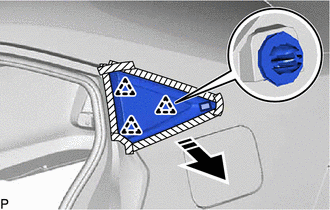

B611320
2.583,1.281 2.167,1.115 true 2.615,1.219 2.854,1.427 0.24,0.208 10 true *a
*a Double-sided Tape
V113147

Remove in this Direction


Separate the double-sided tape and disengage the 3 clips to remove the quarter pillar cover sub-assembly as shown in the illustration.


Hide 62506C 4.REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY (for LEVIN GT)

HINT:

When removing the quarter pillar cover sub-assembly, heat the vehicle body and quarter pillar cover sub-assembly using a heat light.


Heating Temperature
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Quarter Pillar Cover Sub-assembly 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body or quarter pillar cover sub-assembly excessively.


a.
B611319
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.


b.
B611320
2.583,1.281 2.167,1.115 true 2.615,1.219 2.854,1.427 0.24,0.208 10 true *a
*a Double-sided Tape
V113147

Remove in this Direction


Separate the double-sided tape and disengage the 3 clips to remove the quarter pillar cover sub-assembly as shown in the illustration.
