EXTERIOR PANELS / TRIM  LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for GTMC Made)  DISASSEMBLY


PROCEDURE

Hide 76821 1.REMOVE NO. 1 BACK DOOR OUTSIDE GARNISH PROTECTOR

a.

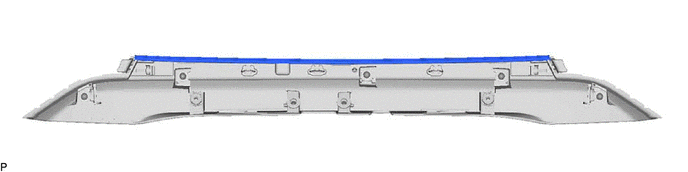

Remove the No. 1 back door outside garnish protector from the luggage compartment door outside garnish.

B536309


Hide 76812A 2.REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH

a.

Remove the 2 clips.

B536310


b.

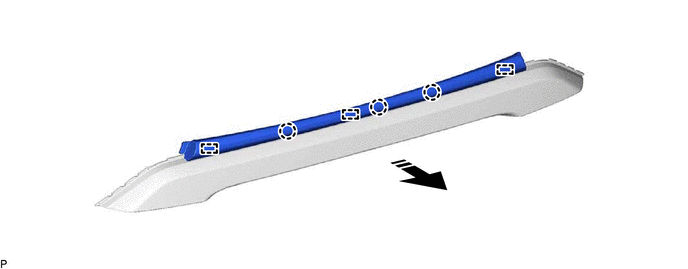

Disengage the 3 claws and 3 guides as shown in the illustration to remove the No. 2 back door outside garnish.

B536311C01
0,0 0,0 false
V113147

Remove in this Direction - -



Hide 76825 3.REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH PROTECTOR

a.
B536313

Remove the No. 2 back door outside garnish protector from the luggage compartment door outside garnish.

HINT:

Use the same procedure for the RH side and LH side.
