RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392092 REAR DOOR OPENING TRIM WEATHERSTRIP A

DOOR / HATCH  REAR DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62332A 1.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

a.

for COROLLA, LEVIN:

i.

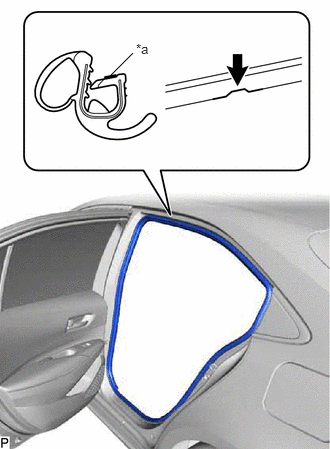

B545353C01
1.146,0.792 1.385,0.552 false 1.417,0.427 1.729,0.583 0.313,0.156 10 false *a
*a Paint Mark
V100135

Cutout


Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for TFTM LH Side Purple
for TFTM RH Side Pink
for GTMC LH Side Pink
for GTMC RH Side White






b.

for ALLION:

i.

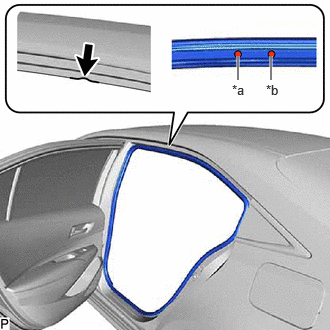

B611069C01
2.479,0.833 2.479,0.583 true 2.823,0.833 2.823,0.583 true 2.417,0.854 2.677,1.083 0.26,0.229 10 false *a 2.771,0.854 3.01,1.052 0.24,0.198 10 false *b
*a Paint Mark (A)
*b Paint Mark (B)
V100135

Cutout


Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for LH Side Paint Mark (A) Purple
for LH Side Paint Mark (B) Yellow
for RH Side Paint Mark (A) Pink
for RH Side Paint Mark (B) Yellow






c.

for LEVIN GT:

i.
B611069C01
2.479,0.833 2.479,0.583 true 2.823,0.833 2.823,0.583 true 2.417,0.854 2.677,1.083 0.26,0.229 10 false *a 2.771,0.854 3.01,1.052 0.24,0.198 10 false *b
*a Paint Mark (A)
*b Paint Mark (B)
V100135

Cutout


Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for LH Side Paint Mark (A) Yellow
for LH Side Paint Mark (B) Purple
for RH Side Paint Mark (A) Yellow
for RH Side Paint Mark (B) Pink
