DOOR / HATCH  HOOD  REASSEMBLY

1.INSTALL HOOD STAY BRACKET

a.

Engage the guide.

b.

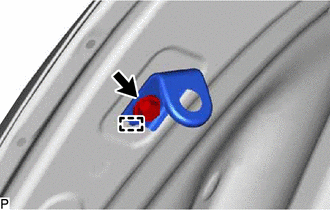

Install the hood stay bracket with the bolt.

53440D 2.INSTALL HOOD SUPPORT ASSEMBLY

a.

Engage the 3 claws to install the hood support assembly.

53452 3.INSTALL HOOD STAY HOLDER

a.

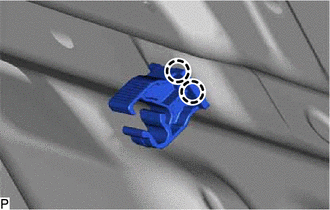

Engage the 2 claws to install the hood stay holder.

4.CONNECT WASHER HOSE ASSEMBLY

a.

for COROLLA, LEVIN:

i.

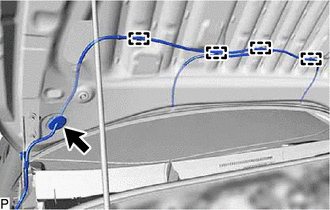

Engage the grommet.

ii.

Engage the 4 clamps to connect the washer hose assembly.

b.

for ALLION, LEVIN GT:

i.

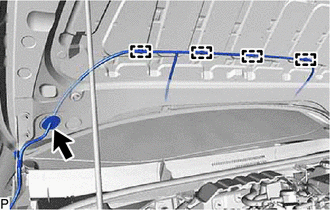

Engage the grommet.

ii.

Engage the 4 clamps to connect the washer hose assembly.

85035 5.INSTALL WASHER NOZZLE SUB-ASSEMBLY

85035 6.INSPECT WASHER NOZZLE SUB-ASSEMBLY

85035 7.ADJUST WASHER NOZZLE SUB-ASSEMBLY

53341B 8.INSTALL HOOD INSULATOR (w/ Hood Insulator)

a.

0,0 0,0 false

Install in this Direction

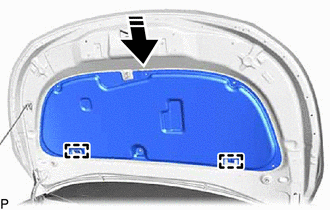

Engage the 2 guides as shown in the illustration.

b.

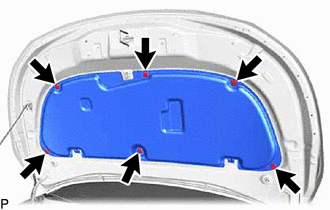

Install the hood insulator with 6 new hood insulator clips.
