RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392080 HOOD A

DOOR / HATCH  HOOD  DISASSEMBLY


PROCEDURE

Hide 53341B 1.REMOVE HOOD INSULATOR (w/ Hood Insulator)

a.
B512499

Using a clip remover, remove the 6 hood insulator clips.


b.
B512500C01
0,0 0,0 false
V113147

Remove in this Direction

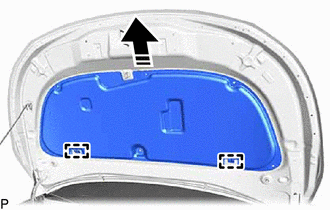

Disengage the 2 guides to remove the hood insulator as shown in the illustration.


Hide 85035 2.REMOVE WASHER NOZZLE SUB-ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE>REMOVAL

HINT:

Use the same procedure for the LH side and RH side.


Hide 3.DISCONNECT WASHER HOSE ASSEMBLY

a.

for COROLLA, LEVIN:

i.
B512502

Disengage the 4 clamps.


ii.

Disengage the grommet to disconnect the washer hose assembly.



b.

for ALLION, LEVIN GT:

i.
B611062

Disengage the 4 clamps.


ii.

Disengage the grommet to disconnect the washer hose assembly.



Hide 53452 4.REMOVE HOOD STAY HOLDER

a.
B520405

Disengage the 2 claws to remove the hood stay holder.


Hide 53440D 5.REMOVE HOOD SUPPORT ASSEMBLY

a.
B520406

Disengage the 3 claws to remove the hood support assembly.


Hide 6.REMOVE HOOD STAY BRACKET

a.
B520407

Remove the bolt.


b.

Disengage the guide to remove the hood stay bracket.
