WIPER / WASHER  WIPER SWITCH  INSPECTION

1.5,2.25 0.573,1.948 true 1.49,2.365 0.594,2.26 true 1.521,2.479 0.604,2.667 true 1.542,2.552 0.552,2.99 true 1.552,0.313 1.719,0.313 1.719,0.313 1.719,0.813 false 2.021,0.313 1.854,0.313 1.854,0.313 1.854,0.813 false 2.302,1.448 2.135,1.448 2.135,1.448 2.135,1.104 true 1.271,1.438 1.438,1.438 1.438,1.438 1.438,1.094 true 2.156,1.583 1.99,1.583 1.99,1.583 1.99,1.083 true 1.417,1.594 1.583,1.594 1.583,1.594 1.583,1.094 true 2.031,1.75 1.865,1.75 1.865,1.75 1.865,1.083 true 1.563,1.76 1.729,1.76 1.729,1.76 1.729,1.094 true 0.104,0.135 0.417,0.333 0.313,0.198 10 false *a 0.385,1.865 0.698,2.063 0.313,0.198 10 false P4 0.406,2.188 0.719,2.385 0.313,0.198 10 false P3 0.406,2.615 0.719,2.813 0.313,0.198 10 false P2 0.354,2.927 0.667,3.125 0.313,0.198 10 false P1 1.427,0.229 1.74,0.427 0.313,0.198 10 false E 2.063,0.229 2.375,0.427 0.313,0.198 10 false VR 2.344,1.375 2.99,1.625 0.646,0.25 10 false W_OFF 2.219,1.5 2.865,1.75 0.646,0.25 10 false +1 2.063,1.667 2.708,1.917 0.646,0.25 10 false +2 1.333,1.698 1.979,1.948 0.646,0.25 10 false +S 1.063,1.531 1.708,1.781 0.646,0.25 10 false MIST 1.031,1.375 1.677,1.625 0.646,0.25 10 false WF

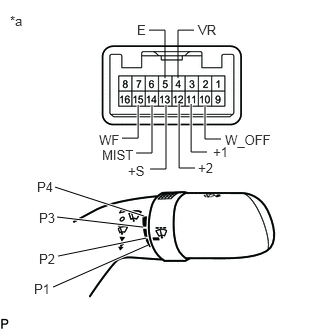

*a	Component without harness connected (Windshield Wiper Switch Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Front Wiper Switch

Tester Connection	Condition	Specified Condition
14 (MIST) - 5 (E)	MIST position	Below 1 Ω
	Except MIST position	10 kΩ or higher
10 (W_OFF) - 5 (E)	OFF position	Below 1 Ω
	Except OFF position	10 kΩ or higher
13 (+S) - 5 (E)	INT position	Below 1 Ω
	Except INT position	10 kΩ or higher
11 (+1) - 5 (E)	LO position	Below 1 Ω
	Except LO position	10 kΩ or higher
12 (+2) - 5 (E)	HI position	Below 1 Ω
	Except HI position	10 kΩ or higher

Front Washer Switch

Tester Connection	Condition	Specified Condition
15 (WF) - 5 (E)	ON position	Below 1 Ω
	OFF position	10 kΩ or higher

Intermittent Time Adjustment Switch*1

Tester Connection	Condition	Specified Condition
4 (VR) - 5 (E)	P1 position	1102 Ω to 1218 Ω
	P2 position	570 Ω to 630 Ω
	P3 position	256.5 Ω to 283.5 Ω
	P4 position	Below 1 Ω

Auto Sensitivity Adjustment Switch*2

Tester Connection	Condition	Specified Condition
4 (VR) - 5 (E)	P1 position	1102 Ω to 1218 Ω
	P2 position	570 Ω to 630 Ω
	P3 position	256.5 Ω to 283.5 Ω
	P4 position	Below 1 Ω

If the result is not as specified, replace the windshield wiper switch assembly.
