Vehicle Exterior
_080767
WIPER / WASHER
_0472990
RAIN SENSOR
A
WIPER / WASHER RAIN SENSOR REMOVAL
PROCEDURE
89943
1.REMOVE RAIN SENSOR COVER
a.
0.281,1.375 0.646,1.521
false
0.094,1.281 0.406,1.479
0.313,0.198
10
false

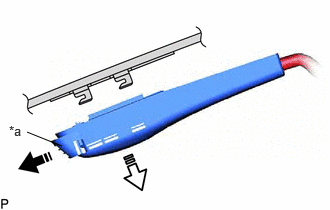

*a
| *a | Stopper |
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |
Release the stopper by pulling it out and disconnect the rain sensor as indicated by the arrows, in the order shown in the illustration.
b.

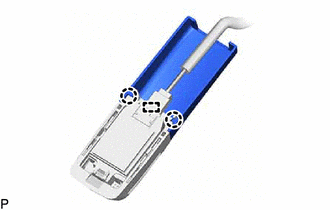

Disengage the 2 claws and guide to remove the rain sensor cover.
89941
2.REMOVE RAIN SENSOR
a.
Disconnect the connector to remove the rain sensor.
