RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392091 FRONT DOOR OPENING TRIM WEATHERSTRIP A

DOOR / HATCH  FRONT DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62312B 1.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

a.

except ALLION:

i.

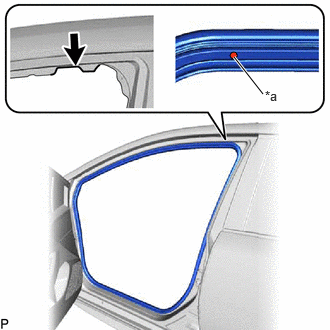

B611063C01
2.74,0.979 2.438,0.594 true 2.76,0.917 3.073,1.073 0.313,0.156 10 false *a
*a Paint Mark
V100135

Cutout


Align the paint mark on the front door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the front door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the front door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for TFTM LH Side Yellowish Green
for TFTM RH Side Brown
for GTMC LH Side Green
for GTMC RH Side Blue






b.

for ALLION:

i.

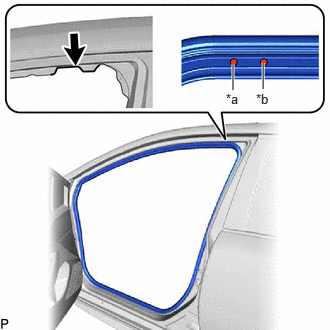

B611064C01
2.427,0.938 2.427,0.667 true 2.74,0.927 2.74,0.656 true 2.354,0.948 2.635,1.156 0.281,0.208 10 false *a 2.667,0.948 2.906,1.156 0.24,0.208 10 false *b
*a Paint Mark (A)
*b Paint Mark (B)
V100135

Cutout


Align the paint mark on the front door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the front door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the front door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for LH Side Paint Mark (A) Yellowish Green
for LH Side Paint Mark (B) Yellow
for RH Side Paint Mark (A) Brown
for RH Side Paint Mark (B) Yellow
