RM3660EC _54 Brake _080771 BRAKE SYSTEM (OTHER) _0392412 BRAKE BOOSTER(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for Gasoline Model)  REASSEMBLY


PROCEDURE

Hide 83390H 1.INSTALL VACUUM WARNING SWITCH ASSEMBLY (except NR Series Engine)

a.

Install a new vacuum warning switch grommet to the brake booster assembly.


b.

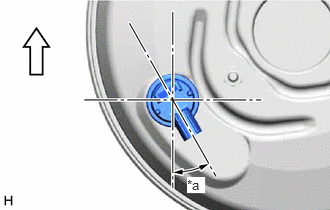

C401014C01
1.948,1.844 2.135,2.01 0.188,0.167 10 true *a
*a 30°
V100136

Up


Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.


Hide 89420H 2.INSTALL VACUUM SENSOR ASSEMBLY (for NR Series Engine)

a.

Install a new vacuum sensor grommet to the brake booster assembly.


b.

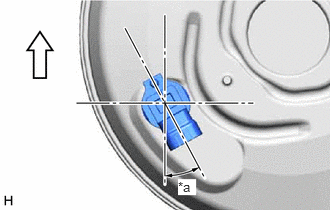

C411677C01
1.854,1.865 2.042,2.031 0.188,0.167 10 true *a
*a 30°
V100136

Up


Install the vacuum sensor assembly to the brake booster assembly as shown in the illustration.


Hide 44730 3.INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

a.

Install a new check valve grommet to the brake booster assembly.


b.

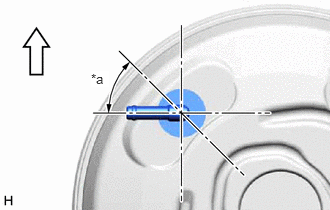

C401015C01
0.948,0.74 1.135,0.906 0.188,0.167 10 true *a
*a 45°
V100136

Up


Install the brake vacuum check valve assembly to the brake booster assembly.
