RM3660EC _54 Brake _080771 BRAKE SYSTEM (OTHER) _0392412 BRAKE BOOSTER(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for Gasoline Model)  DISASSEMBLY


PROCEDURE

Hide 44730 1.REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY

a.

Remove the brake vacuum check valve assembly from the brake booster assembly.


b.

Remove the check valve grommet from the brake booster assembly.


Hide 89420H 2.REMOVE VACUUM SENSOR ASSEMBLY (for NR Series Engine)

a.

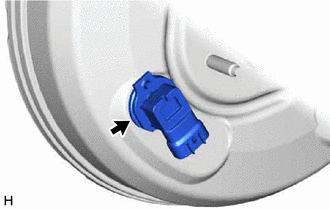

C411674

Remove the vacuum sensor assembly from the brake booster assembly.


b.

Remove the vacuum sensor grommet from the brake booster assembly.


Hide 83390H 3.REMOVE VACUUM WARNING SWITCH ASSEMBLY (except NR Series Engine)

a.

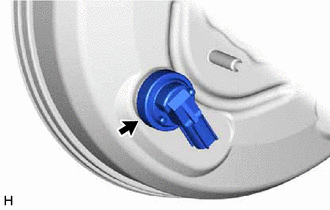

C401013

Remove the vacuum warning switch assembly from the brake booster assembly.


b.

Remove the vacuum warning switch grommet from the brake booster assembly.
