NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(for Gasoline Model with RST Switch)  PARTS LOCATION

ILLUSTRATION

2.156,1.969 2.448,1.969 2.448,1.969 3,2.802 false 5.5,4.427 5.302,4.427 5.302,4.427 4.531,3.438 false 4.865,1.698 5.219,1.167 5.219,1.167 5.417,1.167 false 4.729,1.646 4.969,0.708 4.969,0.708 5.271,0.708 false 1.99,1.896 2.302,2.094 0.313,0.198 10 false *4 5.573,4.365 5.885,4.563 0.313,0.198 10 false *3 5.333,0.615 5.646,0.813 0.313,0.198 10 false *1 5.469,1.073 5.781,1.271 0.313,0.198 10 false *2

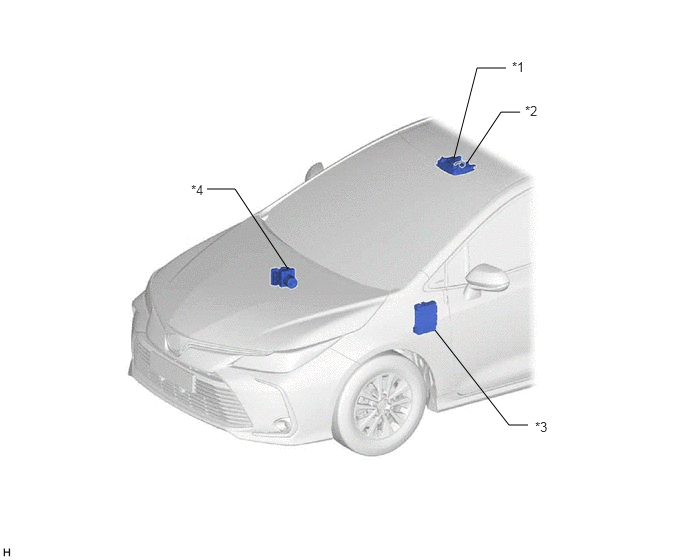

*1	MAP LIGHT ASSEMBLY	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - PANEL FUSE - RADIO FUSE - ECU-ACC FUSE	*4	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

ILLUSTRATION

for 12.1 Inch Display

5.823,3.333 5.969,3.333 5.969,3.333 6.063,3.01 false 2.719,1.99 2.26,0.719 2.26,0.719 2.031,0.719 false 4.563,4.833 4.281,4.833 4.281,4.833 3.063,2.917 false 2.958,4.844 3.198,4.833 3.198,4.833 2.458,2.865 false 1.698,2.344 1.396,1.281 1.396,1.281 1.094,1.281 false 5.969,2.5 6.323,1.688 6.323,1.688 6.521,1.688 false 3.604,1.667 3.979,0.844 3.979,0.844 4.198,0.844 false 4.25,0.76 4.563,0.958 0.313,0.198 10 false *3 5.667,3.229 5.979,3.427 0.313,0.198 10 false *2 6.583,1.625 6.896,1.823 0.313,0.198 10 false *1 2.813,4.76 3.125,4.958 0.313,0.198 10 false *5 0.917,1.198 1.229,1.396 0.313,0.198 10 false *6 1.875,0.625 2.188,0.823 0.313,0.198 10 false *4 4.615,4.76 4.927,4.958 0.313,0.198 10 false *7

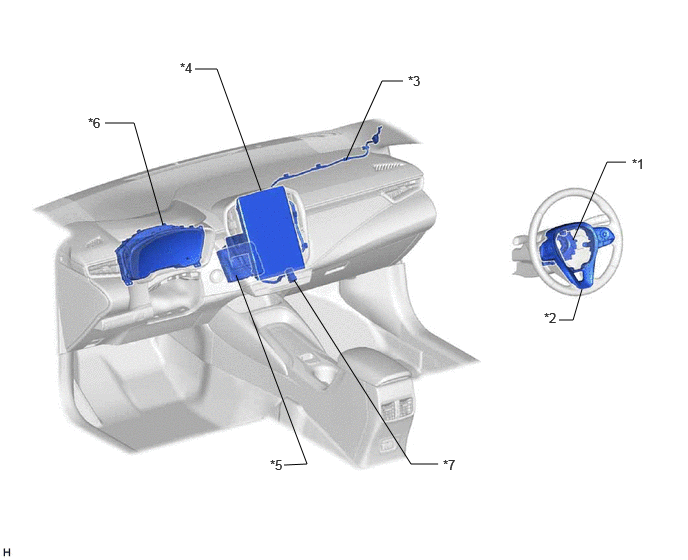

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING PAD SWITCH ASSEMBLY
*3	ANTENNA CORD SUB-ASSEMBLY	*4	NAVIGATION RECEIVER ASSEMBLY
*5	TELEMATICS TRANSCEIVER	*6	COMBINATION METER ASSEMBLY
*7	NO. 1 STEREO JACK ADAPTER ASSEMBLY	-	-

ILLUSTRATION

for 9 Inch Display

5.813,3.333 5.958,3.333 5.958,3.333 6.052,3.01 false 2.667,2.104 2.167,0.583 2.167,0.583 1.938,0.583 false 4.448,4.677 4.167,4.677 4.167,4.677 3.042,2.938 false 2.531,4.885 2.781,4.885 2.781,4.885 2.427,2.917 false 1.708,2.323 1.396,1.146 1.396,1.146 1.094,1.146 false 5.979,2.479 6.375,1.635 6.375,1.635 6.573,1.635 false 3.521,1.677 3.802,0.813 3.802,0.813 4.021,0.813 false 4.083,0.76 4.396,0.958 0.313,0.198 10 false *3 5.667,3.25 5.979,3.448 0.313,0.198 10 false *2 6.615,1.542 6.927,1.74 0.313,0.198 10 false *1 2.344,4.792 2.656,4.99 0.313,0.198 10 false *5 0.917,1.083 1.229,1.281 0.313,0.198 10 false *6 1.771,0.479 2.083,0.677 0.313,0.198 10 false *4 4.51,4.604 4.823,4.802 0.313,0.198 10 false *7

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING PAD SWITCH ASSEMBLY
*3	ANTENNA CORD SUB-ASSEMBLY	*4	NAVIGATION RECEIVER ASSEMBLY
*5	TELEMATICS TRANSCEIVER	*6	COMBINATION METER ASSEMBLY
*7	NO. 1 STEREO JACK ADAPTER ASSEMBLY	-	-

ILLUSTRATION

1.76,1.771 1.406,1.031 1.406,1.031 1.281,1.031 false 3.375,1.344 3.646,0.729 3.646,0.729 3.771,0.729 false 3.979,2.115 4.635,1.208 4.635,1.208 4.75,1.208 false 5.75,1.927 5.625,1.927 5.625,1.927 5.021,2.802 false 2.292,4.469 2.521,4.469 2.521,4.469 2.833,3.583 false 3.198,4.969 3.406,4.969 3.406,4.969 4.021,2.896 false 1.281,3.99 1.396,3.99 1.396,3.99 1.833,2.938 false 1.115,3.917 1.406,4.167 0.292,0.25 10 false *1 4.802,1.125 5.104,1.354 0.302,0.229 10 false *2 1.115,0.969 1.573,1.198 0.458,0.229 10 false *3 3.823,0.656 4.302,0.875 0.479,0.219 10 false *4 3.042,4.906 3.333,5.167 0.292,0.26 10 false *5 2.135,4.406 2.479,4.719 0.344,0.313 10 false *6 5.813,1.854 6.146,2.177 0.333,0.323 10 false *7

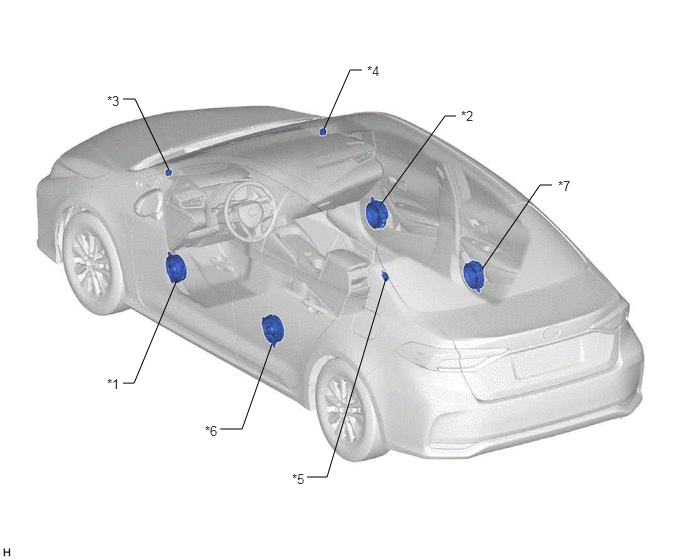

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 2 SPEAKER ASSEMBLY LH (for 6 Speakers)	*4	FRONT NO. 2 SPEAKER ASSEMBLY RH (for 6 Speakers)
*5	RADIO SETTING CONDENSER	*6	REAR SPEAKER ASSEMBLY LH
*7	REAR SPEAKER ASSEMBLY RH	-	-

ILLUSTRATION

5.052,2.448 6.021,4.823 6.021,4.823 6.271,4.823 false 5.688,2.385 6.115,2.031 6.115,2.031 6.365,2.031 false 5.667,2.313 5.99,1.573 5.99,1.573 6.24,1.573 false 3.927,1.219 4.292,0.656 4.292,0.656 4.542,0.656 false 4.573,0.583 4.885,0.74 0.313,0.156 10 false *2 6.281,1.5 6.594,1.656 0.313,0.156 10 false *4 6.313,4.74 6.625,4.896 0.313,0.156 10 false *1 6.323,4.917 6.635,5.073 0.313,0.156 10 false *5 6.438,1.969 6.75,2.125 0.313,0.156 10 false *3

*1	WINDOW GLASS ANTENNA WIRE	*2	NO. 2 ANTENNA CORD SUB-ASSEMBLY
*3	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	*4	NO. 3 ANTENNA CORD SUB-ASSEMBLY
*5	- FM - AM	-	-
