EXTERIOR PANELS / TRIM  REAR SPOILER  REMOVAL


PROCEDURE

Hide 2.REMOVE REAR SPOILER SUB-ASSEMBLY

a.

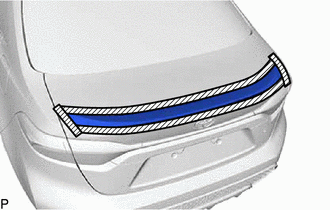

B601640C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.


b.

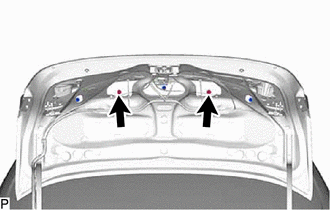

B601641

Remove the 2 nuts.


c.

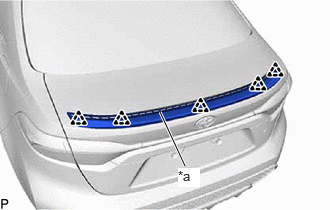

B601642C01
1.927,1.729 1.667,1.167 true 1.854,1.75 2.083,1.948 0.229,0.198 10 true *a
*a Double-sided Tape


Separate the double-sided tape and disengage the 5 clips to remove the rear spoiler sub-assembly.
