EXTERIOR PANELS / TRIM
_0454764
REAR SPOILER
K

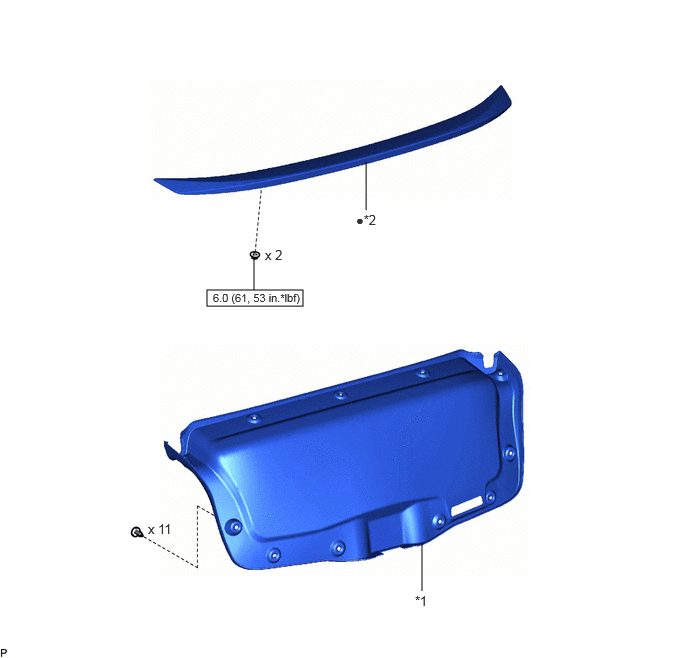

EXTERIOR PANELS / TRIM REAR SPOILER COMPONENTS
ILLUSTRATION
2.156,3.021 3.156,3.188
1,0.167
4.396,6.156 4.396,5.656
false
3.813,2.188 3.813,1.688
false
2.646,3.021 2.646,2.688
false
4.323,6.177 4.635,6.333
0.313,0.156
10
false
*1
3.708,2.208 4.208,2.531
0.5,0.323
10
false
●*2
1.542,5.427 1.854,5.583
0.313,0.156
10
false
x 11
2.76,2.573 3.073,2.729
0.313,0.156
10
false
x 2
2.219,3.031 3.406,3.26
1.188,0.229
8
false
6.0 (61, 53 in.*lbf)
| *1 | LUGGAGE COMPARTMENT DOOR COVER | *2 | REAR SPOILER SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
