RM3660EC _56 Audio / Visual / Telematics _080752 NAVIGATION / MULTI INFO DISPLAY _0391865 NAVIGATION SYSTEM(for Gasoline Model with RST Switch) D

NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM(for Gasoline Model with RST Switch) SYSTEM DESCRIPTION

NAVIGATION SYSTEM OUTLINE

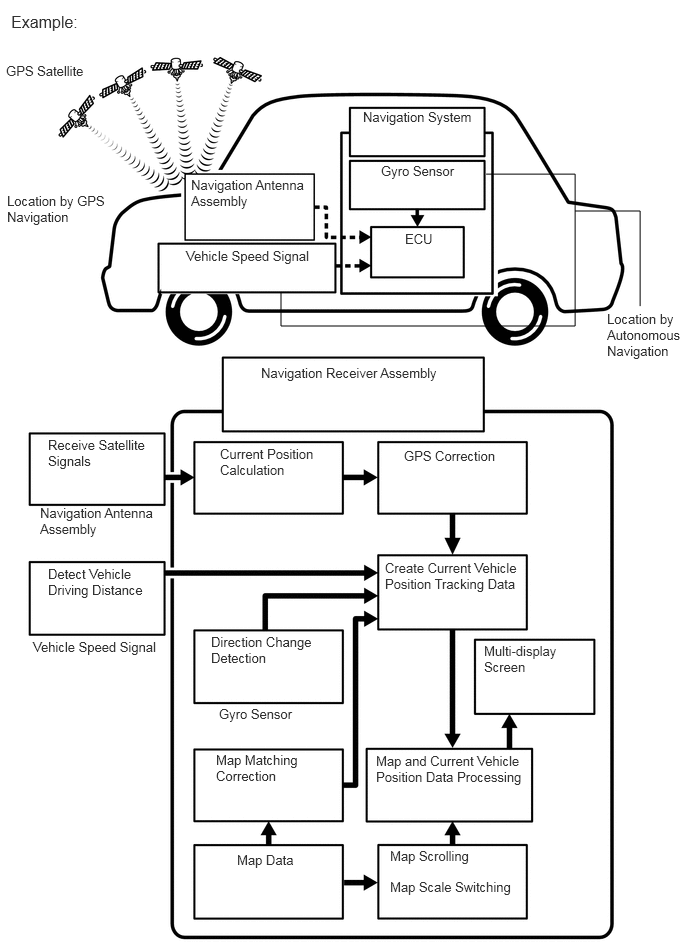

Vehicle position tracking methods

It is essential that the navigation system correctly tracks the current vehicle position and displays it on the map. There are 2 methods to track the current vehicle position: autonomous (dead reckoning) and GPS* (satellite) navigation. Both navigation methods are used in conjunction with each other.

*: GPS (Global Positioning System)

5.99,2.198 6.667,2.198 6.667,2.198 6.667,3.188 false 5.063,1.813 5.99,1.813 5.99,1.813 5.99,3.396 false 5.99,3.396 2.927,3.396 2.927,3.396 2.927,3.042 false 0.063,0.656 1.083,0.865 1.021,0.208 10 false GPS Satellite 6.323,3.24 7.156,3.792 0.833,0.552 10 false Location by Autonomous Navigation 3.781,1.135 5.094,1.406 1.313,0.271 10 false Navigation System 3.969,1.698 5.167,2.094 1.198,0.396 10 false Gyro Sensor 4.219,2.406 4.74,2.688 0.521,0.281 10 false ECU 1.99,1.844 3.24,2.24 1.25,0.396 10 false Navigation Antenna Assembly 1.938,2.583 3.365,2.792 1.427,0.208 10 false Vehicle Speed Signal 0.073,2.01 1.188,2.375 1.115,0.365 10 false Location by GPS Navigation 0.417,5.26 1.625,5.625 1.208,0.365 10 false Navigation Antenna Assembly 0.5,4.552 1.604,4.917 1.104,0.365 10 false Receive Satellite Signals 0.344,6.656 1.771,6.865 1.427,0.208 10 false Vehicle Speed Signal 0.5,5.896 1.542,6.26 1.042,0.365 10 false Detect Vehicle Driving Distance 2.719,3.802 5.063,4.146 2.344,0.344 10 false Navigation Receiver Assembly 2.292,4.646 3.323,4.99 1.031,0.344 10 false Current Position Calculation 4.208,4.667 5.271,4.885 1.063,0.219 10 false GPS Correction 4.01,5.833 5.469,6.198 1.458,0.365 10 false Create Current Vehicle Position Tracking Data 2.198,6.604 3.302,6.99 1.104,0.385 10 false Direction Change Detection 2.281,7.354 3.271,7.563 0.99,0.208 10 false Gyro Sensor 2.25,7.833 3.219,8.208 0.969,0.375 10 false Map Matching Correction 3.917,7.844 5.531,8.219 1.615,0.375 10 false Map and Current Vehicle Position Data Processing 5.042,6.698 5.875,7.073 0.833,0.375 10 false Multi-display Screen 2.469,8.875 3.479,9.219 1.01,0.344 10 false Map Data 4.063,8.833 5.333,9.094 1.271,0.26 10 false Map Scrolling 4.063,9.156 5.396,9.5 1.333,0.344 10 false Map Scale Switching 0.115,0.125 1.135,0.333 1.021,0.208 12 false Example:

Operation	Description
Vehicle Position Calculation	The navigation receiver assembly calculates the current vehicle position (direction and current position) using the direction deviation signal from the gyro sensor and driving distance signal calculated from the vehicle speed signal and creates the driving route.
Map Display Processing	The navigation receiver assembly processes the vehicle position data, vehicle driving track and map data from the internal memory.
Map Matching	The map data from the internal memory is compared to the vehicle position and driving track data. Then, the vehicle position is matched with the nearest road.
GPS Correction	The vehicle position is matched to the position measured by the GPS. Then, the GPS measurement position data is compared with the vehicle position and driving track data. If the position is very different, the GPS measurement position is used.
Distance Correction	The vehicle speed signal includes errors caused by tire wear. Distance correction is performed to account for this. The navigation receiver assembly automatically offsets the signal to make up for the difference between it and the distance data of the map. The offset is automatically updated.

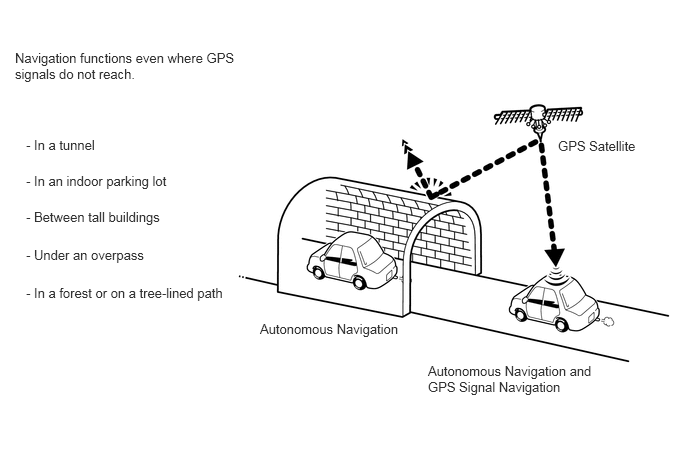

0.156,0.521 2.469,0.969 2.313,0.448 10 Navigation functions even where GPS signals do not reach. 2.708,3.344 4.354,3.552 1.646,0.208 10 Autonomous Navigation 4.458,3.781 6.354,4.5 1.896,0.719 10 Autonomous Navigation and GPS Signal Navigation 5.813,1.438 6.719,1.656 0.906,0.219 10 GPS Satellite 0.271,1.427 1.271,1.635 1,0.208 10 - In a tunnel 0.271,1.802 1.958,1.99 1.688,0.188 10 - In an indoor parking lot 0.271,2.177 1.938,2.406 1.667,0.229 10 - Between tall buildings 0.271,2.573 1.688,2.792 1.417,0.219 10 - Under an overpass 0.271,2.969 2.552,3.177 2.281,0.208 10 - In a forest or on a tree-lined path

HINT:: The combination of autonomous and GPS navigation makes it possible to display the vehicle position even when the vehicle is in places where GPS signals cannot be received. When only autonomous navigation is used, however, the mapping accuracy may slightly decrease.

Autonomous navigation

This method determines the relative vehicle position based on the driving track determined by the gyro sensor located in the navigation receiver assembly and the vehicle speed signal.

Gyro sensor

Used to calculate the direction by detecting angular velocity. It is located in the navigation receiver assembly.

ii.

Vehicle speed signal

Used to calculate the vehicle driving distance.

GPS^* navigation (Satellite navigation)

This method detects the absolute vehicle position using radio waves from GPS satellites.

*: GPS satellites were launched by the U.S. Department of Defense for military purposes.

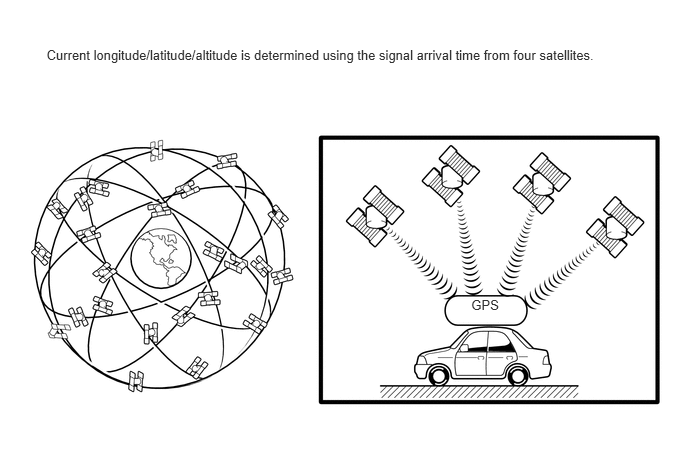

0.485,0.491 6.397,0.702 5.912,0.211 10 Current longitude/latitude/altitude is determined using the signal arrival time from four satellites. 4.909,3.095 5.319,3.310 0.410,0.214 10 GPS

Number of Satellites	Measurement	Description
2 or less	Measurement is impossible	Vehicle position cannot be obtained because the number of satellites is not enough.
3	2-dimensional measurement is possible	Vehicle position is obtained based on the current longitude and latitude. (This is less precise than 3-dimensional measurement.)
4	3-dimensional measurement is possible	Vehicle position is obtained based on the current longitude, latitude and altitude.

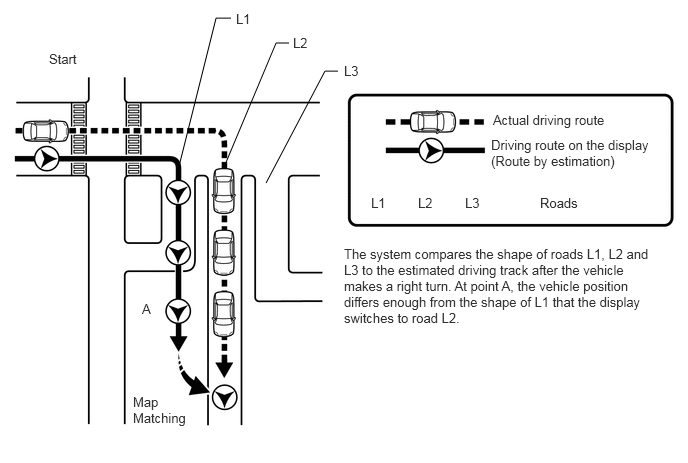

Map matching

The current driving route is calculated by autonomous navigation (according to the gyro sensor and vehicle speed signal) and GPS navigation. This information is then compared with possible road shapes from the map data in the internal memory and the vehicle position is set onto the most appropriate road.

1.854,1.771 2.25,0.188 2.25,0.188 2.406,0.188 false 2.333,1.74 2.875,0.448 2.875,0.448 3.01,0.448 false 2.771,1.906 3.385,0.74 3.385,0.74 3.521,0.74 false 1.479,3.135 1.604,3.323 0.125,0.188 10 A 0.51,0.531 0.927,0.729 0.417,0.198 10 Start 1.385,4.104 1.99,4.771 0.604,0.667 10 Map Matching 5.135,1.167 6.448,1.365 1.313,0.198 10 Actual driving route 5.115,1.427 6.854,1.813 1.74,0.385 10 Driving route on the display (Route by estimation) 5.625,2.031 6.104,2.25 0.479,0.219 10 Roads 3.865,2.031 4.083,2.25 0.219,0.219 10 L1 3.583,2.563 6.781,3.438 3.198,0.875 10 The system compares the shape of roads L1, L2 and L3 to the estimated driving track after the vehicle makes a right turn. At point A, the vehicle position differs enough from the shape of L1 that the display switches to road L2. 3.052,0.365 3.24,0.51 0.188,0.146 10 L2 2.458,0.115 2.656,0.26 0.198,0.146 10 L1 3.583,0.656 3.792,0.802 0.208,0.146 10 L3 4.354,2.031 4.573,2.25 0.219,0.219 10 L2 4.844,2.031 5.063,2.25 0.219,0.219 10 L3

Hand-writing Input Function

On the facility name (Pin Yin) search and the address/intersection search during a destination search, besides a keyboard input method, a hand-writing input method is supported. Characters can be entered by writing a character with a finger on the input zone of the multi-display. Additionally, this method has the character prediction function that predicts and displays potential matches when the user starts writing the character on the input zone.

Update the Map Database

The map database stored in the internal memory can be updated via the network.

ii.

The map database on the server is updated twice per year.

iii.

Two types of map database updates are available and the way to update differs for each area.

Update Type	Update Method	Update Area
Offline Update (for USB Memory)	Using the information downloaded to a USB memory device, the internal memory of the navigation receiver can be updated.	Entire stored map database or selected areas
Offline Update (for Smartphone Link)	Using the information downloaded to a smartphone, the internal memory of the navigation receiver can be updated when the smartphone is connected.	Entire stored map database or selected areas
Online Update	Performed by operating the multi-display of the navigation receiver assembly using Wi-Fi communication.	Selected areas

USB VIDEO SYSTEM FUNCTION OUTLINE

The No. 1 stereo jack adapter assembly is equipped with a USB connector. Connecting a USB device to the No. 1 stereo jack adapter assembly allows video files to be played. Not only is it possible to play video from a USB device with video functions, it is also possible to play MPEG-4 or H.264 video files that are stored on a USB device.

HINT:: Operation through the controls of a USB device cannot be performed while it is connected.

Playable video file standards

File extension	Compatible frame rates
.avi	Maximum 1080 p/30 fps
.mp4
.3gp

File names

Only files with an extension of ".avi", ".mp4", and ".3gp" can be recognized and played as MPEG-4 or H.264 files.

ii.

Save MPEG-4 or H.264 files with an extension of ".avi", ".mp4", or ".3gp".

NOTICE:: If non-MPEG-4 or non-H.264 files are saved with an extension of ".avi", ".mp4", or ".3gp", those files may be wrongly recognized as MPEG-4 or H.264 files and played. A loud noise may occur and damage to the speakers may result.

USB PICTURE SYSTEM FUNCTION OUTLINE

The No. 1 stereo jack adapter assembly is equipped with a USB connector. Connecting a USB device to the No. 1 stereo jack adapter assembly allows picture files to be displayed. Not only is it possible to display pictures from a USB device with picture functions, it is also possible to display JPEG, BMP, PNG, TIF or GIF picture files that are stored on a USB device.

HINT:: Operation through the controls of a USB device cannot be performed while it is connected.

Playable picture file standards

File extension	Compatible picture size
.jpeg	Maximum 5248 x 3936 pixels
.bmp
.png
.tif
.gif

File names

Only files with an extension of ".jpeg", ".bmp", ".png", ".tif", and ".gif" can be recognized and played as JPEG, BMP, PNG, TIF or GIF files.

ii.

Save JPEG, BMP, PNG, TIF or GIF files with an extension of ".jpeg", ".bmp", ".png", ".tif", or ".gif".

NOTICE:: If non-JPEG, non-BMP, non-PNG, non-TIF or non-GIF files are saved with an extension of ".jpeg", ".bmp", ".png", ".tif", or ".gif", those files may be wrongly recognized as JPEG, BMP, PNG, TIF or GIF files and played.

USB AUDIO SYSTEM FUNCTION OUTLINE

The No. 1 stereo jack adapter assembly is equipped with a USB connector. Connecting a USB device to the No. 1 stereo jack adapter assembly allows music files to be played. Not only is it possible to play music from a USB device with audio functions, it is also possible to play MP3, WMA, AAC, WAV (LPCM), FLAC or APE music files that are stored on a USB device.

HINT:: Operation through the controls of a USB device cannot be performed while it is connected.

USB audio system compatible devices

USB device

The following device formats can be used:

Compatible USB device formats

USB communication format: USB 2.0 HS (480 Mbps) and FS (12 Mbps)

File format: FAT32 (Windows)

Class: Mass storage class

MP3, WMA, AAC, WAV (LPCM), FLAC or APE files written to a USB device with any format other than those listed above may not be played correctly, and their names and folder names may not be displayed correctly.

Items related to standards and limitations are as follows:

Maximum directory hierarchy: 8 levels

Maximum number of folders in device: 2000 (including the root folder)

Maximum number of files in device: 2000

ii.

"iPod"

"iPhone", "iPod nano" and "iPod touch" are trademarks of Apple Inc., registered in the U.S. and other countries.

The following "iPhone", "iPod nano" and "iPod touch" devices can be used with this system.

Made for:

"iPod touch" (6th generation)

"iPod touch" (5th generation)

"iPod nano" (7th generation)

"iPhone 5s"

"iPhone 6"

"iPhone 6 Plus"

"iPhone SE"

"iPhone 6s"

"iPhone 6s Plus"

"iPhone 7"

"iPhone 7 Plus"

"iPhone 8"

"iPhone 8 Plus"

"iPhone X"

"iPhone XR"

"iPhone XS"

"iPhone XS Max"

HINT:: Depending on differences between models or software versions, etc., some models might be incompatible with this system.

FILE INFORMATION OUTLINE

Playable MP3 file standards

Compatible standard	MPEG1 (Layer3), MPEG2 (Layer3), MPEG2 LSF (Layer3)
Compatible sampling frequency	· MPEG1 (Layer3): 32, 44.1, 48 (kHz) · MPEG2 (Layer3): 32, 44.1, 48 (kHz) · MPEG2 LSF (Layer3): 16, 22.05, 24 (kHz)
Compatible bit rate	· MPEG1 (Layer3): 32 to 320 (kbps) · MPEG2 (Layer3): 32 to 320 (kbps) · MPEG2 LSF (Layer3): 8 to 160 (kbps) · Compatible with VBR
Compatible channel mode	Stereo, joint stereo, dual channel, monaural

Playable WMA file standards

Compatible standard	Ver. 7, 8, and 9
Compatible sampling frequency	32, 44.1, 48 (kHz)
Compatible bit rate (Only compatible with 2-channel playback)	· Ver. 7, 8: CBR 48 to 192 (kbps) · Ver. 9: CBR 48 to 320 (kbps) · Compatible with VBR
Compatible channel mode	Stereo, monaural

Playable AAC file standards

Compatible standard	AAC-LC
Compatible sampling frequency	11.025/12/16/22.05/24/32/44.1/48 (kHz)
Compatible bit rate	· 16 to 320 (kbps) · Compatible with VBR
Compatible channel mode	5.1 Channels or less

Playable WAV (LPCM) file standards*

Compatible standard	Linear-PCM
Compatible sampling frequency	8/11.025/12/16/22.05/24/32/44.1/48/88.2/96/176.4/192 (kHz)
Compatible bit rate	16/24 (bit)
Compatible channel mode	Mono, Stereo

*: Files with a sample rate higher than 48kHz are down-converted to 48kHz/16bit.

Playable FLAC file standards*

*: Files with a sample rate higher than 48kHz are down-converted to 48kHz/24bit.
Compatible sampling frequency	8/11.025/12/16/22.05/24/32/44.1/48/88.2/96/176.4/192 (kHz)
Compatible bit rate	16/24 (bit)

Playable APE file standards

Compatible sampling frequency	8/11.025/12/16/22.05/24/32/44.1/48/88.2/96/176.4/192 (kHz)
Compatible bit rate	16/24 (bit)

ID3 tag, WMA tag, AAC tag, APE tag and TAG comment

Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.

HINT:: This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3.)

ii.

Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.

iii.

Additional text information called an AAC tag can be input to AAC files. Information such as song titles and artist names can be stored.

iv.

Additional text information called an APE tag can be input to APE files. Information such as song titles and artist names can be stored.

Additional text information called a TAG can be input to WAV (LPCM), FLAC files. Information such as song titles and artist names can be stored.

Usable media

Only USB devices can be used to play MP3, WMA, AAC, WAV (LPCM), FLAC or APE files.

File names

Only files with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac" and ".ape" can be recognized and played as MP3, WMA, AAC, WAV (LPCM), FLAC or APE files.

ii.

Save MP3, WMA, AAC, WAV (LPCM), FLAC or APE files with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac" or ".ape"

NOTICE:: If non-MP3, non-WMA, non-AAC, non-WAV (LPCM), non-FLAC or non-APE files are saved with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac" or ".ape", those files may be wrongly recognized as MP3, WMA, AAC, WAV (LPCM), FLAC, or APE files and played. A loud noise may occur and damage to the speakers may result.

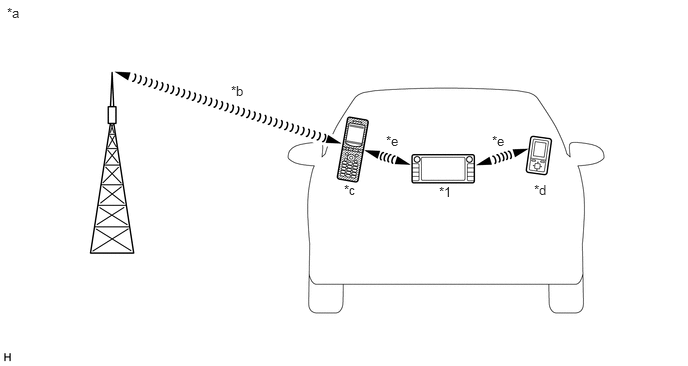

"Bluetooth" OUTLINE

2.406,0.865 2.594,1.031 0.188,0.167 10 false *b 3.583,1.896 3.771,2.063 0.188,0.167 10 false *c 4.573,1.917 4.76,2.083 0.188,0.167 10 false *1 5.563,1.896 5.75,2.063 0.188,0.167 10 false *d 4.021,1.385 4.208,1.552 0.188,0.167 10 false *e 5.125,1.385 5.313,1.552 0.188,0.167 10 false *e 0.073,0.052 0.26,0.219 0.188,0.167 10 false *a

*1	Navigation Receiver Assembly (Built-in "Bluetooth" Antenna)	-	-
*a	Example	*b	Cellular Network
*c	Cellular Phone ("Bluetooth" Compatible Type)	*d	Portable Audio Player ("Bluetooth" Compatible Type)
*e	"Bluetooth" Wireless Connection	-	-

"Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

"Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.

HINT:: The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

Hands-free function

The "Bluetooth" built-in navigation receiver assembly and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

*: Some versions of "Bluetooth" compatible cellular phones may not function properly.

ii.

The hands-free function uses a "Bluetooth" wireless connection. A "Bluetooth" wireless connection can be affected by uncertain elements, such as vehicle location, time of day, etc. Therefore, problems related to establishing connection may be caused temporarily by "Bluetooth" connection conditions. It is necessary to check the frequency of occurrence, connection conditions using another cellular phone, etc. when performing diagnosis.

iii.

Compatible hands-free devices

for 12.1 Inch Display
Required "Bluetooth" specifications	Ver. 4.0 or higher
Compatible profiles	· HFP (Hands-Free Profile) Ver. 1.5 or higher1 · PBAP (Phone Book Access Profile) Ver. 1.0 or higher1 · SPP (Serial Port Profile) Ver. 1.1 or higher*2
Maximum number of hands-free devices that can be registered (including audio devices)	5

for 9 Inch Display
Required "Bluetooth" specifications	Ver. 4.2 or higher
Compatible profiles	· HFP (Hands-Free Profile) Ver. 1.7 or higher1 · PBAP (Phone Book Access Profile) Ver. 1.2 or higher1 · SPP (Serial Port Profile) Ver. 1.2 or higher*2
Maximum number of hands-free devices that can be registered (including audio devices)	5

*1: This profile is necessary when using the hands-free function.

*2: This profile is necessary when using the G-BOOK system.

HINT:: The amount of remaining battery charge displayed on the navigation receiver assembly may be different from that of the "Bluetooth" device.

"Bluetooth" audio function

The "Bluetooth" built-in navigation receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the navigation receiver assembly.

*: Some versions of "Bluetooth" compatible audio players may not be able to be connected via the "Bluetooth" function, or music may play, but functions available using the navigation receiver assembly may be limited.

ii.

Compatible "Bluetooth" audio devices

for 12.1 Inch Display
Required "Bluetooth" specifications	Ver. 4.0 or higher
Compatible profiles	· A2DP (Advanced Audio Distribution Profile) Ver. 1.2 or higher · AVRCP (Audio/Video Remote Control Profile) Ver. 1.4 or higher
Maximum number of audio devices that can be registered (including hands-free devices)	5

for 9 Inch Display
Required "Bluetooth" specifications	Ver. 4.2 or higher
Compatible profiles	· A2DP (Advanced Audio Distribution Profile) Ver. 1.3 or higher · AVRCP (Audio/Video Remote Control Profile) Ver. 1.6 or higher
Maximum number of audio devices that can be registered (including hands-free devices)	5

HINT:: The amount of remaining battery charge displayed on the navigation receiver assembly may be different from that of the "Bluetooth" device.

RADIO DESCRIPTION

Radio frequency band

Radio broadcasts use the radio frequency bands shown in the table below.

0.677,0.25 1.469,0.458 0.792,0.208 10 Frequency 1.875,0.25 2.417,0.417 0.542,0.167 10 30 kHz 5.25,0.25 5.833,0.417 0.583,0.167 10 30 MHz 4.125,0.25 4.677,0.417 0.552,0.167 10 3 MHz 2.979,0.25 3.635,0.417 0.656,0.167 10 300 kHz 6.365,0.25 6.979,0.417 0.615,0.167 10 300 MHz 0.667,0.833 1.458,1.042 0.792,0.208 10 Designation 0.667,1.313 1.448,1.521 0.781,0.208 10 Radio wave 0.667,1.792 1.458,2 0.792,0.208 10 Modulation 2.583,0.833 2.813,1.01 0.229,0.177 10 LF 3.688,0.833 3.917,1.01 0.229,0.177 10 MF 4.854,0.833 5.083,1.01 0.229,0.177 10 HF 5.896,0.833 6.219,1.01 0.323,0.177 10 VHF 3.49,1.313 3.948,1.5 0.458,0.188 10 AM 5.75,1.313 5.979,1.49 0.229,0.177 10 FM 5.552,1.75 6.99,2 1.438,0.25 10 Frequency modulation 3.083,1.75 4.521,2.063 1.438,0.313 10 Amplitude modulation 0.344,2.292 1.594,2.5 1.25,0.208 10 LF: Low Frequency 5.26,2.292 6.979,2.5 1.719,0.208 10 VHF: Very High Frequency 3.74,2.292 5.063,2.5 1.323,0.208 10 HF: High Frequency 1.865,2.292 3.5,2.5 1.635,0.208 10 MF: Medium Frequency

Service area

0.938,2.073 1.104,2.229 0.167,0.156 10 *a 1.771,3.073 1.938,3.229 0.167,0.156 10 *c 1.354,2.563 1.521,2.719 0.167,0.156 10 *b

*a	FM (Stereo)
*b	FM (Monaural)
*c	AM

The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

Radio reception problems

HINT:: In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

2.375,0.385 2.958,0.708 2.958,0.708 2.958,0.896 false 0.125,0.094 0.333,0.26 0.208,0.167 10 *a 2.896,0.938 3.104,1.104 0.208,0.167 10 *b

*a	Phasing
*b	Ionosphere

Phasing

AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

ii.

0.103,0.084 0.298,0.237 0.194,0.153 10 *a

Multipath

Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

iii.

0.112,0.045 0.282,0.229 0.17,0.184 10 *a

Fade Out

Fade out

Fade out is caused by objects (buildings, mountains and other large obstructions) that deflect part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to be deflected.

Noise problem

Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.

Radio Frequency	Noise Occurrence Condition	Presumable Cause
AM	Noise occurs in a specific area	Foreign noise
	Noise occurs when listening to an intermittent broadcast	An identical program transmitted from multiple towers can cause noise where the signals overlap
	Noise occurs only at night	Signal phasing
FM	Noise occurs while driving in a specific area	Multipath resulting from a change in FM frequency

"Baidu CarLife" FUNCTION OUTLINE (w/ "Baidu CarLife" Function)

The "Baidu CarLife" function is a function that enables the head unit to operate applications on a smartphone by connecting the smartphone to the head unit using a dedicated cable.

HINT:: ·

Refer to the owner's manual included with the device for information about "Baidu CarLife" support.

·

Some applications have a display restriction in consideration of safe driving.

COMMUNICATION SYSTEM

CAN Communication Outline

The navigation system uses CAN communication between the navigation receiver assembly and ECUs.

COMMUNICATION BASED VOICE RECOGNITION FUNCTION OUTLINE

There are two types of voice recognition; the voice recognition function uses voice recognition data stored in the onboard device. The other is communication based and uses voice recognition data sent from communication with the telematics transceiver as audio signals to be stored at the center.

HINT:: Refer to the Telematics System for information about communication based voice recognition.; Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>SYSTEM DESCRIPTION202007,202101,_56,_080753,_0397006,RM100000001O27K,202101,202104,_56,_080753,_0397006,RM100000001TFHT,202104,202205,_56,_080753,_0397006,RM100000001W0C4,202205,202211,_56,_080753,_0397006,RM1000000022NR5,202211,202304,_56,_080753,_0397006,RM10000000267JM,202304,999999,_56,_080753,_0397006,RM100000002B7WW,

QQ MUSIC FUNCTION OUTLINE

QQ Music is a streaming application managed by Tencent.

Refer to http://y.qq.com for details.

Ximalaya FM FUNCTION OUTLINE

Ximalaya FM is a shared platform of music content managed by Ximalaya.com.

Refer to https://www.ximalaya.com for details.

Car-Home Link FUNCTION OUTLINE (w/ Car-Home Link Function)

a. Using the voice recognition function or touch function, smart household appliances can be operated remotely.

NOTICE:: The Car-Home Link Function does not support smart household appliances that may cause a fire if operated remotely.
